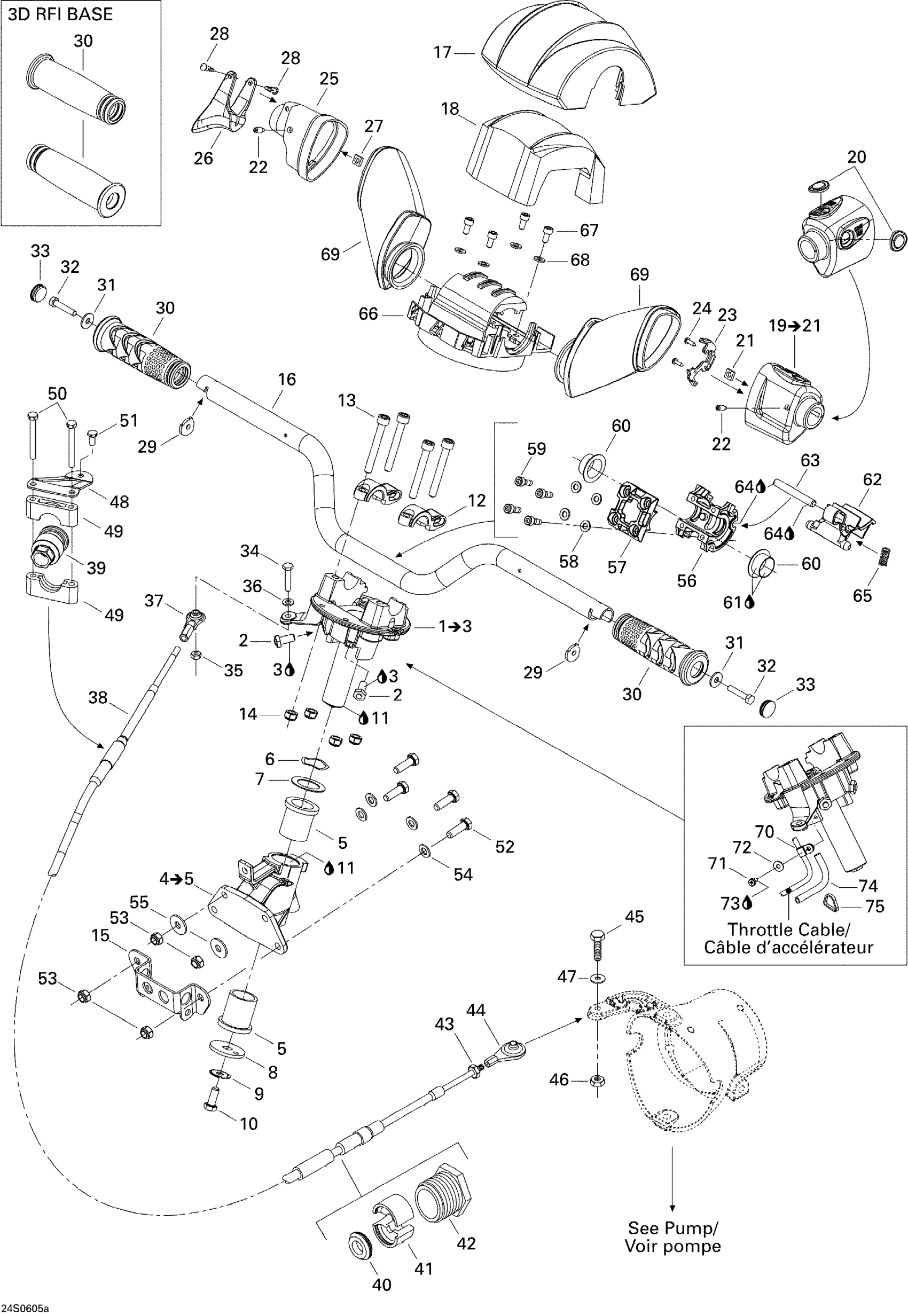

Sea-doo 3D 947 DI, 2006 Steering System 1 Diagram

#

Description
Price

1

DIRECTION ROD ASS'Y - Call your local BRP dealership | Includes 1 to 3

277001399

Unavailable

2

LOW SPEED CONTROL ACTUATOR - Call your local BRP dealership

278002030

Unavailable

3

ADHESIVE LOCTITE 425 20ML - Call your local BRP dealership

219704457

Unavailable

4

PILLOW BLOCK ASS'Y - Call your local BRP dealership | Includes 4 to 5

277001396

Unavailable

5

BUSHING - Call your local BRP dealership

293900062

Unavailable

6

Spring Washer

211200008

Unavailable

7

SHIM - Call your local BRP dealership

293350006

Unavailable

8

RETAINER WASHER - Call your local BRP dealership

277001262

Unavailable

9

WASHER - Call your local BRP dealership

277001263

Unavailable

10

HEX. SCREW M8 X 20 - Call your local BRP dealership

207182060

Unavailable

11

Synthetic Grease, 400 G

293550010

Unavailable

12

STEERING CLAMP - Call your local BRP dealership

277001253

Unavailable

13

Socket Head Screw M8 X 60

205086060

$3.38

14

Hex. Elastic Nut M8

232581600

Unavailable

15

LATCH SUPPORT - Call your local BRP dealership

269001135

Unavailable

16

HANDLE BAR - Call your local BRP dealership

277001456

Unavailable

17

STEERING PAD - Call your local BRP dealership

277001212

Unavailable

18

PAD FOAM - Call your local BRP dealership

277001343

Unavailable

19

HOUSING ASS'Y - Call your local BRP dealership | Includes 19 to 21

277001257

Unavailable

20

Switch Knob

277000306

Unavailable

21

SQUARE NUT M6 - Call your local BRP dealership

232860600

Unavailable

22

Socket Head Screw M6 X 16

250000036

Unavailable

23

Retainer Plate

277001213

Unavailable

24

SCREW-TAPP.PAN HD.PH.DIN.7981C-A2 - Call your local BRP dealership

209631360

Unavailable

25

THROTTLE HOUSING ASS'Y - Call your local BRP dealership

277000872

Unavailable

26

THROTTLE HANDLE - Call your local BRP dealership

277001261

Unavailable

27

SQUARE NUT M6 - Call your local BRP dealership

232860600

Unavailable

28

PIN - Call your local BRP dealership

277000381

Unavailable

29

Insert Grip Handle

277001863

Unavailable

30

Handle Grip, Slate Grey

277001336

Unavailable

31

Flat Washer M6, Stainless

234062600

Unavailable

32

Hex. Screw M6 X 30, Scotch Grip

250000002

Unavailable

33

Black, Cap

277000203

Unavailable

34

Hex. Screw M6 X 30

207063060

Unavailable

35

Hex. Elastic Stop Nut M6

232561600

$0.92

36

Stainless Flat Washer M6

234061600

$0.25

37

Ball Joint

277000775

Unavailable

38

Steering Cable

277001414

Unavailable

39

Ajustment Knob

277000782

Unavailable

40

Rubber Washer

293830063

Unavailable

41

Half Ring

277001527

Unavailable

42

Steering Cable Lock This part replaces 277000784.

277001729

Unavailable

43

Hex. Nut 1/4"-28

211100056

Unavailable

44

Ball Joint

277000775

Unavailable

45

Hex. Screw M6 X 35

207063560

Unavailable

46

Hex. Elastic Stop Nut M6

232561600

$0.92

47

Stainless Flat Washer M6

234061600

$0.25

48

Cable Support

277000738

Unavailable

49

SUPPORT THRUST - Call your local BRP dealership This part replaces 277000162.

277001528

Unavailable

50

Hex. Screw M6 X 55, Scotch Grip | Except Europe

207265560

Unavailable

51

Hex. Screw M6 X 12, Scotch Grip

207361260

Unavailable

52

HEX. SCREW M8 X 25 - Call your local BRP dealership

207182560

Unavailable

53

Hex. Elastic Nut M8

232581600

Unavailable

54

Stainless, Flat Washer 8 mm

234081600

Unavailable

55

Flat Washer 8 mm, Stainless

234082600

Unavailable

56

Block Indexing

277001264

Unavailable

57

Block Fixing Anodized

277001298

Unavailable

58

Stainless Flat Washer M6

234061600

$0.25

59

Socket Head Screw M6 X 16, Scotch Grip

205561660

Unavailable

60

FLANGE BUSHING - Call your local BRP dealership

277001214

Unavailable

61

Synthetic Grease, 400 G

293550010

Unavailable

62

Ajustment Lever

277001217

Unavailable

63

ROD LOCK - Call your local BRP dealership

277001266

Unavailable

64

Synthetic Grease, 400 G

293550010

Unavailable

65

Compression Spring

277001267

Unavailable

66

PAD SUPPORT HANDLE - Call your local BRP dealership

277001254

Unavailable

67

Socket Head Screw M6 X 12, Scotch Grip

205561260

Unavailable

68

Stainless Flat Washer M6

234061600

$0.25

69

COVER HANDLE - Call your local BRP dealership

277001313

Unavailable

70

OPEN CLAMP - Call your local BRP dealership

293850083

Unavailable

71

PHILLIPS SCREW M4 X 8 - Call your local BRP dealership

208640860

Unavailable

72

Flat Washer 4 mm, Stainless

234042600

Unavailable

73

Loctite 243, 10 ml

293800060

$20.77

74

Tubing 6 Mm 3000Mm Long

219704425

$13.14

75

Tie Wrap 142 mm

293750002

Unavailable
