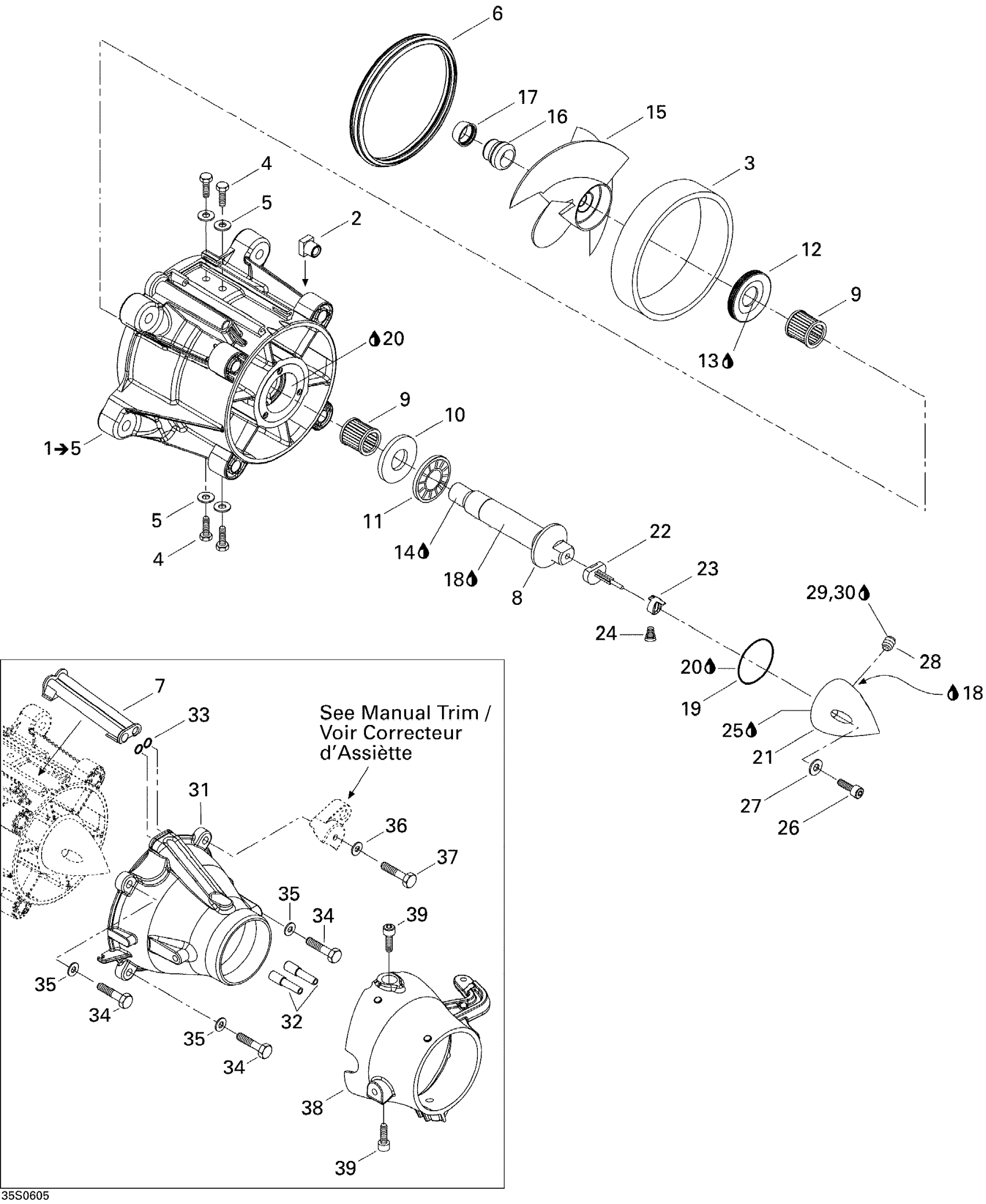

Sea-doo 3D 947 DI, 2006 Pump Diagram

#

Description
Price

1

HOUSING ASSEMBLY - Call your local BRP dealership | Includes 1 to 5

267000268

Unavailable

2

Square Nut M8

211100033

$16.39

3

Wear Ring

271000653

$54.45

4

Hex. Plastite Screw #10 X 3/8"

250000040

$0.93

5

Flat Washer M5, Stainless

234051600

$0.73

6

Neoprene Seal

293200087

$10.55

7

Water Outlet

271000785

$3.49

8

Impeller Shaft

271000965

$108.18

9

Needle Bearing

293350017

$24.60

10

THRUST WASHER - Call your local BRP dealership

293350020

Unavailable

11

Thrust-Bearing

293350022

$41.01

12

Oil Seal

267000094

$20.12

13

Était/Was 293800038 Loctite 518, 50 ml

219704456

$48.48

14

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

15

Impeller Ass’Y

271000920

$364.15

16

Impeller Boot

271000516

$7.88

17

Impeller Ring

271000517

$7.88

18

JET PUMP OIL SYNTHETIC 6 FL OZ / 178 ML | 4X4

779221

$15.64

19

O-Ring

293300011

$7.42

20

Synthetic Grease, 400 G

293550010

Unavailable

21

IMPELLER COVER - Call your local BRP dealership

267000267

Unavailable

22

PUSHER ASS?Y - Call your local BRP dealership

271001124

Unavailable

23

SLIDER - Call your local BRP dealership

271001107

Unavailable

24

SPRING - Call your local BRP dealership

271001108

Unavailable

25

Synthetic Grease, 400 G

293550010

Unavailable

26

Socket Head Screw M6 X 25, Scotch Grip

205562560

$1.96

27

Stainless Flat Washer M6

234061600

$0.28

28

Pipe Plug Socket Head 1/8-27 Npt

211500001

$8.06

29

Was 293800013 Loctite 56765

219704454

$63.40

30

Was 293800041 Loctite Primer 7649

219704458

$41.99

31

VENTURI, BLACK - Call your local BRP dealership

267000187

Unavailable

32

Siphon Tube

271001133

$8.09

33

O-Ring

293300013

$6.54

34

Hex. Screw M8 X 50, Scotch Grip

207285060

$1.96

35

Stainless, Flat Washer 8 mm

234081600

$0.52

36

Flat Washer 8 mm, Stainless

234082600

$2.27

37

HEX. SCREW M8 X 65, SCOTCH GRIP - Call your local BRP dealership

207286560

Unavailable

38

STEERING NOZZLE, BLACK - Call your local BRP dealership

267000081

Unavailable

39

Socket Head Screw M8 X 10, Scotch Grip

211000127

$3.52
