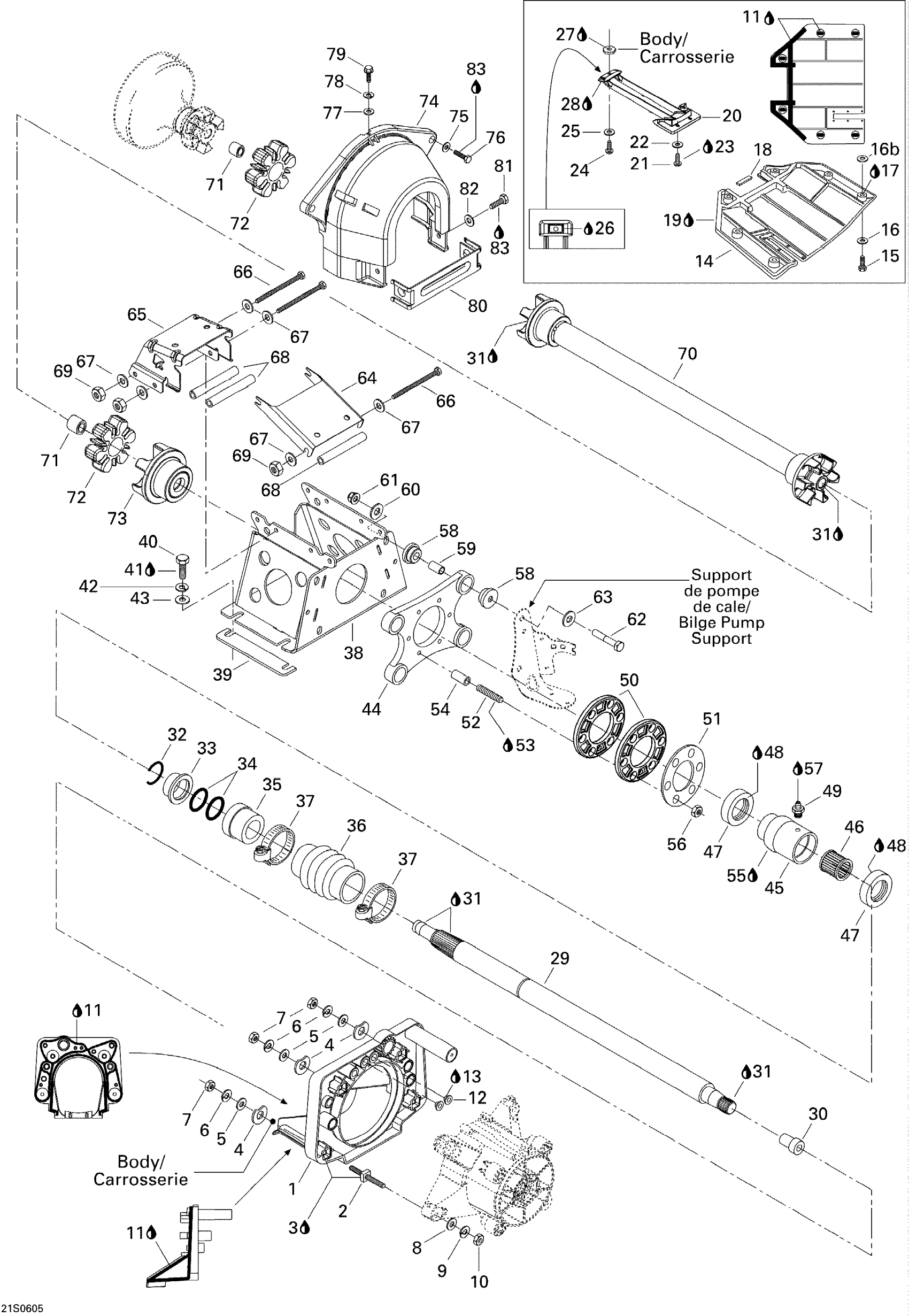

Sea-doo 3D 947 DI, 2006 Propulsion Diagram

#

Description
Price

1

Pump Support

271001531

Unavailable

2

Square Stud

250300022

Unavailable

3

Était/Was 293800038 Loctite 518, 50 ml

219704456

Unavailable

4

Shim 0.3 mm

272000053

Unavailable

5

Flat Washer 10 mm, Stainless

234002600

Unavailable

6

Helicoidal Lock Washer M10 | XT Models

234101601

Unavailable

7

HEX. NUT M10 - Call your local BRP dealership

232001600

Unavailable

8

Flat Washer 10 mm, Stainless

234002600

Unavailable

9

Helicoidal Lock Washer M10 | XT Models

234101601

Unavailable

10

HEX. NUT M10 - Call your local BRP dealership

232001600

Unavailable

11

Was 293800066 Sealant Loctite 5900, 300 ml

219704460

Unavailable

12

Watertight Seal

293250084

Unavailable

13

Était/Was 293800038 Loctite 518, 50 ml

219704456

Unavailable

14

RIDING PLATE, BLACK - Call your local BRP dealership

271001453

Unavailable

15

Hex. Screw M8 X 30, Scotch Grip

207383060

Unavailable

16

Stainless, Flat Washer 8 mm

234081600

Unavailable

16b

Flat Washer 8 mm, Stainless

234082600

Unavailable

17

Silicone Sealant 51388, 300 ml

296000309

Unavailable

18

Neoprene Seal (1PAC=3M)

219704364

$22.72

19

Was 293800066 Sealant Loctite 5900, 300 ml

219704460

Unavailable

20

Pump Grate, Black

271001525

Unavailable

21

Hex. Screw M6 X 16

207161660

Unavailable

22

Stainless Flat Washer M6

234061600

$0.25

23

Loctite 271, 10 ml

293800005

Unavailable

24

Hex. Screw M8 X 30, Scotch Grip

207383060

Unavailable

25

Stainless, Flat Washer 8 mm

234081600

Unavailable

26

Was 293800066 Sealant Loctite 5900, 300 ml

219704460

Unavailable

27

Silicone Sealant 51388, 300 ml

296000309

Unavailable

28

Was 293800066 Sealant Loctite 5900, 300 ml

219704460

Unavailable

29

DRIVE SHAFT - Call your local BRP dealership

271001553

Unavailable

30

DRIVE SHAFT PLUG - Call your local BRP dealership

272000019

Unavailable

31

Synthetic Grease, 400 G

293550010

Unavailable

32

C-CLIP - Call your local BRP dealership

272000135

Unavailable

33

Support Ring

272000064

Unavailable

34

O-Ring

293300032

Unavailable

35

Carbon Ring

272000770

Unavailable

36

BELLOWS - Call your local BRP dealership

272000184

Unavailable

37

Norma Clamp

293650075

Unavailable

38

SHAFT SUPPORT - Call your local BRP dealership

271001457

Unavailable

39

Shim

272000166

Unavailable

40

Hex. Screw M8 X 30

207183060

Unavailable

41

Loctite 243, 10 ml

293800060

$20.77

42

Lock Washer 8 mm, Stainless

234181601

Unavailable

43

Stainless, Flat Washer 8 mm

234081600

Unavailable

44

Not Available As Spare Part - Friction Washer

Unavailable

45

JOINT SUPPORT - Call your local BRP dealership

272000012400

Unavailable

46

NEEDLE BEARING SCE1416-L271/STD#E - Call your local BRP dealership

293350007

Unavailable

47

DOUBLE LIP SEAL - Call your local BRP dealership

293200012

Unavailable

48

Était/Was 293800038 Loctite 518, 50 ml

219704456

Unavailable

49

GREASE FITTING - Call your local BRP dealership

293550008

Unavailable

50

ALIGNMENT WASHER - Call your local BRP dealership

272000049400

Unavailable

51

Fixation Washer

272000051

Unavailable

52

STUD M6 X 30 - Call your local BRP dealership

211300016

Unavailable

53

Loctite 271, 10 ml

293800005

Unavailable

54

SPACER - Call your local BRP dealership

271001319

Unavailable

55

Synthetic Grease, 400 G

293550010

Unavailable

56

Hex. Elastic Stop Nut M6

232561600

$0.92

57

Synthetic Grease, 400 G

293550010

Unavailable

58

Rubber Bushing

293830031

Unavailable

59

Bushing

274000114

Unavailable

60

Stainless, Flat Washer 8 mm

234081600

Unavailable

61

Hex. Elastic Nut M8

232581600

Unavailable

62

Hex. Screw M8 X 45

207084560

Unavailable

63

Flat Washer 8 mm, Stainless

234082600

Unavailable

64

Shaft Guard

271001458

Unavailable

65

Deck Support

291002030

Unavailable

66

HEX. SCREW M6 X 120 - Call your local BRP dealership

230062060

Unavailable

67

Flat Washer M6, Stainless

234062600

Unavailable

68

SPACER - Call your local BRP dealership

291000757

Unavailable

69

Elastic Stop Nut M6, Brass

232561200

Unavailable

70

TRANSMISSION SHAFT ASSY - Call your local BRP dealership

272000154

Unavailable

71

SNAP BUSHING - Call your local BRP dealership

293900016

Unavailable

72

RUBBER ADAPTOR - Call your local BRP dealership

293830067

Unavailable

73

COUPLER ASSY - Call your local BRP dealership

272000158

Unavailable

74

FLYWHEEL GUARD - Call your local BRP dealership

271001541

Unavailable

75

Flat Washer 8 mm, Stainless

234082600

Unavailable

76

HEX. SCREW M8 X 25 - Call your local BRP dealership

207182560

Unavailable

77

Flat Washer M5, Stainless

234051600

$0.64

78

Helical Lock Washer M5

234151601

Unavailable

79

HEX. PLASTITE SCREW M5.28 X 16 - Call your local BRP dealership

243041660

Unavailable

80

FRONT LOWER GUARD - Call your local BRP dealership

291001228

Unavailable

81

Hex. Screw M6 X 16

207161660

Unavailable

82

Flat Washer M6, Stainless

234062600

Unavailable

83

Loctite 243, 10 ml

293800060

$20.77
