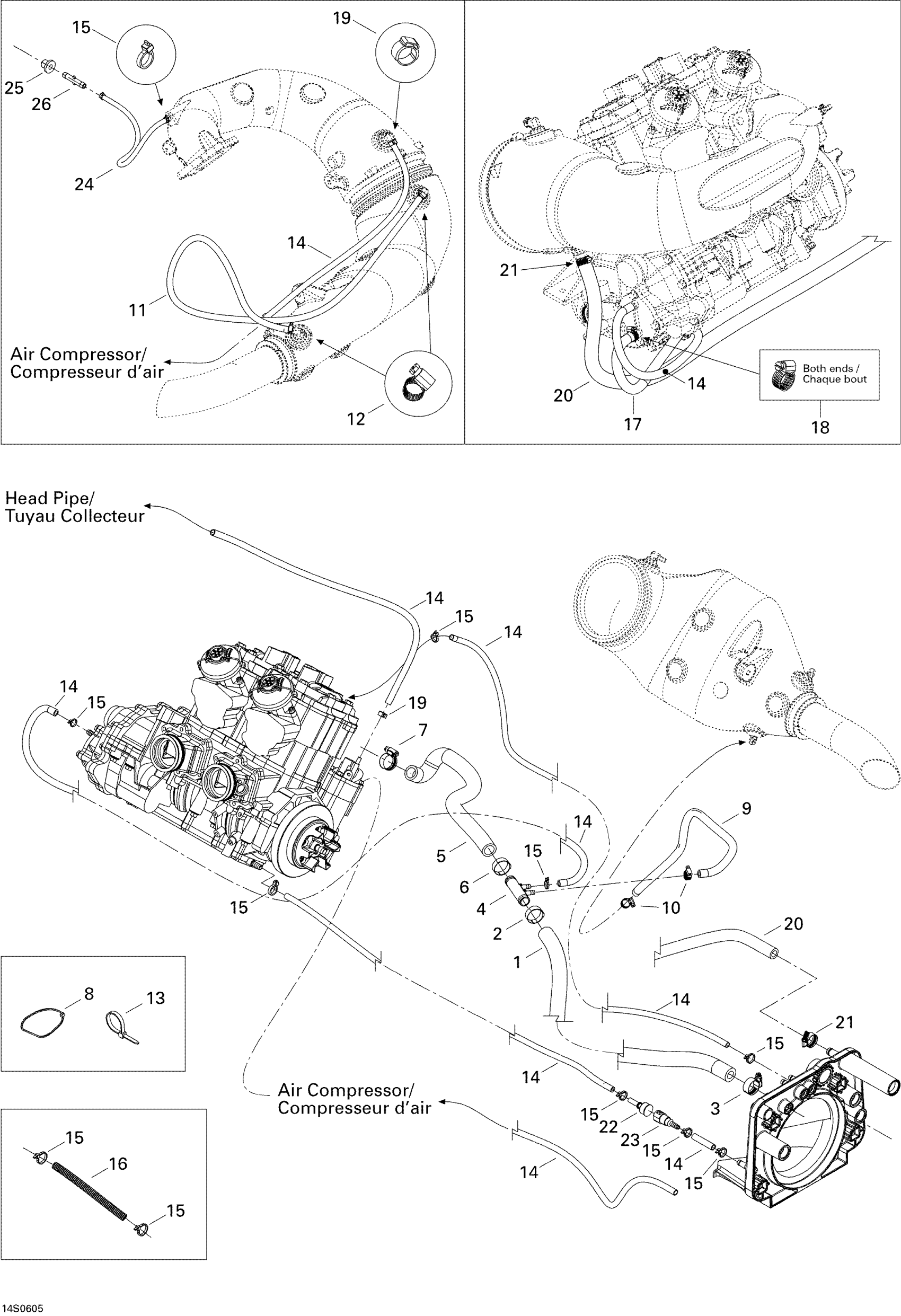

Sea-doo 3D 947 DI, 2006 Cooling System Diagram

#

Description
Price

1

Hose 19.0Mm. 2000Mm Long

219704361

$50.74

2

Oetiker Gear Clamp

293650165

$4.32

3

Tridon Gear Clamp

293650051

$3.61

4

DOUBLE FITTING - Call your local BRP dealership

293710102

Unavailable

5

FORMED HOSE - Call your local BRP dealership

276000157

Unavailable

6

Oetiker Gear Clamp

293650165

$4.32

7

Tridon Gear Clamp

293650019

$4.81

8

Tie Wrap 368 mm

293750008

$0.85

9

HOSE 5/16 - Call your local BRP dealership

275500548

Unavailable

10

Tridon Gear Clamp

293650170

$1.74

11

HOSE 5/16 - Call your local BRP dealership

275500548

Unavailable

12

Tridon Gear Clamp

293650170

$1.74

13

Tie-Rap 180 mm

414115200

$0.09

14

Polyurethane Hose, 8 Mm 3000Mm Long

219704412

$27.27

15

Tie Wrap 94 mm | 4X4

293750001

$0.83

16

Was 409901800 Tubing (13 mm)

219704400

$9.40

17

FORMED HOSE - Call your local BRP dealership

275500672

Unavailable

18

Tridon Gear Clamp

293650171

$2.46

19

Oetiker Clamp

293650042

$1.40

20

Was 276000001 Hose 12.5 mm

219704394

$42.87

21

Tridon Gear Clamp

293650172

$2.68

22

Quick Male Fitting

275500435

Unavailable

23

QUICK FEMALE FITTING - Call your local BRP dealership

275500436

Unavailable

24

Hose 6 Mm 15000Mm Long

219704360

$104.62

25

Grommet

293720029

$1.13

26

Straight Fitting

293710039

$7.37
