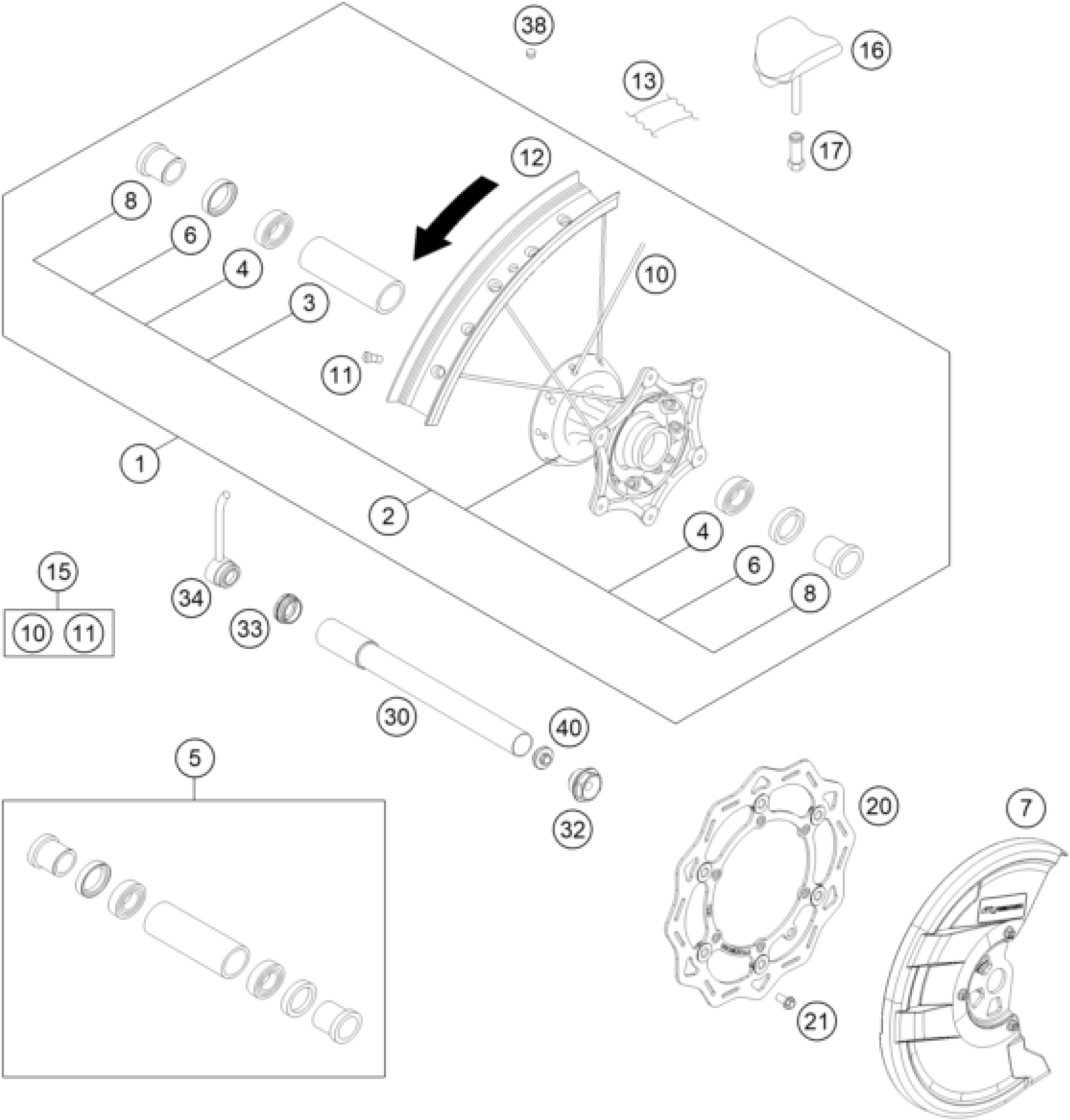

KTM 350 XCF-W SIX DAYS 2015 FRONT WHEEL Diagram

#

Description
Price

10

SPOKE M4,5X226- 21'' BLACK 12

7710907122630

Unavailable

11

Spoke nipple M4.5 AL

77109072000

Unavailable

12

RIM FRONT 1,6X21'' BLACK

7810907010030

Unavailable

13

Tube protector 21"

50309073000

Unavailable

2

FRONT WHEEL HUB CPL.

77709010044

Unavailable

3

BEA.SPACERTUBE 35X2 L=79,4 03

54809011000

Unavailable

5

FRONT WHEEL REP. KIT

78009015000

Unavailable

1

FRONT WHEEL CPL.1.6X21''GIANT6

7810900144430

Unavailable

4

Grooved ball bearing 6906

0625069068

Unavailable

6

Radial shaft seal 35X47X7 TC

0760354771

Unavailable

8

SPACER BUSHING F. FR. WHEEL 08

78009012000

Unavailable

16

RIM LOCK 1,60''

78109090000

Unavailable

17

NUT FOR WHEEL HOLDER

77110090050

Unavailable

20

BRAKE DISC FRONT D=260MM

77709160000

Unavailable

21

SPECIAL SCREW M6X13 WS=8 10.9

59009062013

Unavailable

30

WHEEL SPIN.FR. D=26 M24x1,5 07

77309081000

Unavailable

32

SPINDLE SCREW M24X1,5 WS=27 03

54809082000

Unavailable

33

PLUG BUSHING WS=27 03

54809081050

Unavailable

34

FRONT AXLE PULL 26MM 04

54809081060

Unavailable

38

PLUG FOR RIM

55003135000

Unavailable

40

AUXILIARY SCREW FRONT 06

54809081070

Unavailable

7

BRAKE DISC GUARD CPL.

7800906110030

Unavailable

15

SPOKE KIT FRONT ''21'' BLACK

00050000954

Unavailable
