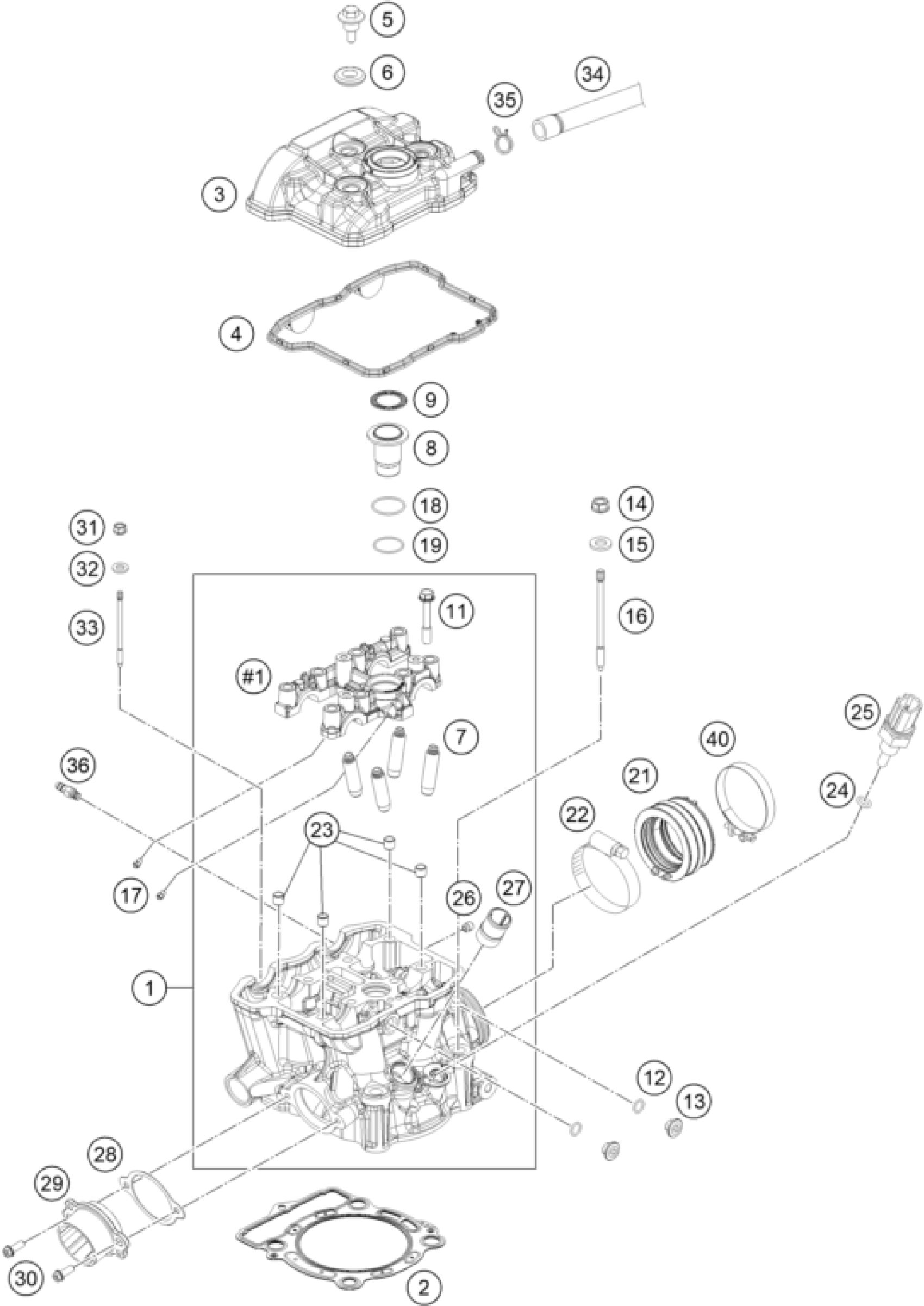

KTM 350 XCF-W 2022 CYLINDER HEAD Diagram

#

Description
Price

1

Cylinder head cmpl.

79336120144

Unavailable

2

Cylinder head gasket

79330036086

Unavailable

3

Valve cover

7933605200033

Unavailable

4

Valve Cover Gasket

79336053000

Unavailable

5

VALVE COVER SCREW

77336054150

Unavailable

6

RUBBER GASKET FOR SCREW

77036054150

Unavailable

7

VALVE GUIDE INTAKT

77236025001

Unavailable

8

Spark plug shaft insert

79336075000

Unavailable

9

GASKET SPARK-PLUG SHAFT

77336053050

Unavailable

11

Collar screw M7x1x42

77330067242

Unavailable

12

O-RING 9x1,5 V80 SH

07700900151

Unavailable

13

SCREW PLUG

77236080000

Unavailable

14

COLLAR NUT M10X1,25 SW13

77336088210

Unavailable

15

washer 19x10.5x2.5

77336089010

Unavailable

16

STUD BOLT M10X1,25

79230044000

Unavailable

17

oil jet 50 M5

60030063050

Unavailable

18

O-RING 26X1.5 VITON

07702600151

Unavailable

19

O-ring 23x1.5 Viton

07702300151

Unavailable

21

RUBBER CUP

79236044100

Unavailable

22

Hose clamp GEMI 63mm 05

61036047000

Unavailable

23

DOWEL(BUSH BRIDGE)7/9/8 05

77036090000

Unavailable

24

o-ring 10.00x2.00 silicone

0770100020

Unavailable

25

water temperature sensor

79435047000

Unavailable

26

SCREW PLUG

59030296000

Unavailable

27

SCREW IN NOZZLE M20X1,5

58030010200

Unavailable

28

GASKET EXHAUST FLANGE

77236041000

Unavailable

29

ENGINEFLANGE

77236139000

Unavailable

30

HH collar screw M6x16 TX30 SL

0025060166S

Unavailable

31

COLLAR NUT M6X1 SW8

77336088106

Unavailable

32

WASHER DIN0125-A 6,4

0125060003

Unavailable

33

STUD BOLT M6

79230043000

Unavailable

34

ENGINE BREATHER HOSE

79038587000

Unavailable

35

CLAMP YDNAC 10173 (18MM)

58431082300

Unavailable

36

VACUUM CONECTION M6/0,5MM

60036023100

Unavailable

40

Hose clip GEMI 58

77236048000

Unavailable
