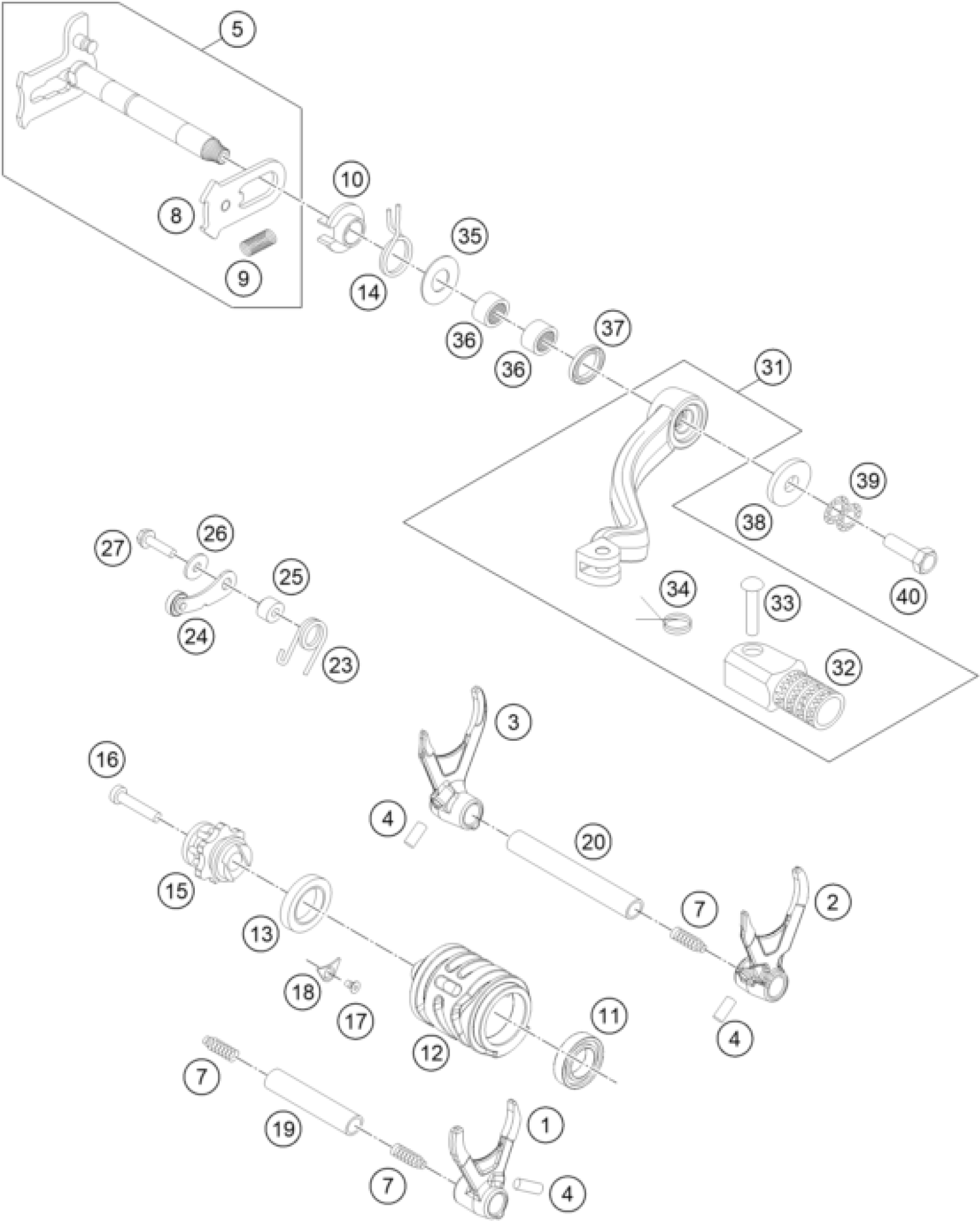

KTM 350 XCF-W 2015 SHIFTING MECHANISM Diagram

#

Description
Price

1

SHIFT FORK 5./6.G.

54834201000

Unavailable

2

SHIFT FORK 2./4.G.

54834202000

Unavailable

3

SHIFT FORK 1./3. G.

54834203000

Unavailable

4

NEEDLE ROLLER DIN5402 6X14,8

0402061480

Unavailable

5

SHIFT SHAFT CPL.

54834005144

Unavailable

7

PRESSURE SPRING 0,9MM

58038023200

Unavailable

8

SLIDING PLATE CPL.

54634008044

Unavailable

9

TENSIONING SPRING 0,8MM

56534013100

Unavailable

10

SPRING GUIDE

54634020000

Unavailable

11

BALL BEARING 6903 C4

0625069034

Unavailable

12

GEAR SHIFT DRUM

54834212200

Unavailable

13

BALL BEARING 61805 C3

0625618050

Unavailable

14

RETURN SPRING 03

54834014000

Unavailable

15

SHIFT LOCATING DRUM CPL.

77234015000

Unavailable

16

AH SCREW DIN0912-M 6X35

0912060353

Unavailable

17

hex lobe countersunc screw M5x

0019050106S

Unavailable

18

RETAINING PLATE F. CS BEARING

75030085000

Unavailable

19

SHIFT. RAIL MAIN SHAFT 250/300

54834019000

Unavailable

20

SHIFT. RAIL C. SHAFT 250/300

54834020000

Unavailable

23

ARRESTING LEVER SPRING 03

60034023000

Unavailable

24

LOCATING LEVER CPL. 08

50334024144

Unavailable

25

SLEEVE FOR LOCKING LEVER

54634052300

Unavailable

26

washer DIN 9021 A - 5.3

0021050003

Unavailable

27

HH collar screw M5x20 TX30

0025050206

Unavailable

31

SHIFT LEVER CPL.RACING 2000

59034031000

Unavailable

32

STEP PLATE FOR SHIFT LEVER 250

54634131000

Unavailable

33

BOLT 6X25 FOR SHIFT LEVER

54634031050

Unavailable

34

SHIFTING LEVER SPRING 250

54634032100

Unavailable

35

STOP DISK 14X30X1

54634050000

Unavailable

36

needle sleeve HK 1412 14x20x12

54632095000

Unavailable

37

radial shaft seal 14x24x6 B

0760142460

Unavailable

38

STEEL WASHER 6,4X17X3

50232050001

Unavailable

39

Pair of washers M6 NORDLOCK

50233041000

Unavailable

40

SPECIAL SCREW M6X16 WS=8 10.9

59009062016

Unavailable
