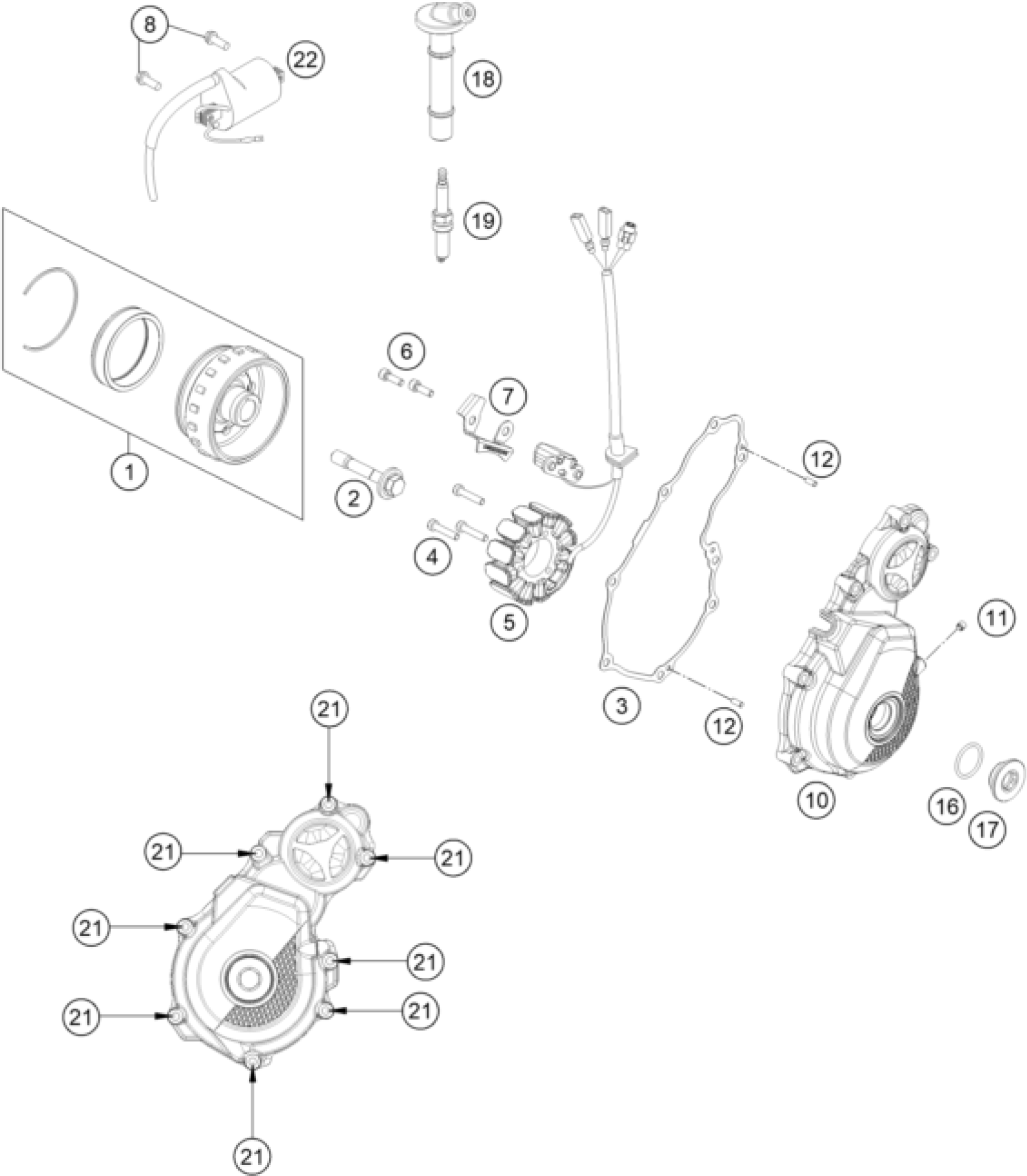

KTM 350 XC-F FACTORY EDITION 2023 IGNITION SYSTEM Diagram

#

Description
Price

1

ROTOR EFI CPL.

79239005044

Unavailable

2

FLYWHEEL SCREW

77339010100

Unavailable

3

Ignition cover gasket

A46030040000

Unavailable

4

Cap head screw DIN 6912 - M5x3

0012050303S

Unavailable

5

Stator

79239004200

Unavailable

6

Cap head screw DIN912 - M5x16

0912050163S

Unavailable

7

Cable retainer

A46030002050

Unavailable

8

COLLAR SCREW M6X18 ISA30

0026060186

Unavailable

10

Ignition cover

A46030002000C1

Unavailable

11

THREAD PIN DIN 913 M5X6

0913050063S

Unavailable

12

Needle roll.DIN5402 NRB 4X9.8

0402040980

Unavailable

16

o-ring 24.00x2.50 Viton

07700240251

Unavailable

17

SCREW PLUG M24X1,5

7723000216030

Unavailable

18

Resistor Plug Cover

79139090000

Unavailable

19

spark plug

77839093000

Unavailable

21

HH collar screw M6x30 TX30

0025060306

Unavailable

22

Ignition coil

58439006000

Unavailable
