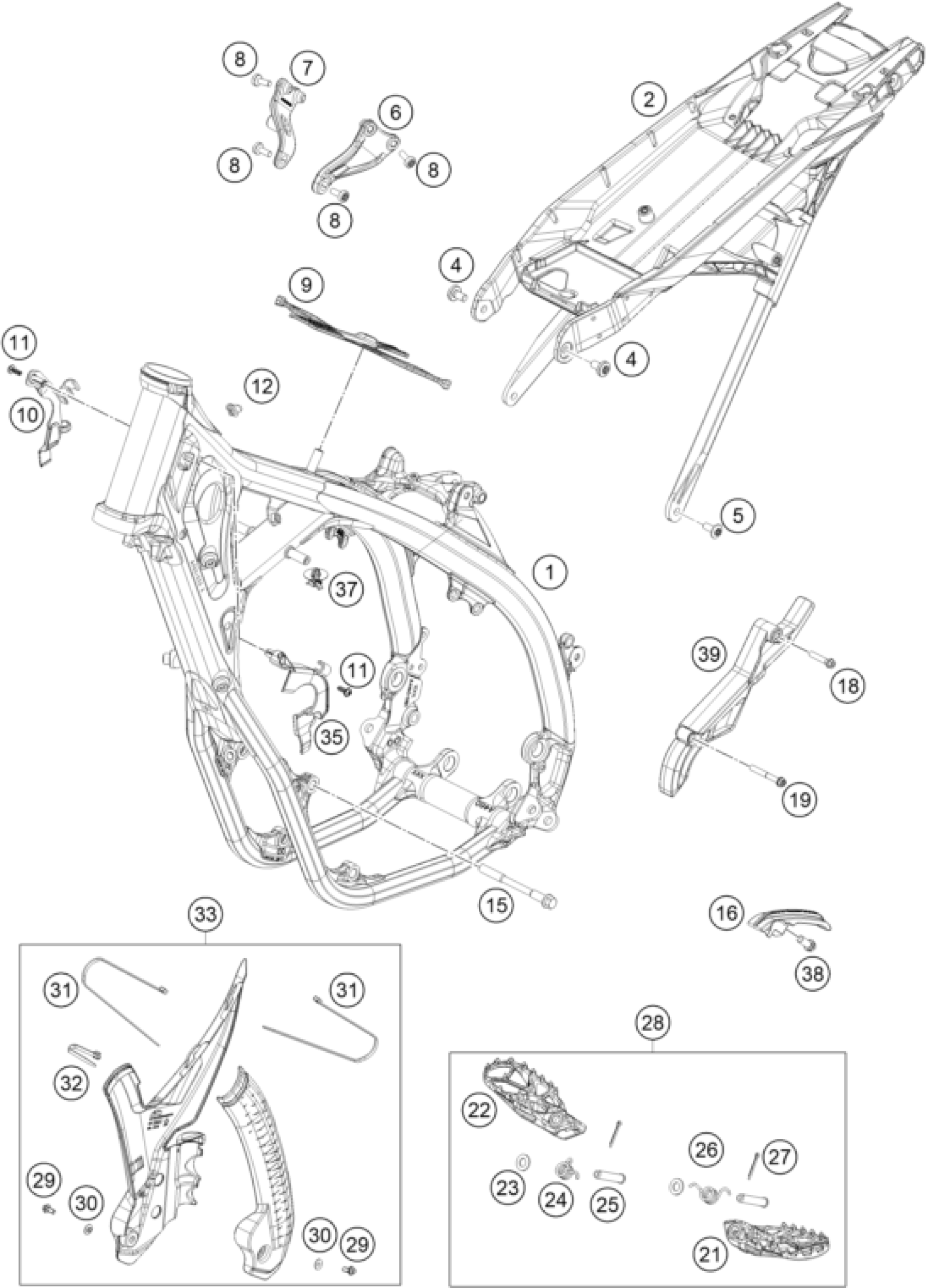

KTM 350 XC-F FACTORY EDITION 2023 FRAME Diagram

#

Description
Price

1

Frame

A46003001100EB

Unavailable

2

Subframe

A46003002000

Unavailable

4

Special screw M8x16 ISA45 self

09000008016U0

Unavailable

5

Special screw M8X18 TORX45 SL

79003003000

Unavailable

6

Engine brace left

A46003013000

Unavailable

7

Engine brace, right

A46003014000

Unavailable

8

SHCS M8x20 TX45

0035080206S

Unavailable

9

Tank support rubber

A46007012000

Unavailable

10

Cable bracket/throttle cable g

A46003099020

Unavailable

11

EJOT PT screw K50x14

0081050141

Unavailable

15

Enginebrac. screw M10X123 WS=1

59003013000

Unavailable

16

Chain slider below

A46003053000

Unavailable

18

HH collar screw M8x20

0025080206

Unavailable

19

HH COLLAR SCREW M6X45 TX30

0025060456

Unavailable

21

Foot grid left

A46003040000

Unavailable

22

Foot peg right

A46003041000

Unavailable

23

washer DIN 125 A 10.5

0125100003

Unavailable

24

Footrest spring right

A46003045000

Unavailable

25

PIN FOR FOOT PED 51.5X9.8 MM

54803044000

Unavailable

26

Footrest spring left

A46003044000

Unavailable

27

PIN DIN0094-3,2X25 STEEL

0094032253

Unavailable

28

Footpeg set

A46003037033

Unavailable

29

HH collar screw M5x10 TX30

0025050106

Unavailable

30

Bush f. frame protection 03

54803092060

Unavailable

31

Cable tie 200/4.6mm black

44011076200

Unavailable

32

CABLE TIE 140/2,5MM BLACK

44011076140

Unavailable

33

Frame protection set

A46003094000EB

Unavailable

35

Cable bracket

A46003099010

Unavailable

37

Cable bracket d8

79711013010

Unavailable

38

HH collar screw M8x20

0025080206

Unavailable

39

Front sprocket cover

A46003096000

Unavailable

12

ANGLE PIECE '97

50303089000

Unavailable
