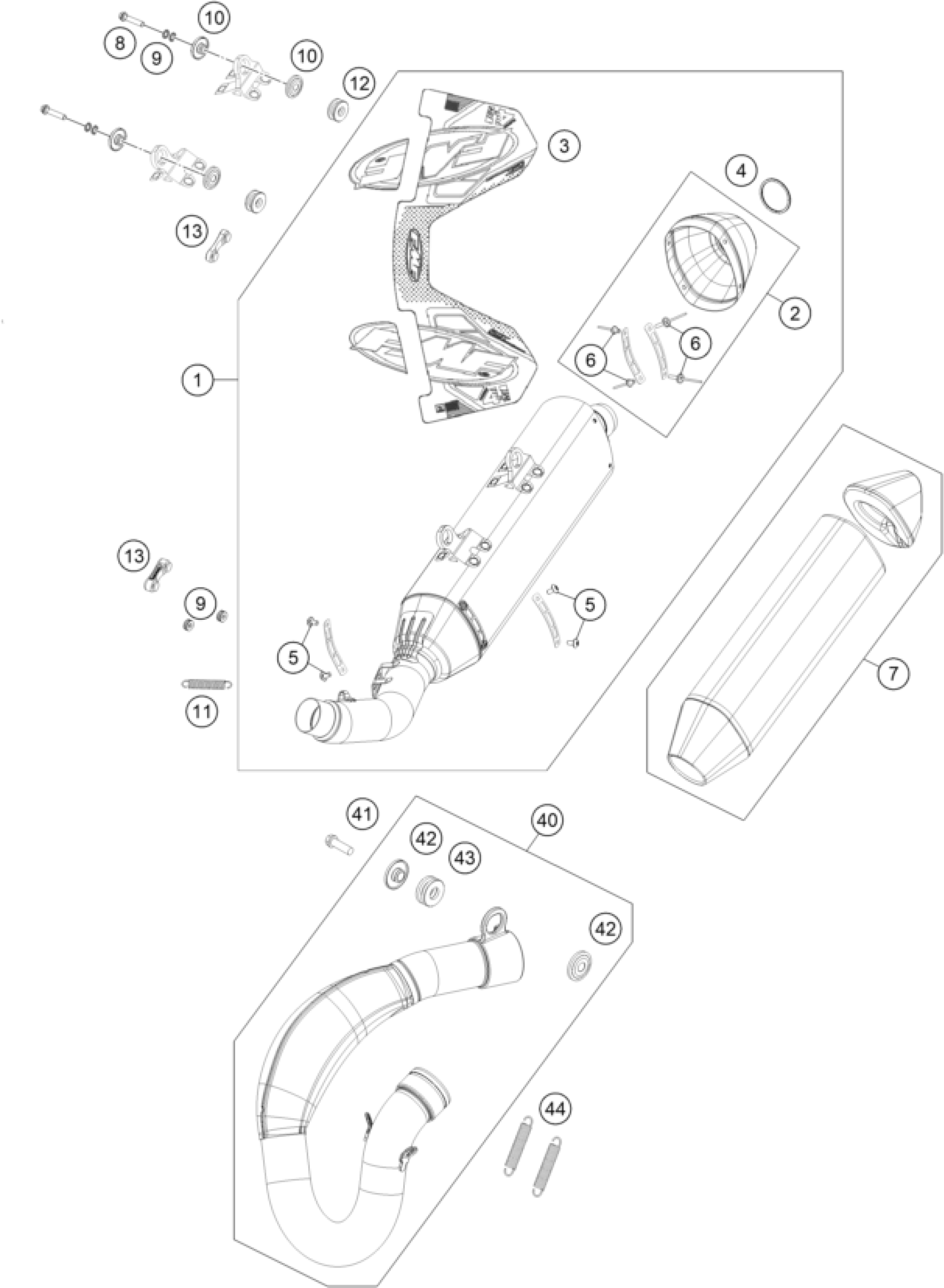

KTM 350 XC-F FACTORY EDITION 2023 EXHAUST SYSTEM Diagram

#

Description
Price

44

Tension spring L=65 mm

50305016200

Unavailable

40

Manifold 350 SXF

A47005007033

Unavailable

41

HH collar screw M8x25

0025080256

Unavailable

42

BUSHING 8.5x12x28x8.3

77805069000

Unavailable

43

Damper gray

79105068000

Unavailable

1

FMF Factory 4.1 RCT silencer

A46005979003

Unavailable

2

CARBON ENDCAP

79005079550

Unavailable

6

DUMMY RIVET 4,8X 8 NIRO

0011480800

Unavailable

4

Spiral retaining ring

79505979535

Unavailable

5

SCREW TORX M5X10

78105081010

Unavailable

3

FMF Factory 4.1 RCT sticker

79505979583

Unavailable

7

Race repack kit

79505979513

Unavailable

11

TEN.SPRING L=62MM EY.MOVEABLE

50305016000

Unavailable

9

Pair of washers M6 NORDLOCK

50233041000

Unavailable

10

BUSHING 7.5x12x28x8.3 11

77205169000

Unavailable

8

HH collar screw M6x30 TX30

0025060306

Unavailable

12

DAMP. COMPON. BLACK

77205068000

Unavailable

13

exhaust spacer

79105098000

Unavailable
