CRANKSHAFT, PISTON

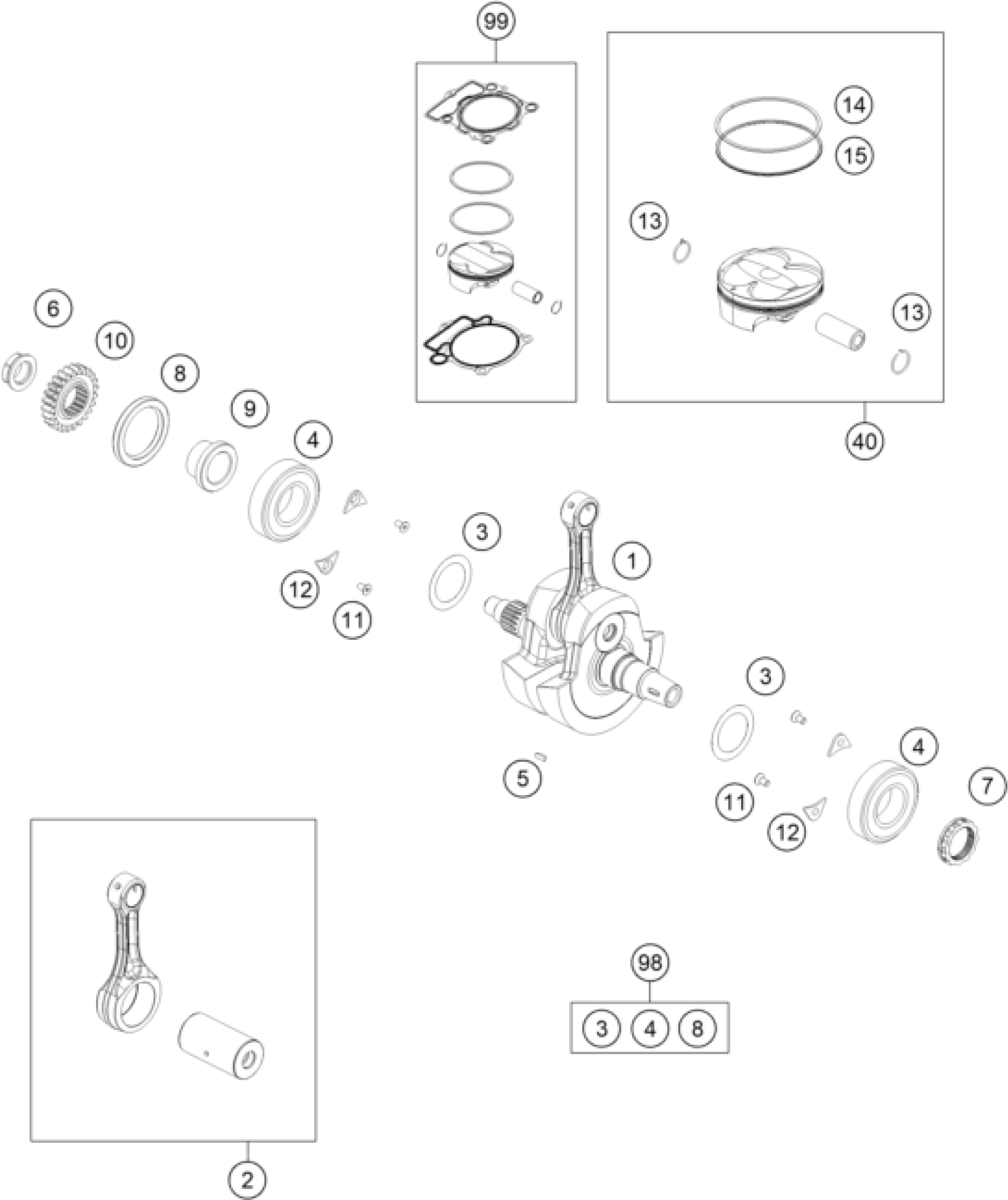

KTM 350 XC-F 2023 CRANKSHAFT, PISTON Diagram
#
Description
Price
1
Crankshaft cpl.
79330018000
Unavailable
2
CONROD REPAIR KIT
79230015144
Unavailable
3
THRUST WASHER 988ST 32X0,1
0988324510
Unavailable
3
THRUST WASHER 988ST 32X0,15
0988324515
Unavailable
3
THRUST WASHER 988ST 32X0,30
0988324530
Unavailable
4
BEARING NJ 206 ECP/HN3C4HVA624
77330082200
Unavailable
5
WOODRUFF KEY DIN6888-3X3,7
0888030037
Unavailable
6
Nut M18x1.5 Precote
0910001801000S
Unavailable
7
Nut M27x1 Precote
0910002700800S
Unavailable
8
SHAFT SEAL RING A 40X55X6 V.
0760405561
Unavailable
9
Spacer, primary gear
77232022100
Unavailable
10
gear primary drive
79232023124
Unavailable
11
INT. TORX FLAT HEAD M5X12 T25
0019050121S
Unavailable
12
RETAINING PLATE F. CS BEARING
75030085000
Unavailable
13
CIRCLIP PISTON PIN
79230274000
Unavailable
14
COMPRESSIONRING 350
77230030000
Unavailable
40
piston I cpl. 350 MX
A47030007000 I
Unavailable
40
piston II cpl. 350 MX
A47030007000 II
Unavailable
99
piston kit I
A47030007010 I
Unavailable
99
Pistonkit II
A47030007010 II
Unavailable
98
Crankshaft repair kit
00050002319
Unavailable
15
Oil scraper ring
79230232100
Unavailable
