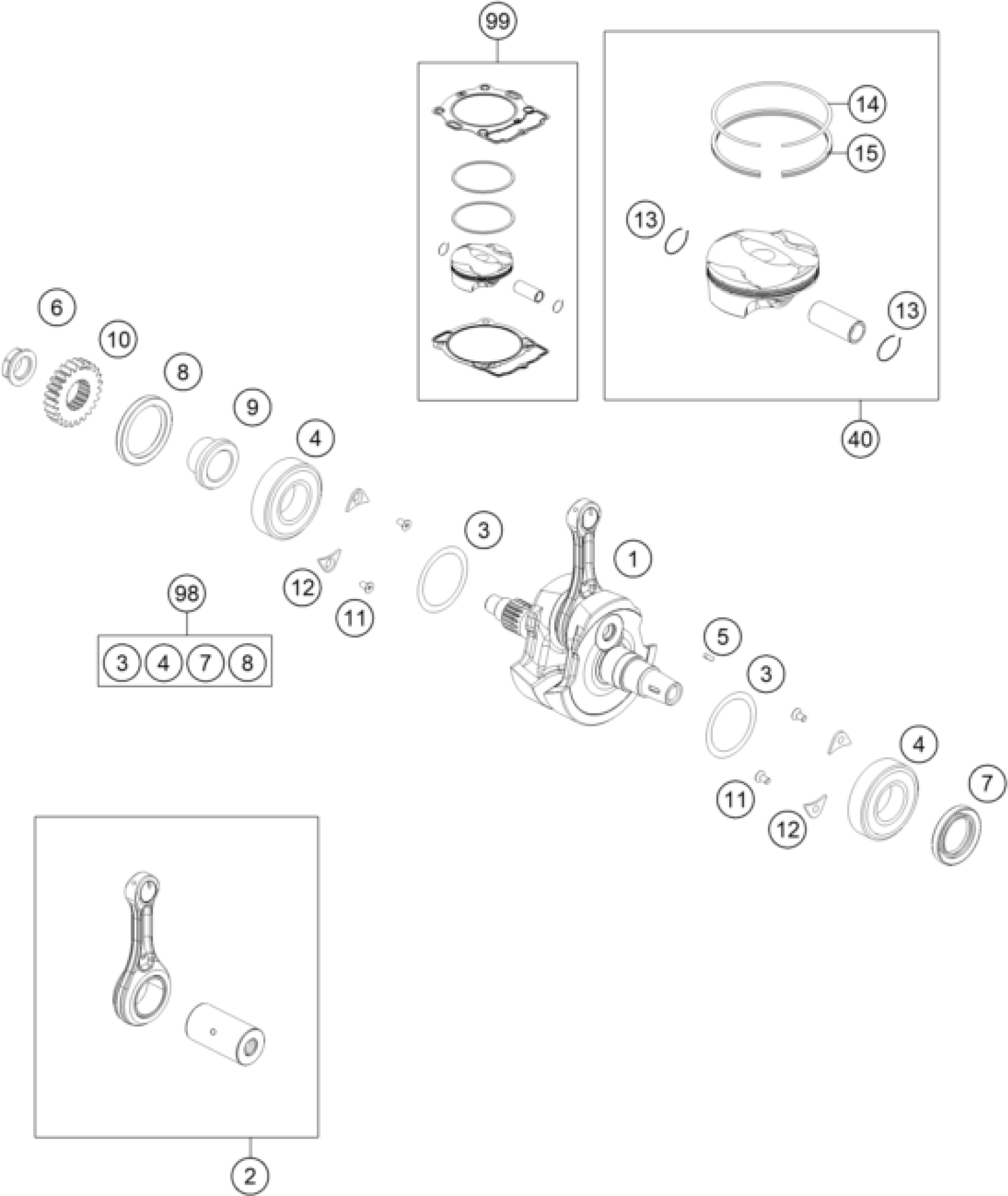

KTM 350 XC-F 2017 CRANKSHAFT, PISTON Diagram

#

Description
Price

1

CRANKSHAFT CPL.

79230018100

Unavailable

2

CONROD REPAIR KIT

79230015144

Unavailable

3

THRUST WASHER 988ST 32X0,1

0988324510

Unavailable

3

THRUST WASHER 988ST 32X0,15

0988324515

Unavailable

3

THRUST WASHER 988ST 32X0,30

0988324530

Unavailable

4

BEARING NJ 206 ECP/HN3C4HVA624

77330082200

Unavailable

5

WOODRUFF KEY DIN6888-3X3,7

0888030037

Unavailable

6

NUT PRIMARY WHEEL

77230029000

Unavailable

7

SHAFT SEAL RING A30X47X6 VITON

0760304760

Unavailable

8

SHAFT SEAL RING A 40X55X6 V.

0760405561

Unavailable

9

SPACER BUSHING PRIMARY GEAR

77232022000

Unavailable

10

PRIMARY GEAR 24T.

79232023024

Unavailable

11

INT. TORX FLAT HEAD M5X12 T25

0019050121S

Unavailable

12

RETAINING PLATE F. CS BEARING

75030085000

Unavailable

13

CIRCLIP PISTON PIN

79230274000

Unavailable

14

COMPRESSIONRING 350

77230030000

Unavailable

40

PISTON I CPL. 350

79230207100 I

Unavailable

40

PISTON II CPL. 350

79230207100 II

Unavailable

98

CRANKSHAFT REP. KIT

00050002316

Unavailable

99

PISTON KIT 350 SX-F GR. I

00050000231

Unavailable

99

PISTON KIT 350 SX-F GR. II

00050000232

Unavailable

15

OIL SCRAPER RING

79230232000

Unavailable
