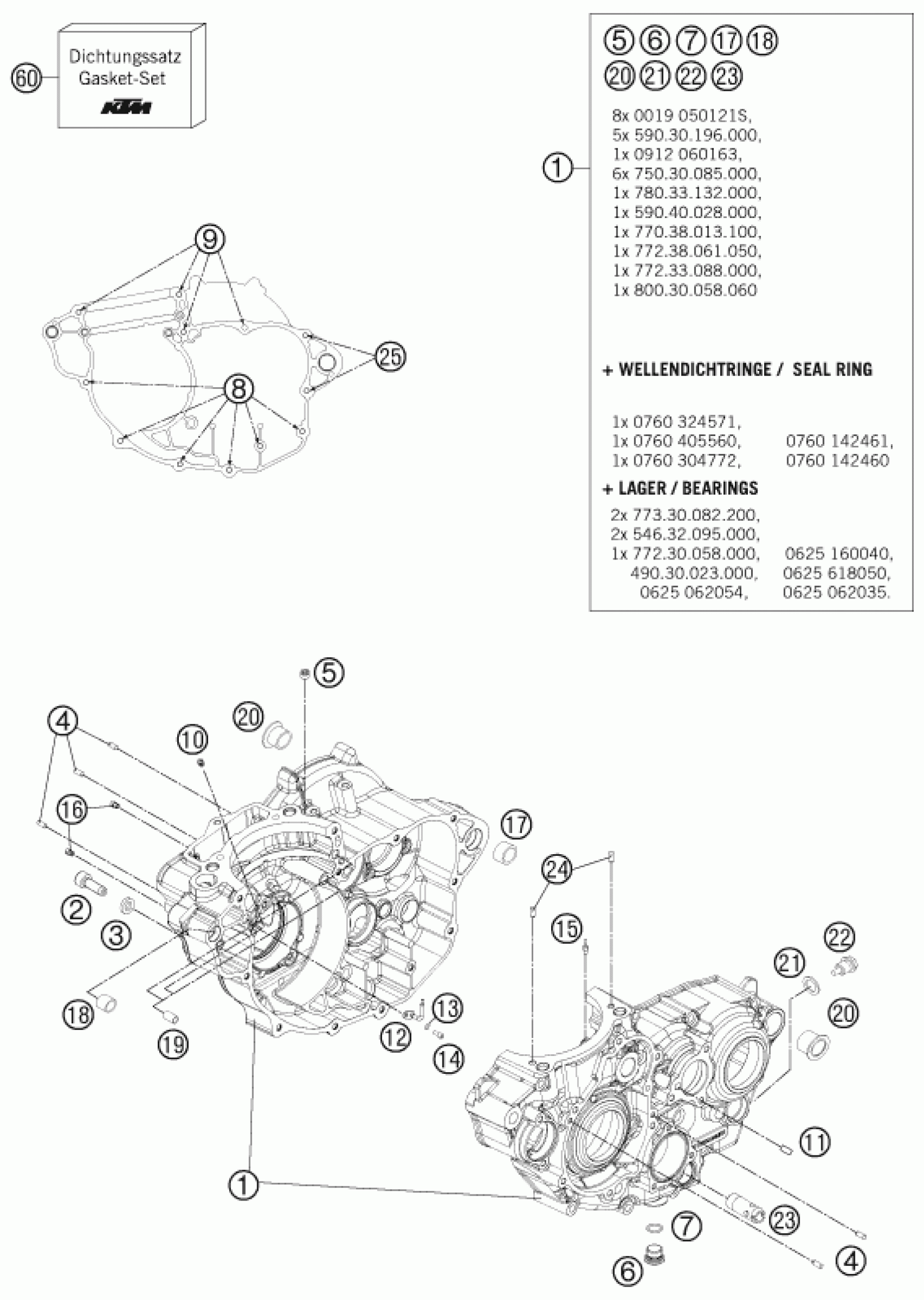

KTM 350 XC-F 2013 ENGINE CASE Diagram

#

Description
Price

10

OIL JET ''60'' M4

80030058060

Unavailable

7

O-ring 11x1.5 VITON

0770110015

Unavailable

8

HH collar screw M6x55 TX30

0025060556

Unavailable

1

ENGINE CASE CPL.

77730100033

Unavailable

2

LOCATING SCREW M8 L=23

58030080000

Unavailable

3

CU-SEAL RING 8 X 14 X 3

58030081000

Unavailable

4

Needle roll.DIN5402 NRB 4X9.8

0402040980

Unavailable

5

pipe plug DIN 906 M10x1

0906100100

Unavailable

6

HOLDING BOLT M14X1,5

78036081000

Unavailable

9

HH COLLAR SCREW M6X65 TX30

0025060656

Unavailable

11

THROTTLE M5X10X0,5

77230066000

Unavailable

12

OIL JET CURVED '' 50 ''

77830064050

Unavailable

13

O-RING 3,5X2,00 NBR

0770035020

Unavailable

14

AH.SCREW DIN0912-M 4X10

0912040103

Unavailable

15

oil jet 50 M5

60030063050

Unavailable

16

JET 100 BING(44-031/180) M4

59030058000

Unavailable

17

DOWEL 17 X 19 X 12

59030024000

Unavailable

18

DOWEL BUSHING 13,8X11X12

54630027000

Unavailable

19

dowel sleeve 6x8x11.5

59030023000

Unavailable

20

CASE BUSH

75030010100

Unavailable

21

CU-seal ring DIN7603-12X18X1.5

58038022000

Unavailable

22

OILDRAIN PLUG W.MAG. M 12X1,5

58030021000

Unavailable

23

OIL INTAKEPIPE

77038022000

Unavailable

24

CYLINDER ROLLER ZRO 5X8

0402050080

Unavailable

25

HH COLLAR SCREW M6X85 TX30

0025060856

Unavailable

60

GASKET SET 350 SX-F

77830099000

Unavailable
