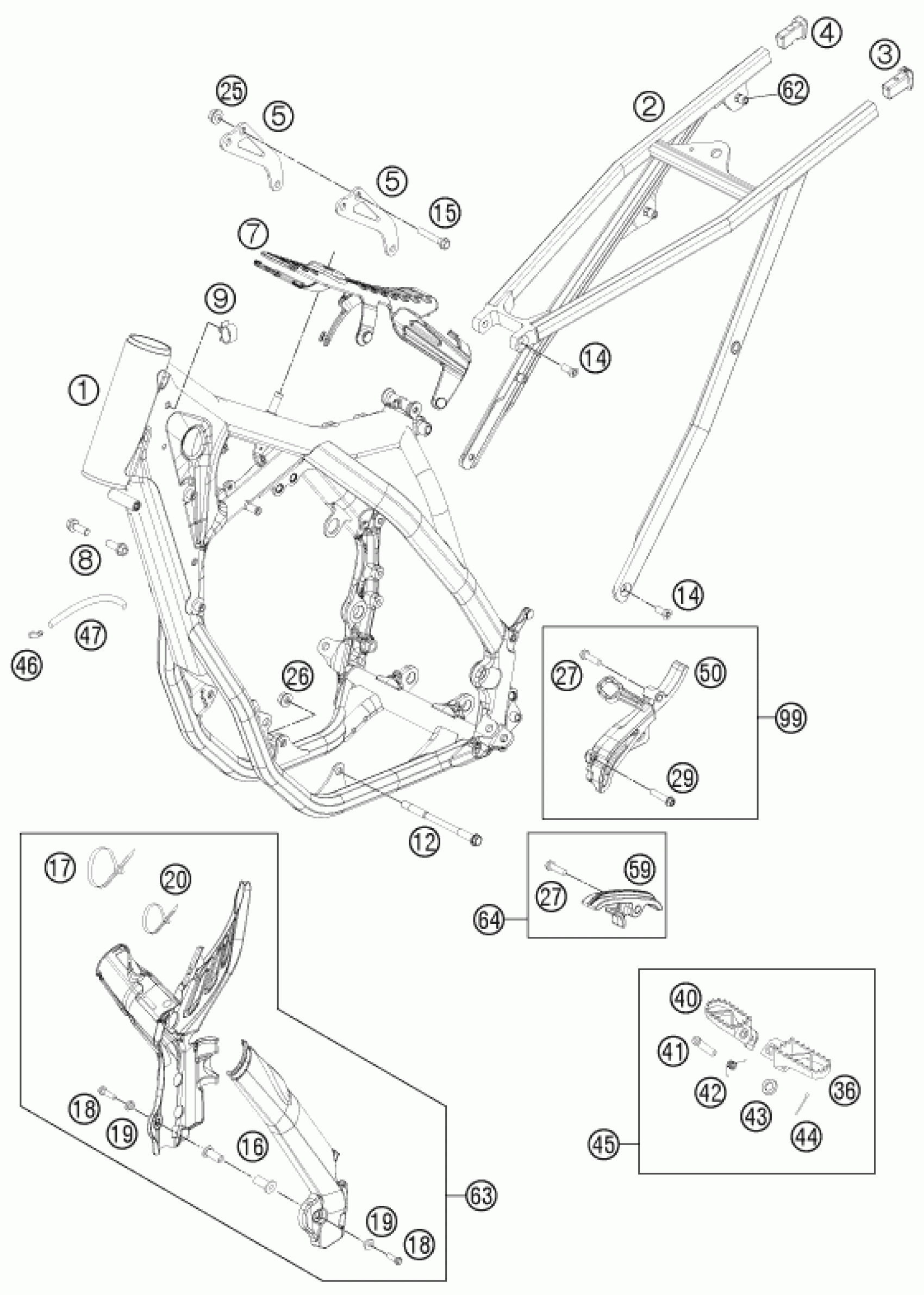

KTM 350 XC-F 2011 FRAME Diagram
#
15
HH COLLAR SCREW M 8X44 WS13
56530079000
Unavailable
16
BLIND PLUG-IN NUT M5 WN 22A 03
54803092050
Unavailable
1
FRAME BLACK M. ''772K4''
7720300110033
Unavailable
2
SUB FRAME SX
77203002000
Unavailable
3
SUB FRAME APPLICAT. LEFT 08
78003002010
Unavailable
4
SUB FRAME APPLICATION R/S 08
78003002020
Unavailable
5
REINFORCING B. 350 SX-F
77203013000
Unavailable
7
TANK REST RUBBER
77207012000
Unavailable
8
HH collar screw M8x16 TX40 SL
0025080166S
Unavailable
9
WIRING HOLDER 16MM
57013072100
Unavailable
12
engine brac.scr. M10x115
77203014000
Unavailable
18
COU.SUNK SCR. AH ISO7380 M5X25
0738050250
Unavailable
19
Bush f. frame protection 03
54803092060
Unavailable
20
CABLE TIE 140/2,5MM BLACK
44011076140
Unavailable
25
Self locking nut M8 10.9
54310086200
Unavailable
26
SELF LOCKING NUT M10 CU WS=14
54310086100
Unavailable
27
HH collar screw M8x30
0025080306
Unavailable
29
HH collar screw M6x40 TX30
0025060406
Unavailable
36
FOOT PEG L/S SILVER 02
59003040250
Unavailable
40
FOOT PEG R/S SILVER 02
59003041250
Unavailable
41
PIN FOR FOOT PED 51.5X9.8 MM
54803044000
Unavailable
42
FOOTREST SPRING L/S & R/S
54603041000
Unavailable
43
washer DIN 125 A 10.5
0125100003
Unavailable
44
PIN DIN0094-3,2X25 STEEL
0094032253
Unavailable
45
FOOTPEG L.+R. CPL. 03
5030314013390
Unavailable
46
ANGLE PIECE '97
50303089000
Unavailable
47
PVC-HOSE 7X10 PER METER
55007016001
Unavailable
50
SPROCKET COVER 350 SX-F
77203096000
Unavailable
59
CHAIN SLIDER LOWER PART CPL.
77203053000
Unavailable
62
BLIND RIVET NUT EM6-60LF/HX
77303139000
Unavailable
63
PLASTIC FRAME PROTECTION SET
77203094000
Unavailable
64
CHAIN SLIDING KIT BELOW CPL.11
77203053010
Unavailable
99
SPROCKET COVER KIT
77203096010
Unavailable
17
CABLE TIE 300/4,8MM BLACK
44011076305
Unavailable
14
FLAT HEAD SCREW M. ISA45 M8X20
0019080206S
Unavailable
