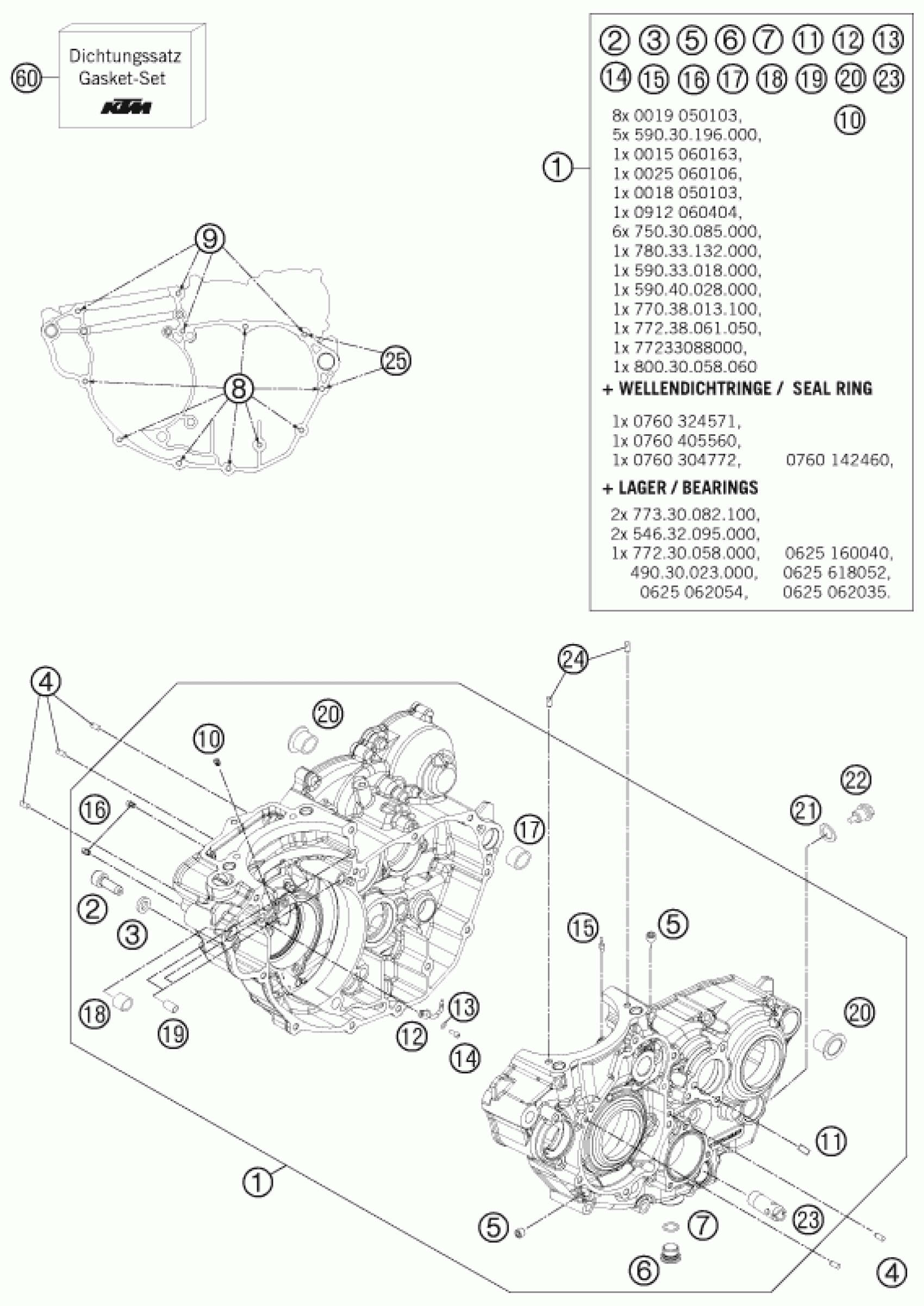

KTM 350 XC-F 2011 ENGINE CASE Diagram

#

Description
Price

11

THROTTLE M5X10X0,5

77230066000

Unavailable

12

OIL JET CURVED SIZE 50

81230064050

Unavailable

13

O-RING 3,5X2,00 NBR

0770035020

Unavailable

14

AH.SCREW DIN0912-M 4X10

0912040103

Unavailable

15

oil jet 50 M5

60030063050

Unavailable

16

JET 100 BING(44-031/180) M4

59030058000

Unavailable

17

DOWEL 17 X 19 X 12

59030024000

Unavailable

18

DOWEL BUSHING 13,8X11X12

54630027000

Unavailable

19

dowel sleeve 6x8x11.5

59030023000

Unavailable

10

OIL JET ''60'' M4

80030058060

Unavailable

23

OIL INTAKEPIPE

77038022000

Unavailable

20

CASE BUSH

75030010100

Unavailable

60

GASKET SET 350 SX-F

77230099000

Unavailable

21

CU-seal ring DIN7603-12X18X1.5

58038022000

Unavailable

22

OILDRAIN PLUG W.MAG. M 12X1,5

58030021000

Unavailable

1

ENGINE CASE CPL. W.TR.BEAR.

77230000044

Unavailable

2

LOCATING SCREW M8 L=23

58030080000

Unavailable

3

CU-SEAL RING 8 X 14 X 3

58030081000

Unavailable

4

Needle roll.DIN5402 NRB 4X9.8

0402040980

Unavailable

6

HOLDING BOLT M14X1,5

78036081000

Unavailable

7

O-ring 11x1.5 VITON

0770110015

Unavailable

5

pipe plug DIN 906 M10x1

0906100100

Unavailable

8

HH collar screw M6x55 TX30

0025060556

Unavailable

9

HH COLLAR SCREW M6X65 TX30

0025060656

Unavailable

25

HH COLLAR SCREW M6X85 TX30

0025060856

Unavailable

24

CYLINDER ROLLER ZRO 5X8

0402050080

Unavailable
