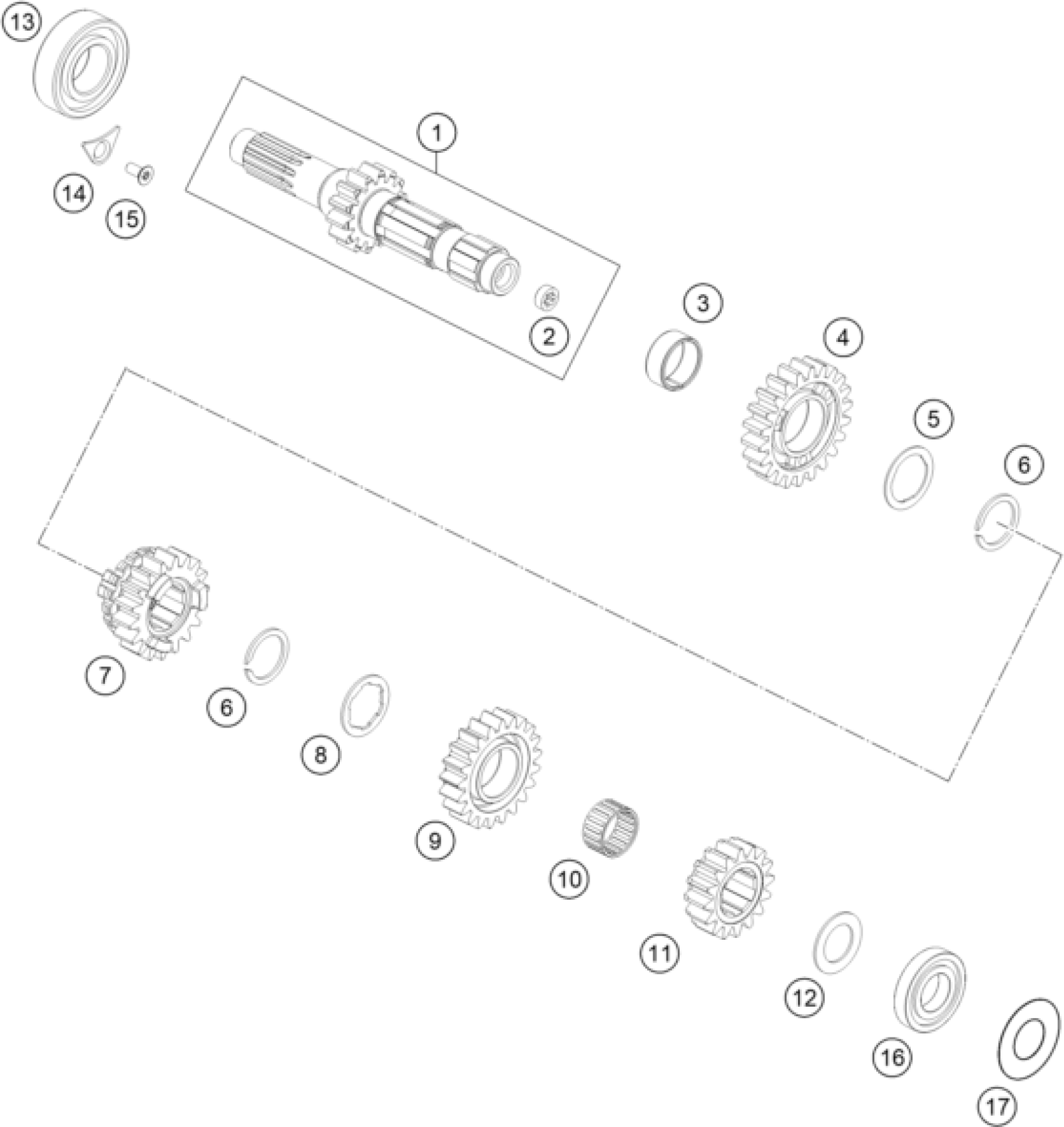

KTM 350 SX-F 2017 TRANSMISSION I - MAIN SHAFT Diagram

#

Description
Price

1

MAIN SHAFT CPL.

77233001100

Unavailable

2

BUSHING

78033001110

Unavailable

3

NEDDLE BEAR. K24X28X11,9 DIV.

0405242812

Unavailable

4

IDLER GEAR 5TH G. 22-T ''5S22'

54833005000

Unavailable

5

STOP DISC 25,2X32X1

50333043000

Unavailable

6

AXIAL-CIRCLIP 25X1,65

77033022000

Unavailable

7

SLIDING GEAR 3RD G 18Z

79233003000

Unavailable

8

STOP DISC 25,2X32X1,5

59033030000

Unavailable

9

IDLER GEAR 4TH G. 21-T ''4S21'

54833004000

Unavailable

10

NEEDLE BEAR. K 22X26X13 TN

0405222613

Unavailable

11

SOLID GEAR 2ND G. 16-T ''2S16'

54833002100

Unavailable

12

DISK 20,2X32X1,3

77233015000

Unavailable

13

BALL BEARING 6205 C3 NTN

0625062054

Unavailable

14

RETAINING PLATE F. CS BEARING

75030085000

Unavailable

15

INT. TORX FLAT HEAD M5X12 T25

0019050121S

Unavailable

16

BALL BEARING TM 16004 C4

0625160041

Unavailable

17

SPACER SHIM 21X42X0.2

77233088000

Unavailable
