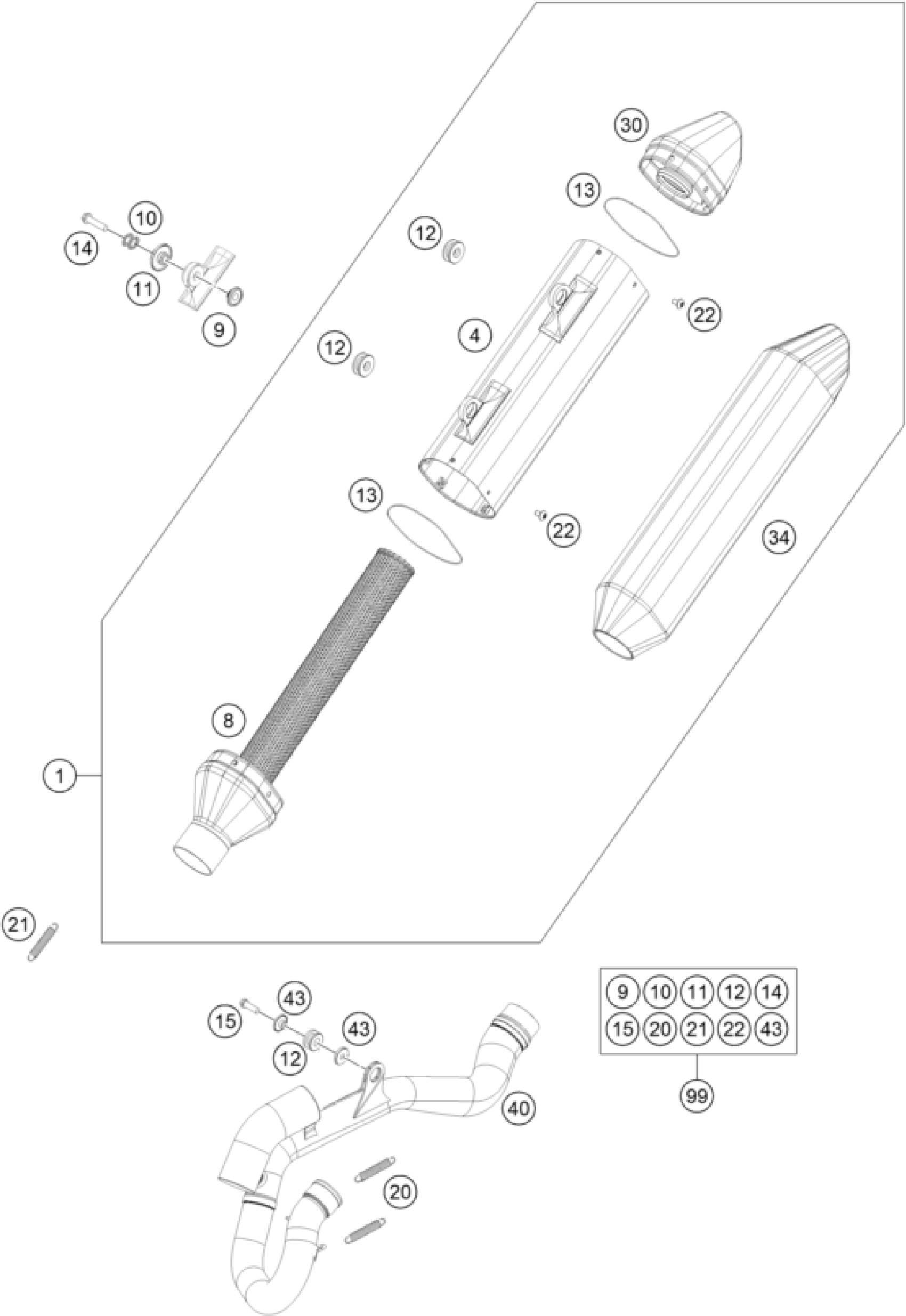

KTM 350 SX-F 2016 EXHAUST SYSTEM Diagram

#

Description
Price

1

SILENCER

79205079000

Unavailable

4

SILENCER ALU JACKET

79205079080

Unavailable

8

CONNECTING CAP CPL.

79205079050

Unavailable

9

BUSHING 7.5x12x20x8.2 11

77205069000

Unavailable

10

Pair of washers M6 NORDLOCK

50233041000

Unavailable

11

BUSHING 7.5x12x28x8.3 11

77205169000

Unavailable

12

DAMP. COMPON. BLACK

77205068000

Unavailable

13

O-RING 74,00X1,50 FKM 75SH

0770740015

Unavailable

14

HH collar screw M6x35 TX30

0025060356

Unavailable

15

HH collar screw M8x35 TX40

0025080356

Unavailable

20

TEN.SPRING L=62MM EY.MOVEABLE

50305016000

Unavailable

21

TEN.SPRING L=75MM EY.MOVEABLE

50305116000

Unavailable

22

SCREW TORX M5X10

78105081010

Unavailable

30

ENDCAP CPL.

77105079060

Unavailable

34

ROCKWOOL PREFOMED

79205078590

Unavailable

40

EXHAUST MANIFOLD SX

79205007000

Unavailable

43

BUSHING 8.5x12x28x8.3

77805069000

Unavailable

99

EXHAUST PARTS KIT

00050000819

Unavailable
