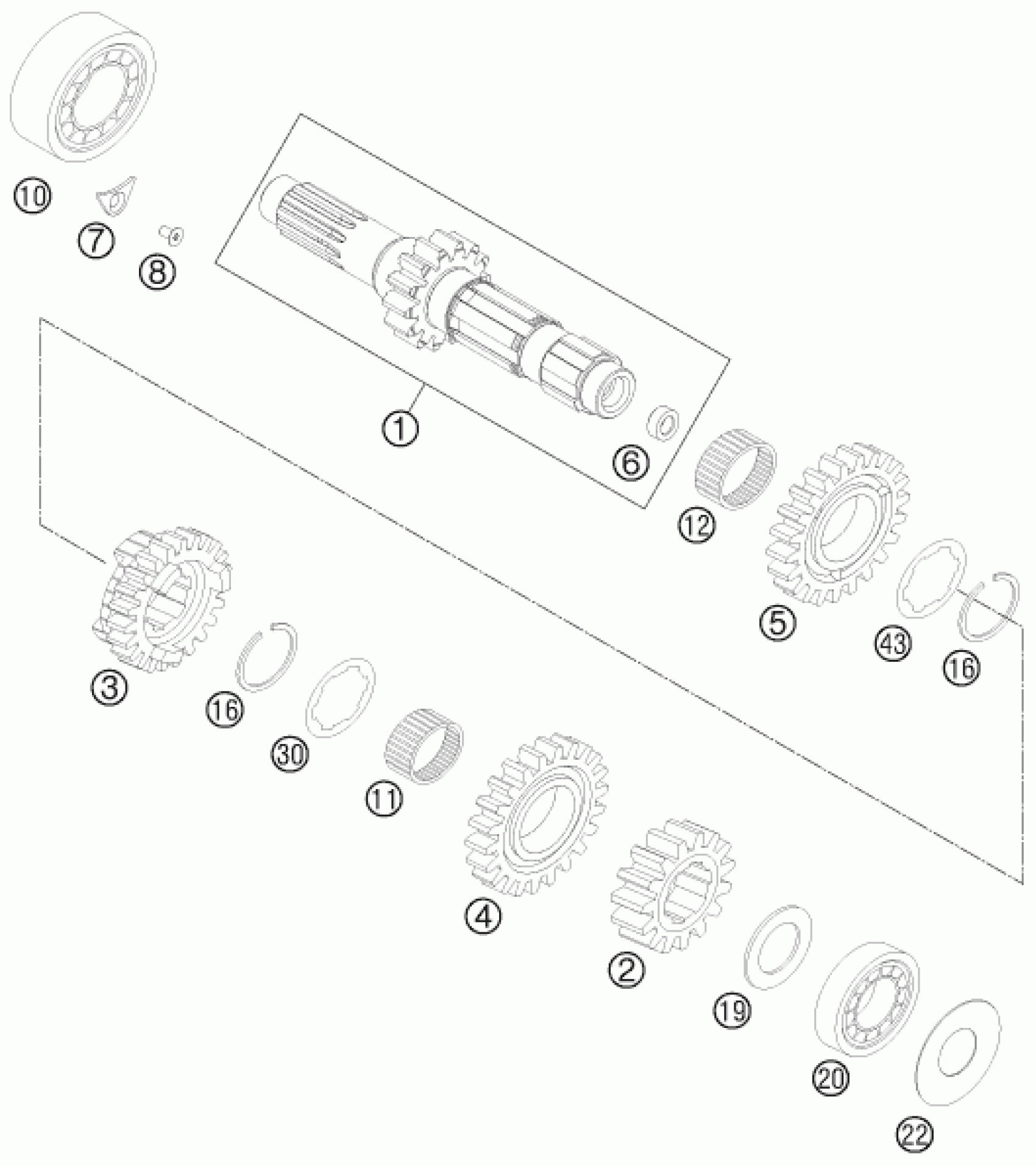

KTM 350 SX-F 2012 TRANSMISSION I - MAIN SHAFT Diagram

#

Description
Price

1

MAIN SHAFT CPL.

77233001100

Unavailable

2

SOLID GEAR 2ND G. 16-T ''2S16'

54833002100

Unavailable

3

SLIDING GEAR 3RD G.18-T ''3S18

54833003000

Unavailable

4

IDLER GEAR 4TH G. 21-T ''4S21'

54833004000

Unavailable

5

IDLER GEAR 5TH G. 22-T ''5S22'

54833005000

Unavailable

6

BUSHING

78033001110

Unavailable

7

RETAINING PLATE F. CS BEARING

75030085000

Unavailable

8

INT TORX FLAT HEAD M5X10 10.9

0019050106

Unavailable

10

BALL BEARING 6205 C3 NTN

0625062054

Unavailable

11

NEEDLE BEAR. K 22X26X13 TN

0405222613

Unavailable

12

NEDDLE BEAR. K24X28X11,9 DIV.

0405242812

Unavailable

16

AXIAL-CIRCLIP 25X1,65

77033022000

Unavailable

19

DISK 20,2X32X1,3

77233015000

Unavailable

20

GROOVED BALL BEAR. TM 16004 C3

0625160040

Unavailable

22

SPACER SHIM 21X42X0.2

77233088000

Unavailable

30

STOP DISC 25,2X32X1,5

59033030000

Unavailable

43

STOP DISC 25,2X32X1

50333043000

Unavailable
