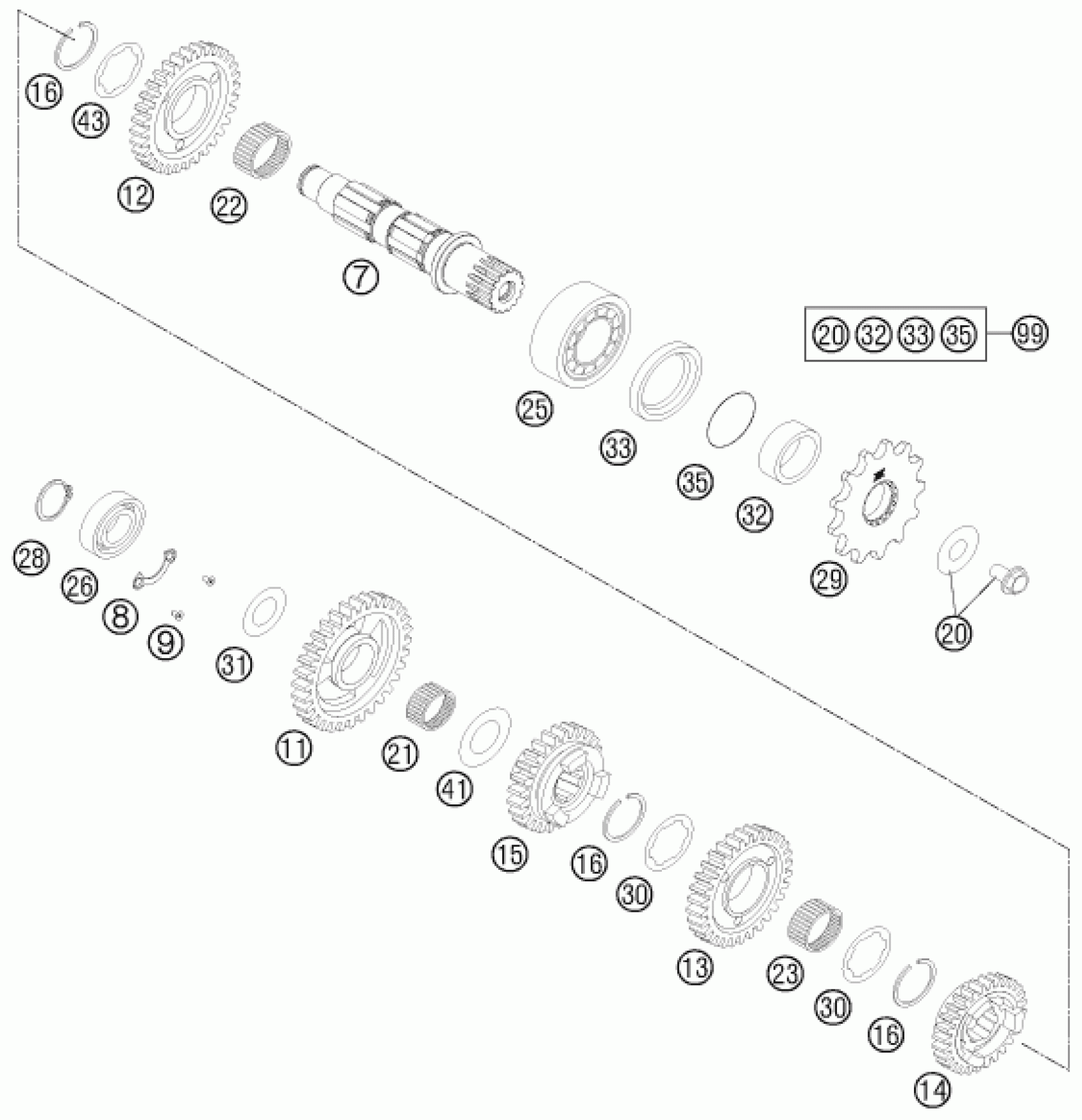

KTM 350 SX-F 2011 TRANSMISSION II - COUNTERSHAFT Diagram

#

Description
Price

20

SCREW 10.9+SPRING WASHER

59033034044

Unavailable

7

COUNTERSHAFT

77233010000

Unavailable

11

IDLER GEAR 1ST G. 28-T''1S28''

54833011000

Unavailable

12

IDLER GEAR 2ND G. 26-T ''2S26'

54833012100

Unavailable

13

IDLER GEAR 3RD G. 24-T ''3S24'

54833013000

Unavailable

14

SLIDING GEAR 4TH G.24-T ''4S24

54833014000

Unavailable

15

SLIDING GEAR 5TH G.21-T ''5S21

54833015000

Unavailable

16

AXIAL-CIRCLIP 25X1,65

77033022000

Unavailable

21

NEEDLE BEAR. K20X24X13

0405202413

Unavailable

22

NEDDLE BEAR. K24X28X11,9 DIV.

0405242812

Unavailable

23

NEEDLE BEAR. K 22X26X13 TN

0405222613

Unavailable

25

cylindrical roller bearing NJ2

49030023000

Unavailable

26

BALL BEARING 6203 JR2 C3

0625062035

Unavailable

28

CIRCLIP DIN 0471-17X1, 5

0471170015

Unavailable

29

FRONT SPROCKET 13-T

50033029013

Unavailable

29

FRONT SPROCKET 14-T

50033029014

Unavailable

30

STOP DISC 25,2X32X1,5

59033030000

Unavailable

31

STOP DISC 17,2X30X1

56033030000

Unavailable

32

SPACER BUSHING 12MM

54633014100

Unavailable

33

SHAFT SEAL RING 32X45X7 BSLNBR

0760324571

Unavailable

35

O-RING 25,12X1,78 NBR70

0770020220

Unavailable

41

Shim 20x31.9x1

59033080000

Unavailable

99

COUNTER SHAFT REP.KIT 4 STROKE

00050000941

Unavailable

43

STOP DISC 25,2X32X1

50333043000

Unavailable

8

TAB WASHER BEARING COUNT.SHAFT

78033132000

Unavailable

9

INT TORX FLAT HEAD M 5X10 8.8

0019050103

Unavailable
