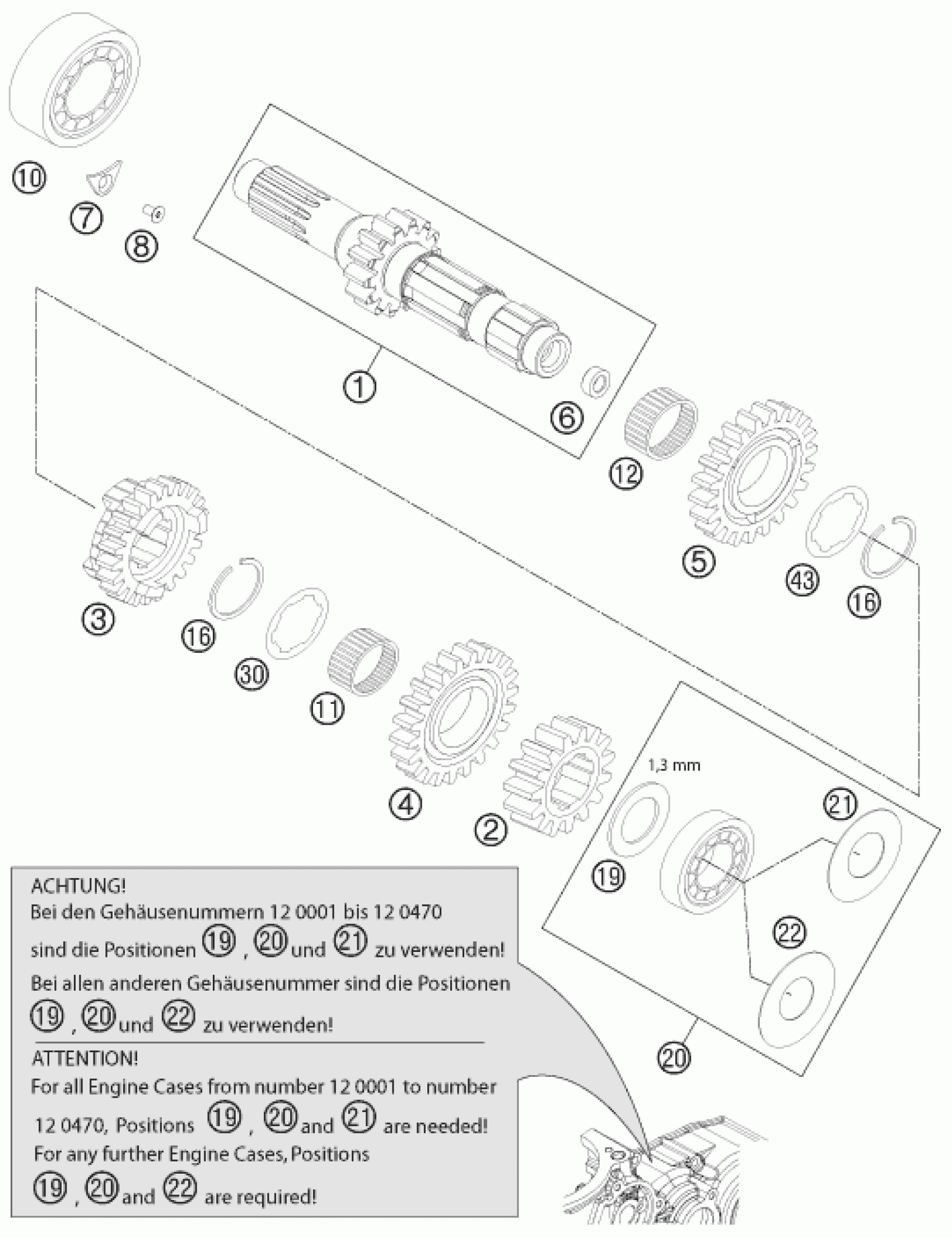

KTM 350 SX-F 2011 TRANSMISSION I - MAIN SHAFT Diagram

#

Description
Price

21

SPACER SHIM 21X41X0.2

77233089000

Unavailable

22

SPACER SHIM 21X42X0.2

77233088000

Unavailable

6

BUSHING

78033001110

Unavailable

1

MAIN SHAFT CPL.

77233001100

Unavailable

2

SOLID GEAR 2ND G. 16-T ''2S16'

54833002100

Unavailable

3

SLIDING GEAR 3RD G.18-T ''3S18

54833003000

Unavailable

4

IDLER GEAR 4TH G. 21-T ''4S21'

54833004000

Unavailable

5

IDLER GEAR 5TH G. 22-T ''5S22'

54833005000

Unavailable

10

BALL BEARING 6205 C3 NTN

0625062054

Unavailable

11

NEEDLE BEAR. K 22X26X13 TN

0405222613

Unavailable

12

NEDDLE BEAR. K24X28X11,9 DIV.

0405242812

Unavailable

19

DISK 20,2X32X1,3

77233015000

Unavailable

16

AXIAL-CIRCLIP 25X1,65

77033022000

Unavailable

20

DRIVE SHAFT BEARING KIT

77233099000

Unavailable

30

STOP DISC 25,2X32X1,5

59033030000

Unavailable

43

STOP DISC 25,2X32X1

50333043000

Unavailable

7

RETAINING PLATE F. CS BEARING

75030085000

Unavailable

8

INT TORX FLAT HEAD M 5X10 8.8

0019050103

Unavailable
