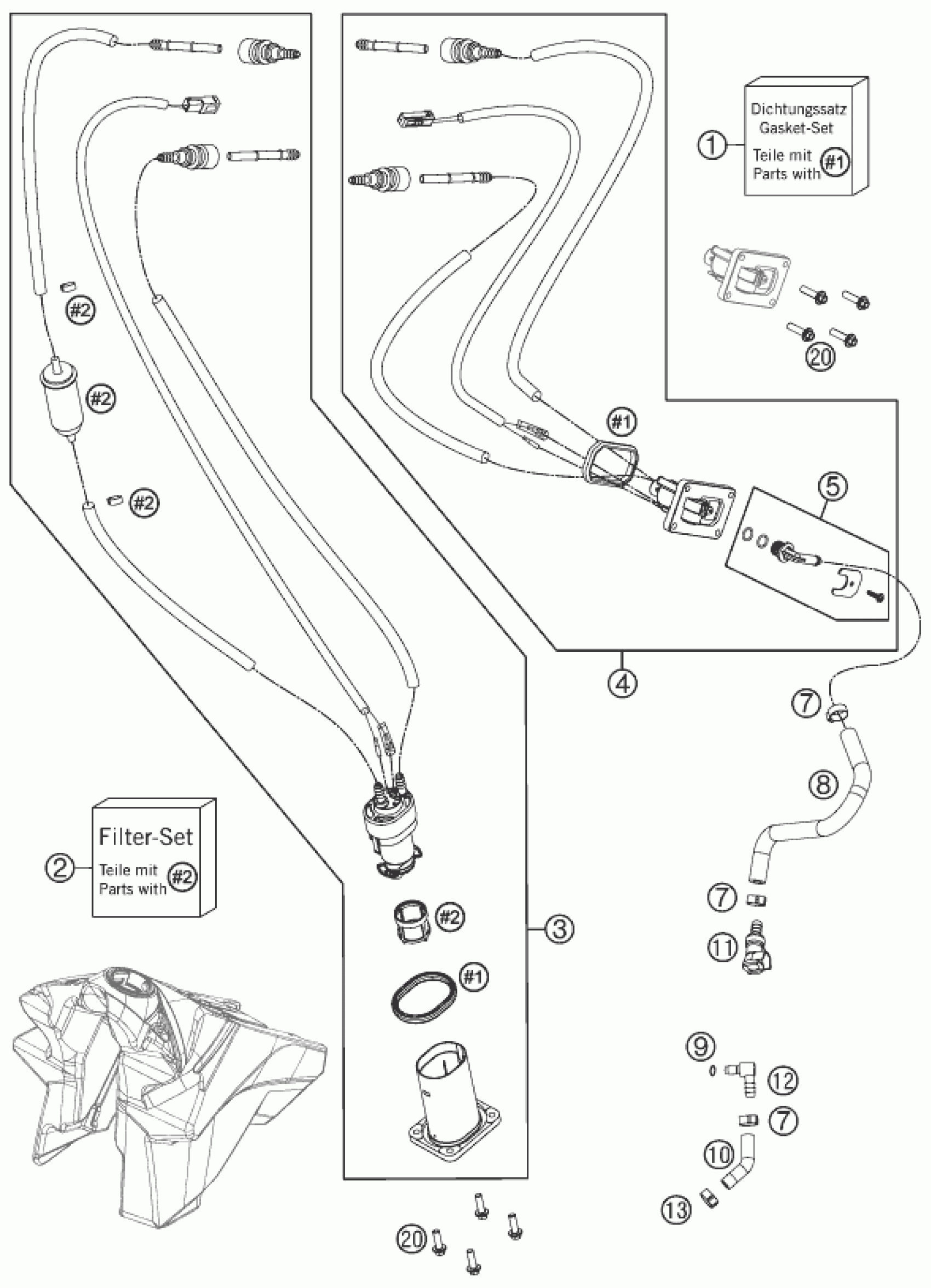

KTM 350 SX-F 2011 FUEL PUMP Diagram

#

Description

Price

1

SEALINGS KIT

75007089000

Unavailable

2

FILTER KIT

81207090000

Unavailable

3

FUEL PUMP WITH FLANGE CPL.

81207088011

Unavailable

4

PRESSURE REGULATOR CPL. 07

75007088012

Unavailable

5

HYDRAULIC CONNECTOR CPL.

75007092000

Unavailable

7

Variable one-ear clamp 15.7mm

00050157706

Unavailable

8

FUEL HOSE TANK

77207116000

Unavailable

9

O-ring VITON f. plug CPC 0

58507012000

Unavailable

10

FUEL HOSE DKK

77207016000

Unavailable

11

Clutch CPC PLCD17005, black

5850701050030

Unavailable

12

PLUG CPC

7720701000030

Unavailable

20

EJOT PT SCREW K60X25-Z SW6

0017060253

Unavailable

13

CLAMP ABA 14MM

77507017000

Unavailable
