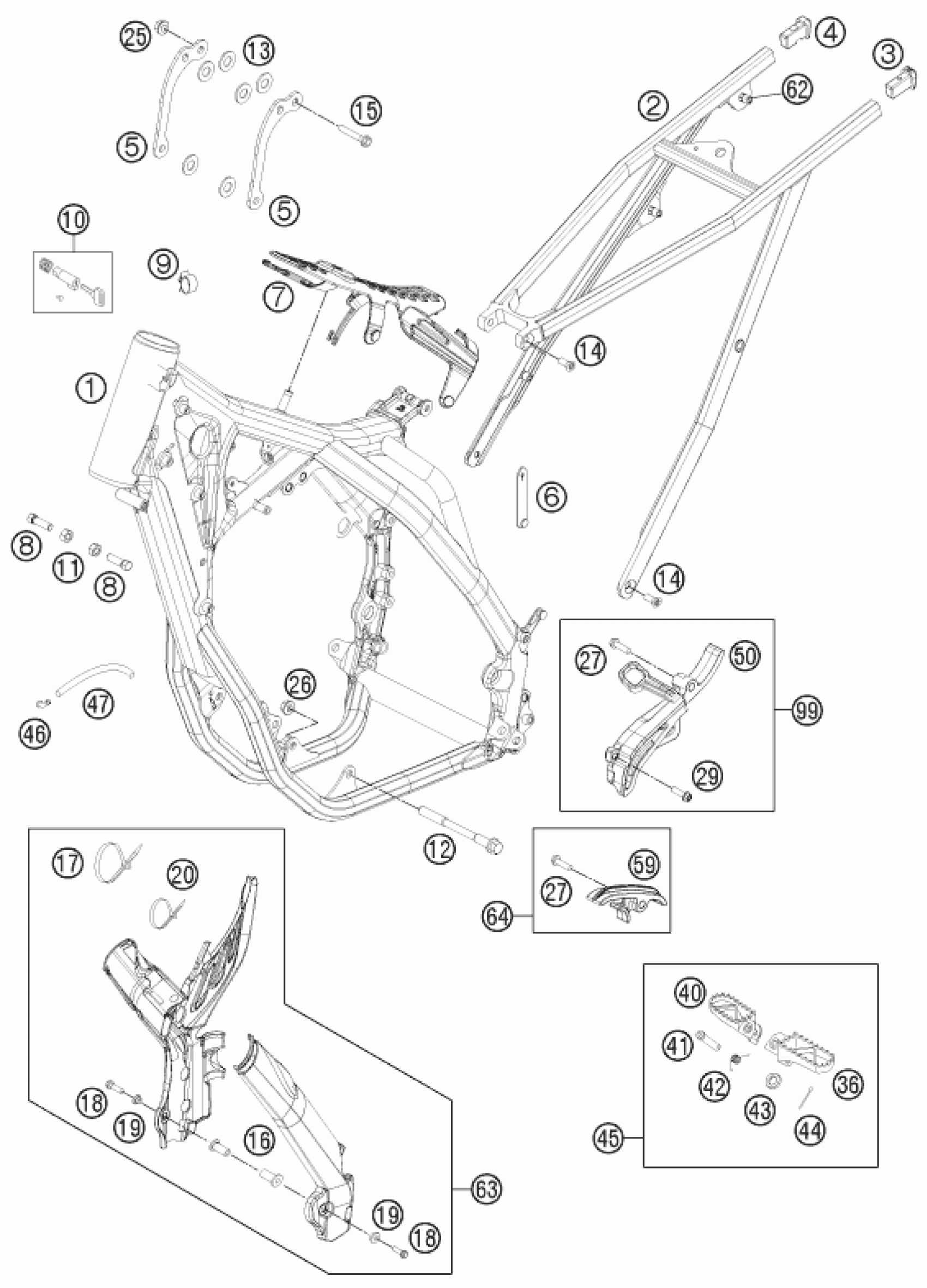

KTM 350 EXC-F SIX DAYS 2012 FRAME Diagram

#

Description
Price

2

SUB FRAME SX

77203002000

Unavailable

5

REINFORCING 350 EXC-F 2012

77503013000

Unavailable

6

RUBBER CABLE TIE 75MM 03

60011093075

Unavailable

7

TANK REST RUBBER

77207012000

Unavailable

8

SPECIAL SCREW M8X26 WS=10

59001037000

Unavailable

9

WIRING HOLDER 16MM

57013072100

Unavailable

10

STEERING HEAD LOCK 08

78003035000

Unavailable

11

Hexagon nut DIN934 M8

0934080003

Unavailable

12

engine brac.scr. M10x115

77203014000

Unavailable

13

WASHER 8,5X18X1 INOX

77003013050

Unavailable

14

FLAT HEAD SCREW M. ISA45 M8X20

0019080206S

Unavailable

15

HH COLLAR SCREW M 8X44 WS13

56530079000

Unavailable

16

BLIND PLUG-IN NUT M5 WN 22A 03

54803092050

Unavailable

17

CABLE TIE 300/4,8MM BLACK

44011076305

Unavailable

18

COU.SUNK SCR. AH ISO7380 M5X25

0738050250

Unavailable

19

Bush f. frame protection 03

54803092060

Unavailable

20

CABLE TIE 140/2,5MM BLACK

44011076140

Unavailable

25

Self locking nut M8 10.9

54310086200

Unavailable

26

SELF LOCKING NUT M10 CU WS=14

54310086100

Unavailable

27

HH collar screw M8x30

0025080306

Unavailable

29

HH collar screw M6x25 TX30

0025060256

Unavailable

36

FOOTREST L/S 08

78003040050

Unavailable

40

FOOTREST R/S 08

78003041050

Unavailable

41

PIN FOR FOOT PED 51.5X9.8 MM

54803044000

Unavailable

42

FOOTREST SPRING L/S & R/S

54603041000

Unavailable

43

washer DIN 125 A 10.5

0125100003

Unavailable

44

PIN DIN0094-3,2X25 STEEL

0094032253

Unavailable

45

FOOTREST L/S + R/S CPL. 09

78003040033

Unavailable

46

ANGLE PIECE '97

50303089000

Unavailable

47

PVC-HOSE 7X10 PER METER

55007016001

Unavailable

50

SPROCKET COVER 350 SX-F

77203096000

Unavailable

59

CHAIN SLIDER LOWER PART CPL.

77203053000

Unavailable

62

BLIND RIVET NUT EM6-60LF/HX

77303139000

Unavailable

63

PLASTIC FRAME PROTECTION SET

77203094000

Unavailable

64

CHAIN SLIDING KIT BELOW CPL.11

77203053010

Unavailable

3

SUB FRAME APPLICAT. LEFT 08

78003002010

Unavailable

4

SUB FRAME APPLICATION R/S 08

78003002020

Unavailable

1

FRAME ORANGE ''775L1''

7750300110004

Unavailable

99

SPROCKET COVER KIT

77203096010

Unavailable
