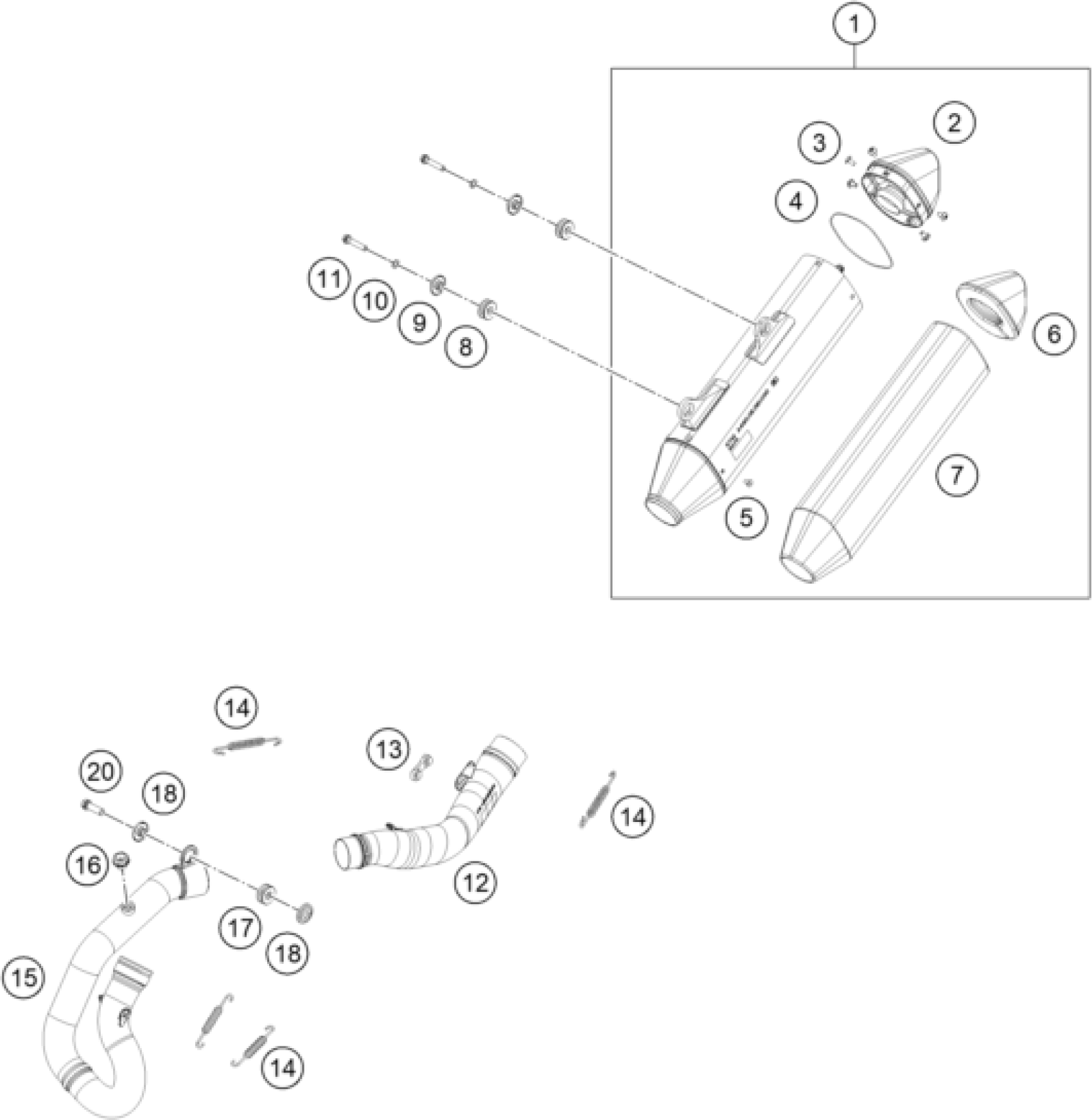

KTM 350 EXC-F 6DAYS CKD 2026 EXHAUST SYSTEM Diagram

#

Description
Price

1

Silencer

A4900508100059

Unavailable

2

Endcap cpl.

79105081160

Unavailable

3

SCREW TORX M5X10

78105081010

Unavailable

4

O-RING 80,00X2,00 VITON

0770800021

Unavailable

5

DUMMY RIVET 4,8X 8 NIRO

0011480800

Unavailable

6

Rockwool preformed

A46005078080

Unavailable

7

insulating material formed par

79105081085

Unavailable

8

DAMP. COMPON. BLACK

77205068000

Unavailable

9

BUSHING 7.5x12x28x8.3 11

77205169000

Unavailable

10

Pair of washers M6 NORDLOCK

50233041000

Unavailable

11

HH collar screw M6x30 TX30

0025060306

Unavailable

12

exhaust manifold rear

A49005010000

Unavailable

13

exhaust spacer

79105098000

Unavailable

14

Tension spring L=62mm

A46005016000

Unavailable

15

Manifold EXC / FE 350

A47005009000

Unavailable

17

Damper gray

79105068000

Unavailable

18

BUSHING 8.5x12x28x8.3

77805069000

Unavailable

20

HH collar screw M8x20

0025080206

Unavailable

16

Plug screw M12X1.25 WS17

77405009065

Unavailable
