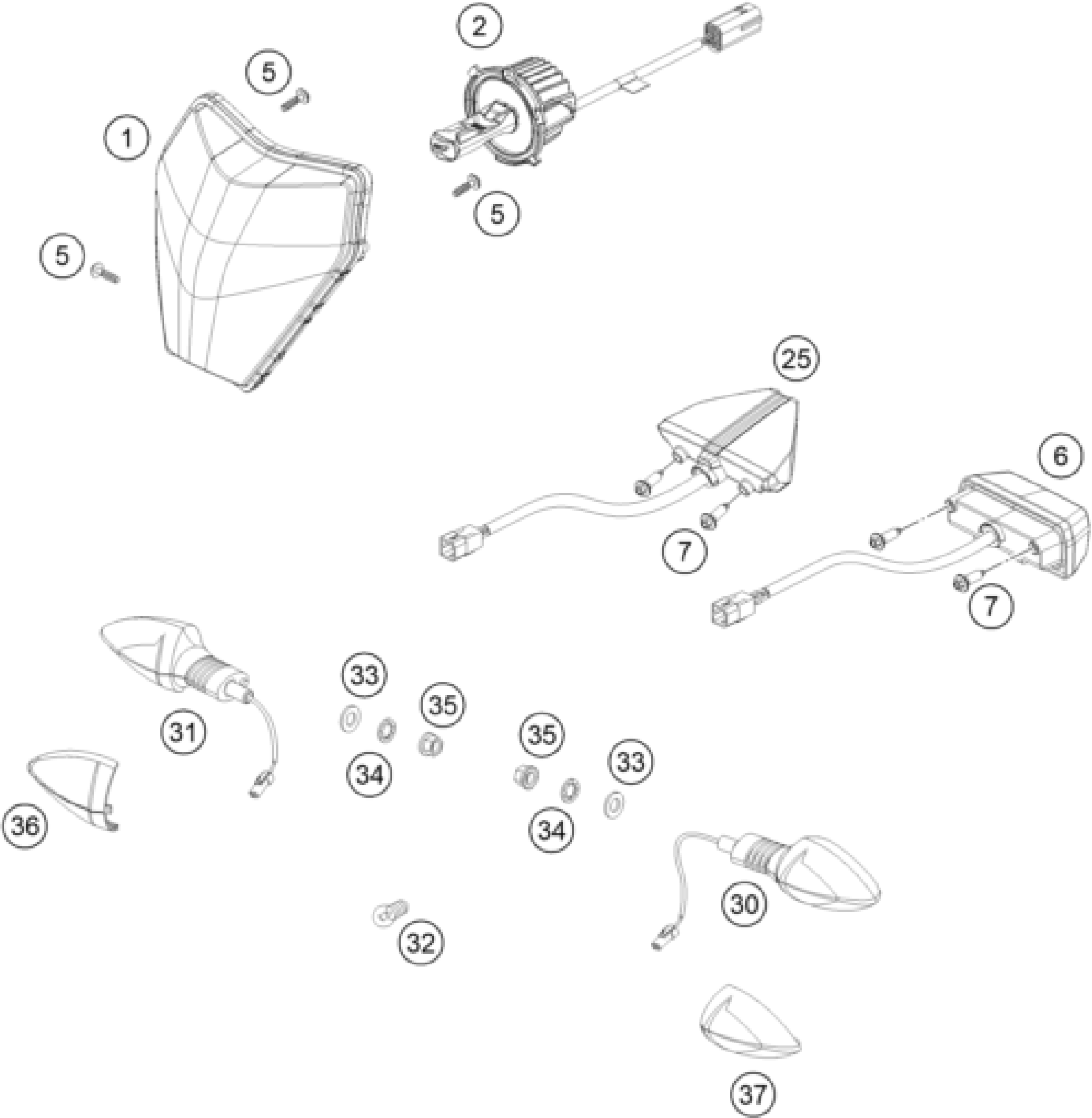

KTM 350 EXC-F 2026 LIGHTING SYSTEM Diagram

#

Description
Price

1

Headlamp KTM

A49014001080

Unavailable

2

LED-Unit

A49014002000

Unavailable

5

SCREW FOR PLASTIC K50X18 T20

0081050181

Unavailable

6

Tail light USA

79714140000

Unavailable

7

SCREW FOR PLASTIC K60X20 SW6

0017060205

Unavailable

25

Tail light

79714040000

Unavailable

30

FLASHER CPL.FRONT L/S REAR R/S

78114025000

Unavailable

31

FLASHER CPL.FRONT R/S REAR L/S

78114026000

Unavailable

32

BULB 12V ORANGE (RY10W)

60114027000

Unavailable

33

washer DIN 125 A 10.5

0125100003

Unavailable

34

LOCK WASHER DIN6797-J10,5 ZI

0797100003

Unavailable

35

HH COLLAR NUT M10X1,25 WS=13

58414030000

Unavailable

36

FLASHER LENS L/S R/S TRANSP.

78114028000

Unavailable

37

FLASHER LENS FRO.L/S-REAR R/S

78114027000

Unavailable

33

Washer DIN0433-M10

0433100003

Unavailable
