COOLING SYSTEM

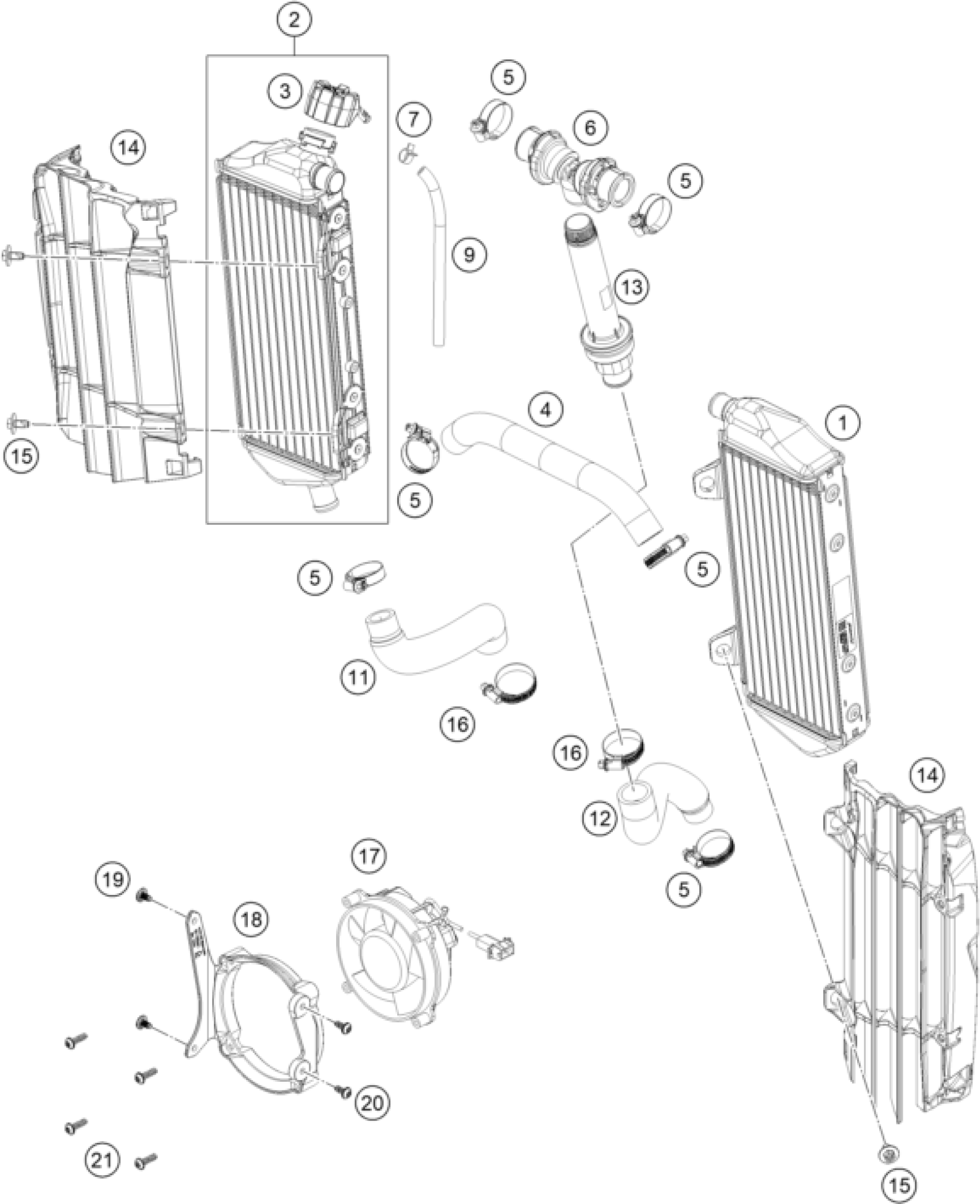

KTM 350 EXC-F 2024 COOLING SYSTEM Diagram
#
Description
Price
1
Radiator left
A46035007000
Unavailable
2
Radiator right
A46035008000
Unavailable
3
Radiator cap
A46035009000
Unavailable
4
Pre-formed hose radiator left/
A46035025000
Unavailable
5
Hose clip 18-29
0310000902900
Unavailable
6
Y-piece cmpl.
A46035071044
Unavailable
7
CLAMP YDNAC 10096F (9,6MM)
59007017000
Unavailable
9
PVC-HOSE 6X9
50335030001
Unavailable
11
Pre-formed hose engine/radiato
A46035024000
Unavailable
12
Pre-formed hose, engine/riser
A46035023000
Unavailable
13
Screw-in nozzle with thermo.re
A49035073033
Unavailable
14
Radiator protection set, black
A46035036044C1
Unavailable
15
HH ISR collar screw M6x12-10.9
0900000601203
Unavailable
16
Hose clip 20-32
0310000903200
Unavailable
17
FAN CPL. 12V LC4 2000
58435041000
Unavailable
18
Radiator fan support
79735943000
Unavailable
19
EJOT PT screw K50x12
0081050121
Unavailable
20
EJOT SHEETTRACS SCREW 50X10
0080150100
Unavailable
21
SCREW FOR PLASTIC K50X18 T20
0081050181
Unavailable
