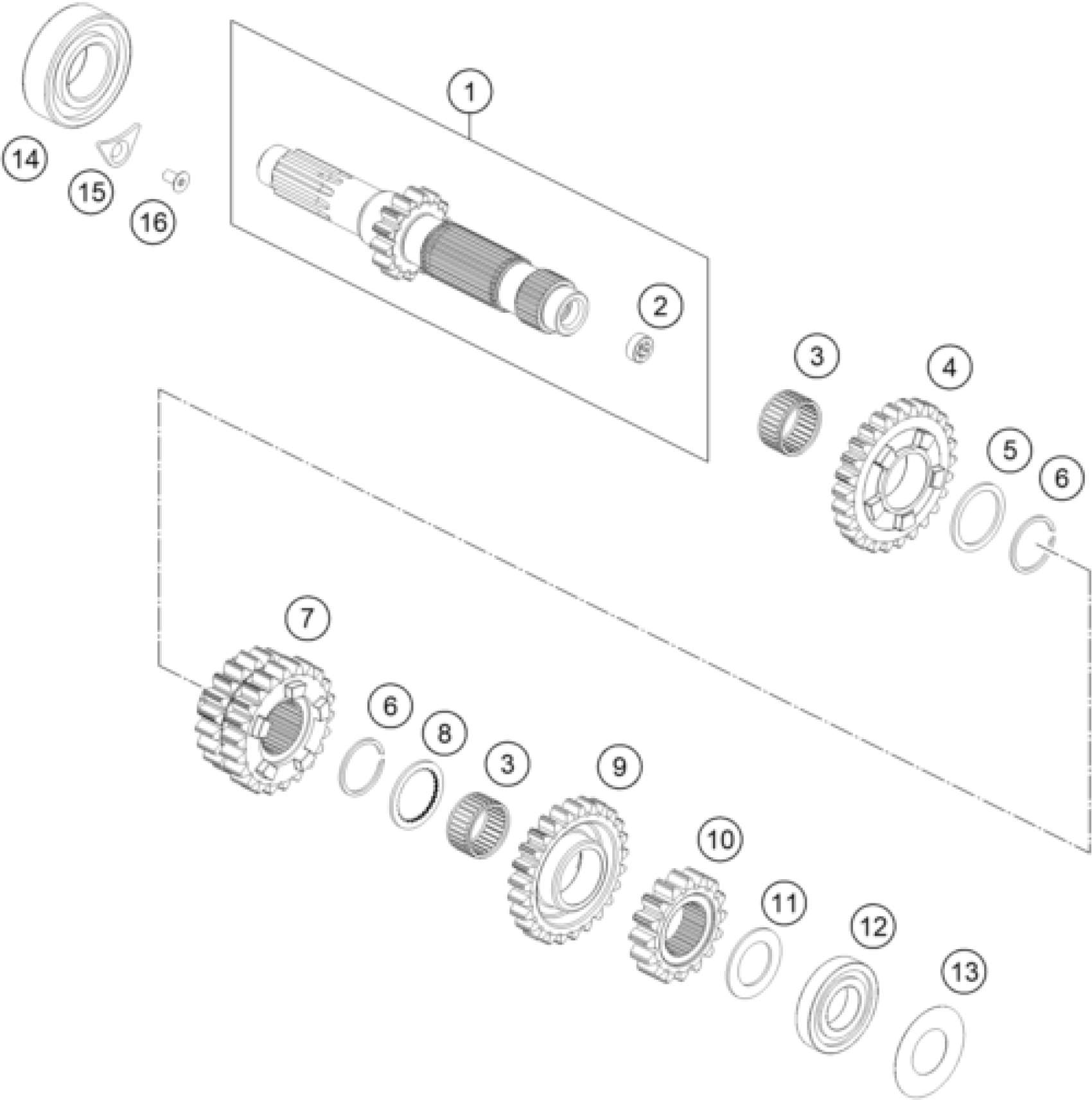

KTM 350 EXC-F 2019 TRANSMISSION I - MAIN SHAFT Diagram

#

Description
Price

1

Main shaft, cmpl.

79333101000

Unavailable

2

bushing

79133001010

Unavailable

3

NEEDLE BEAR. K 22X26X13 TN

0405222613

Unavailable

4

Idler gear, 6th

79333106000

Unavailable

5

STOP DISC 25X31X1,5

54833044000

Unavailable

6

CIRCLIP WS24

0417024000

Unavailable

7

Sliding gear, 3rd/4th gear, te

79333103000

Unavailable

8

STOP DISC 25X0,8X30X30X7H

54833043000

Unavailable

9

Idler gear, 5th gear, teeth=25

79333105000

Unavailable

10

Fixed gear, 2nd gear, teeth=16

79333102000

Unavailable

11

DISK 20,2X32X1,3

77233015000

Unavailable

12

BALL BEARING TM 16004 C4

0625160041

Unavailable

13

SPACER SHIM 21X42X0.2

77233088000

Unavailable

14

Groove ball bearing 6205 C4 NT

0625062056

Unavailable

15

RETAINING PLATE F. CS BEARING

75030085000

Unavailable

16

INT. TORX FLAT HEAD M5X12 T25

0019050121S

Unavailable
