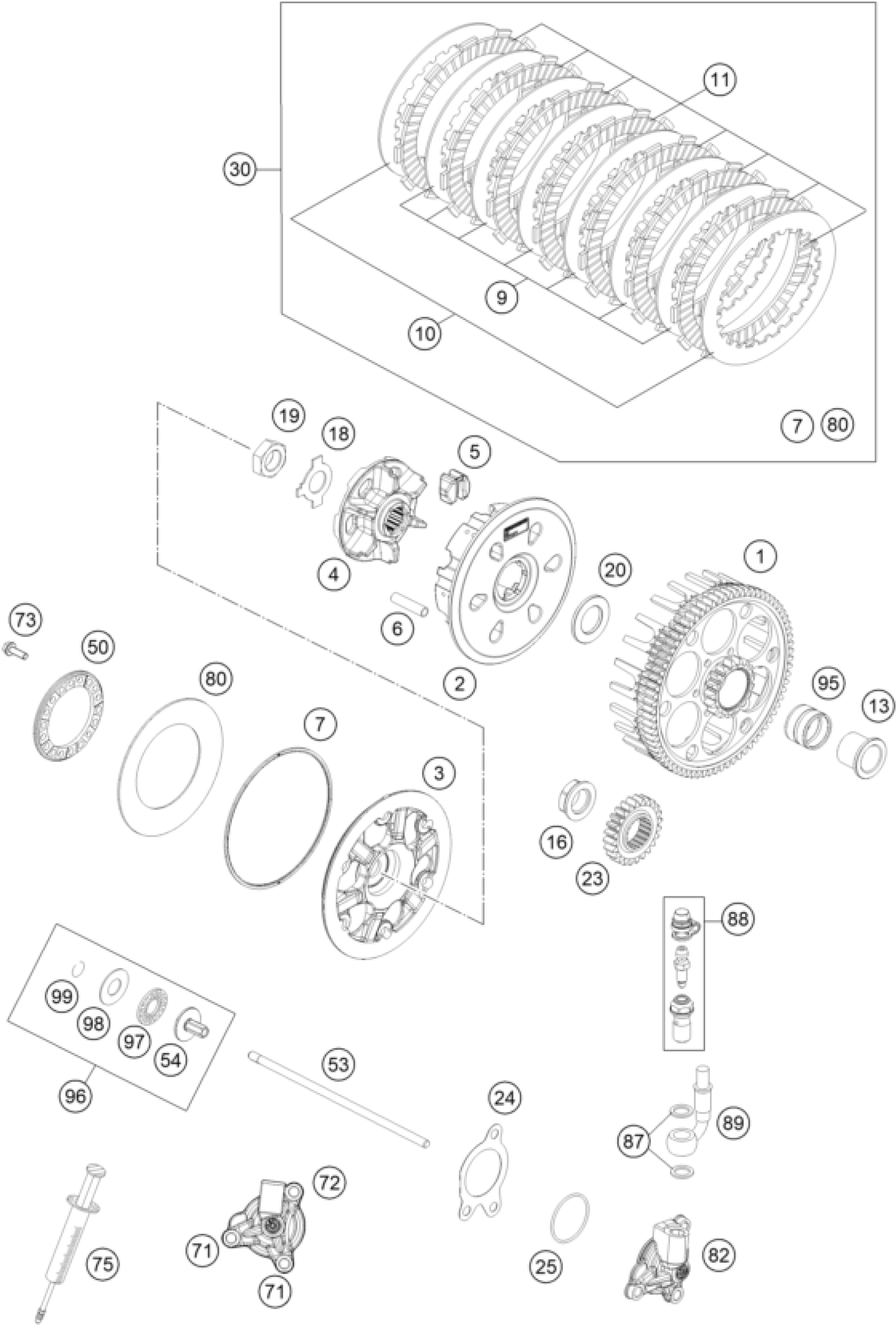

KTM 350 EXC-F 2017 CLUTCH Diagram
#
1
OUTER CLUTCH HUB EXC
79232101073
Unavailable
2
CLUTCH HUB
78132002300
Unavailable
3
CLUTCH PRESSURE CAP
79432003000
Unavailable
4
HUB
78132002111
Unavailable
5
DAMPING RUBBER
78132025100
Unavailable
6
DRIVING SLEEVE D=7,95 L=38
77232004000
Unavailable
7
WASHER 112X118X1.5
78132013000
Unavailable
9
INTERMEDIATE DISC 1,4MM 2002
59032010200
Unavailable
10
INTERMEDIATE DISC 1MM 2002
59032010100
Unavailable
11
LINING DISC
77532011000
Unavailable
13
INNER RING
77232015000
Unavailable
16
NUT PRIMARY WHEEL
77230029000
Unavailable
18
TAB WASHER
78132018000
Unavailable
19
HEXAGON NUT DIN0936-M18X1,5 R.
0936181505
Unavailable
20
WASHER 21,8 X 37 X 5,1
77232009000
Unavailable
23
PRIMARY GEAR 24T.
79232023024
Unavailable
24
GASKET FOR OUTPUT CYLINDER
79232065000
Unavailable
25
O-ring 30x1.5 NBR 70
0770300015
Unavailable
30
CLUTCH KIT 350 EXC-F 12-15
78132010110
Unavailable
50
SPRING RING
78132006100
Unavailable
53
PUSH ROD
79232054000
Unavailable
54
PRESSURE PIECE
78032057000
Unavailable
71
HH collar screw M6x16 TX30
0025060166
Unavailable
72
HH collar screw M6x35 TX30
0025060356
Unavailable
73
HH collar screw M5x16 TX30
0025050166
Unavailable
75
VENT INJEKTION HYDR. CLUTCH
50329050000
Unavailable
80
BELLEVILLE SPRING 71X115X1,5 I
78132005000
Unavailable
82
OUTPUT CYLINDER CPL.
79232061044
Unavailable
87
SEAL RING CU DIN7603- 8X12X1
0603082121
Unavailable
88
BLEEDER SCREW CPL.
79032064000
Unavailable
89
CLUTCH PIPE
79232063000
Unavailable
95
NEEDLE BEARING K26X30X22ZW.KSE
56532095000
Unavailable
96
PRESSURE PIECE CPL. 08
78032057044
Unavailable
97
AXIAL NEEDLE BEARING AXK 1226
54637097200
Unavailable
98
AXIAL WASHER AS1226 12X26X1
54637098200
Unavailable
99
CIRCLIP DIN7993-RW12
0993012000
Unavailable
