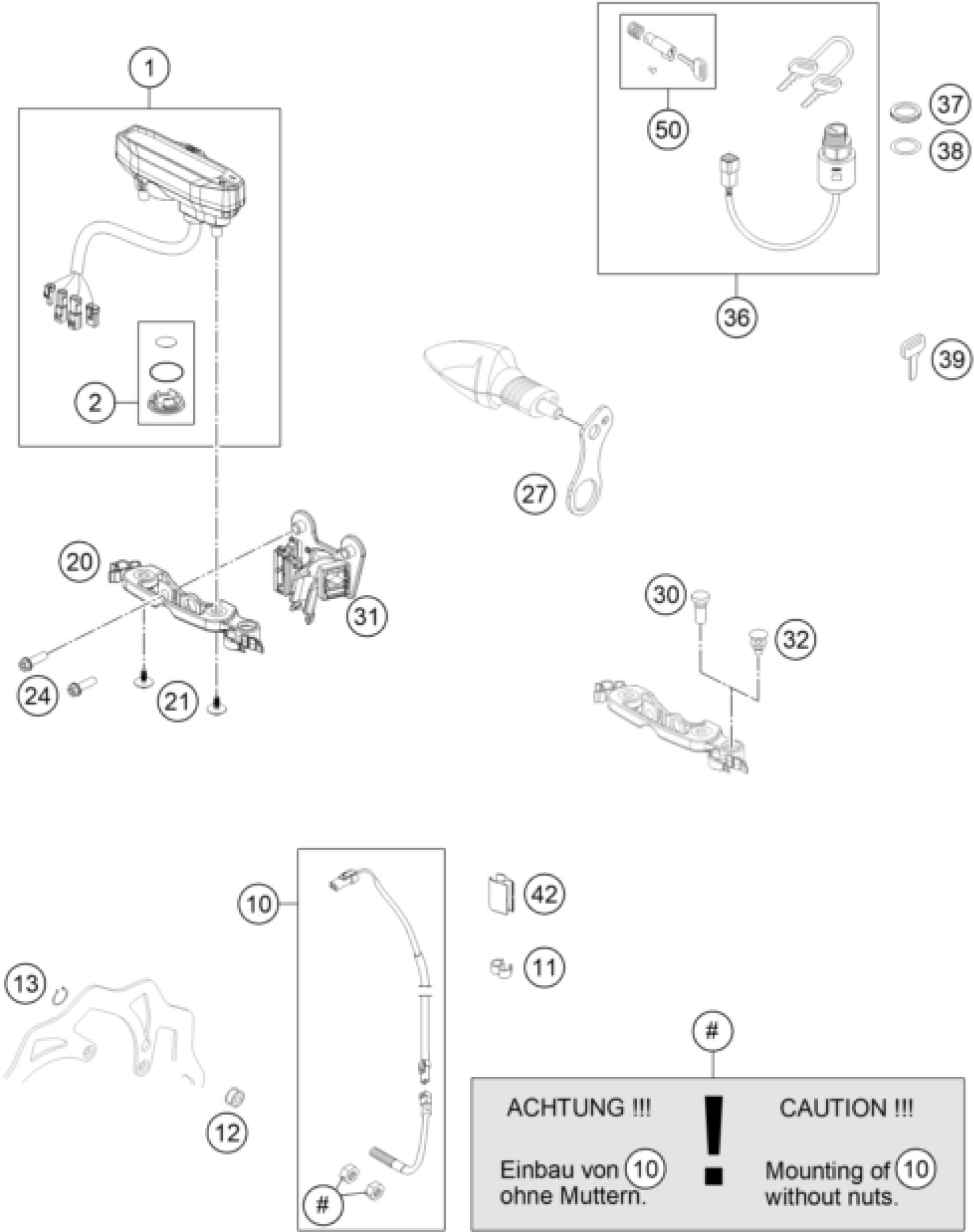

KTM 350 EXC-F 2015 INSTRUMENTS / LOCK SYSTEM Diagram

#

Description
Price

32

Plug SFL16

50210086000

Unavailable

1

SPEEDOMETER

77714069200

Unavailable

10

CABLE FOR DIGITAL SPEEDOM. 06

54814068100

Unavailable

11

CLIP 5/7 MM 06

60111094000

Unavailable

12

MAGNET FOR DIGITAL SPEEDOM. 03

54814069050

Unavailable

13

CIRCLIP DIN0471- 9X1 INOX

0471009104

Unavailable

20

SPEEDOMETER BRACKET EXC/XCW 14

77714060000

Unavailable

21

EJOT DELTA PT SCREW 45X12-Z

0081645121

Unavailable

24

HH collar screw M6x20 TX30

0024060206

Unavailable

27

BRACKET IGNITION LOCK

78111065050

Unavailable

30

FLASHER INDICAT.LIGHT GREEN'98

58011024300

Unavailable

42

CABLE SUPPORT 10/6MM 06

54813026000

Unavailable

36

IGNITION LOCK SET STR.LE 08

78011065100

Unavailable

37

IGNITION LOCK NUT M24X1

50311066050

Unavailable

38

WASHER F. IGNITION LOCK 03

58411066450

Unavailable

39

KEY BLANK BLACK ''T'' GR

40011166200

Unavailable

50

STEERING HEAD LOCK 08

78003035000

Unavailable

31

SUPPORT BRACKET

77711083000

Unavailable

2

BATTERY COVER F. SPEEDOMETER

77714069010

Unavailable
