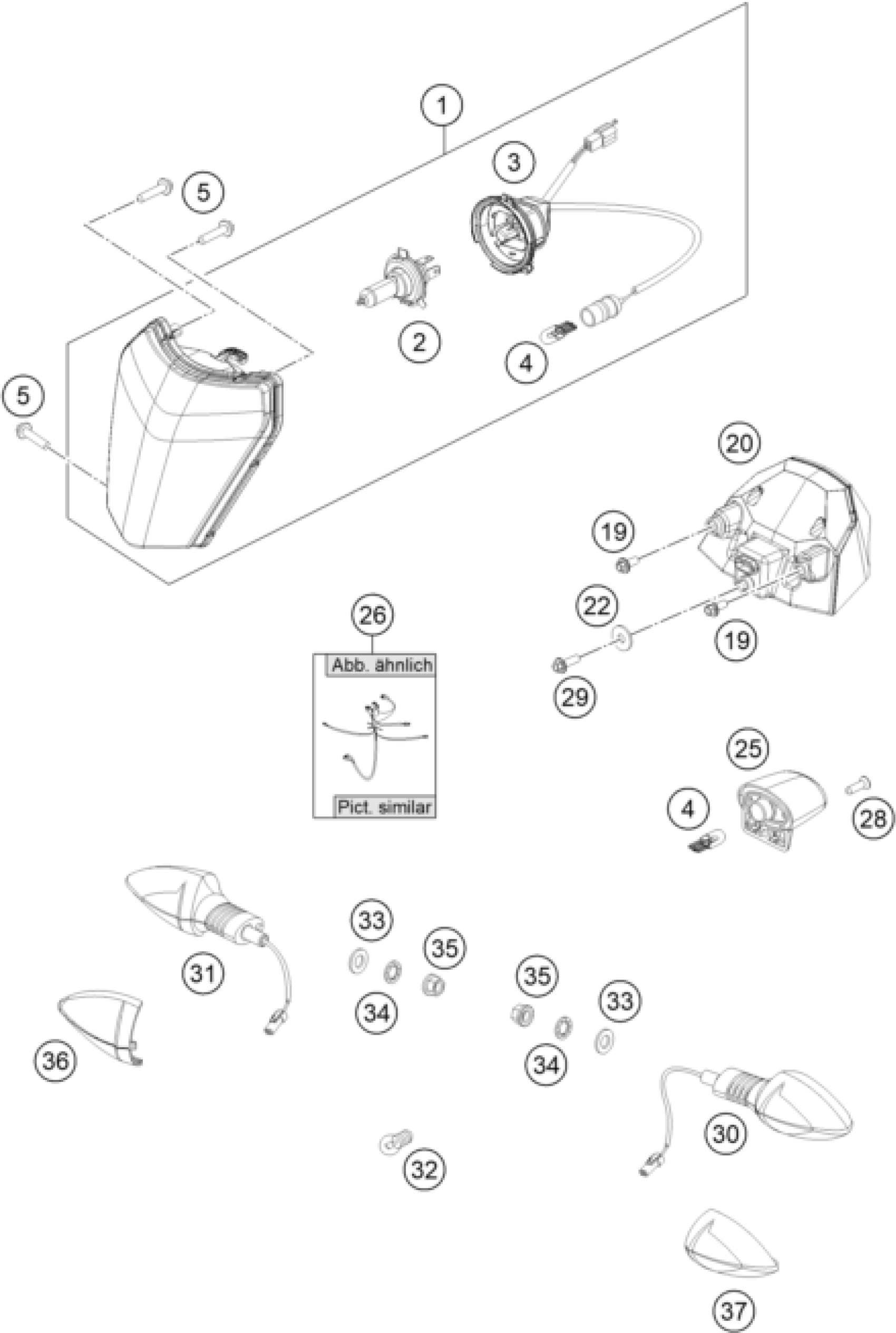

KTM 350 EXC-F 2014 LIGHTING SYSTEM Diagram

#

Description
Price

1

HEAD LIGHT CPL. 2013

78114001000

Unavailable

2

BULB HS1 12V 35/35W WHITE

54611038012

Unavailable

4

BULB 12V 5W (W2,1X9,5D) PHIL.

49011435100

Unavailable

19

HH COLLAR SCREW M 5X12 WS=6

0014050123

Unavailable

20

REAR LIGHT USA 2014

78114140000

Unavailable

22

washer DIN 9021 A - 5.3

0021050003

Unavailable

25

LICENSE PLATE ILLUMINATION 07

75014047000

Unavailable

26

FLASHER WIR. HARNESS 14

77711081000

Unavailable

28

SCREW FOR PLASTIC 50X18 T20

0081250181

Unavailable

29

HH COLLAR SCREW M 5X16 WS=6

0014050163

Unavailable

30

FLASHER CPL.FRONT L/S REAR R/S

78114025000

Unavailable

31

FLASHER CPL.FRONT R/S REAR L/S

78114026000

Unavailable

32

BULB 12V ORANGE (RY10W)

60114027000

Unavailable

33

washer DIN 125 A 10.5

0125100003

Unavailable

34

LOCK WASHER DIN6797-J10,5 ZI

0797100003

Unavailable

35

HH COLLAR NUT M10X1,25 WS=13

58414030000

Unavailable

36

FLASHER LENS L/S R/S TRANSP.

78114028000

Unavailable

37

FLASHER LENS FRO.L/S-REAR R/S

78114027000

Unavailable

3

LAMP BRACKET CPL. 2014

78114001050

Unavailable

5

SCREW FOR PLASTIC K50X18 T20

0081050181

Unavailable
