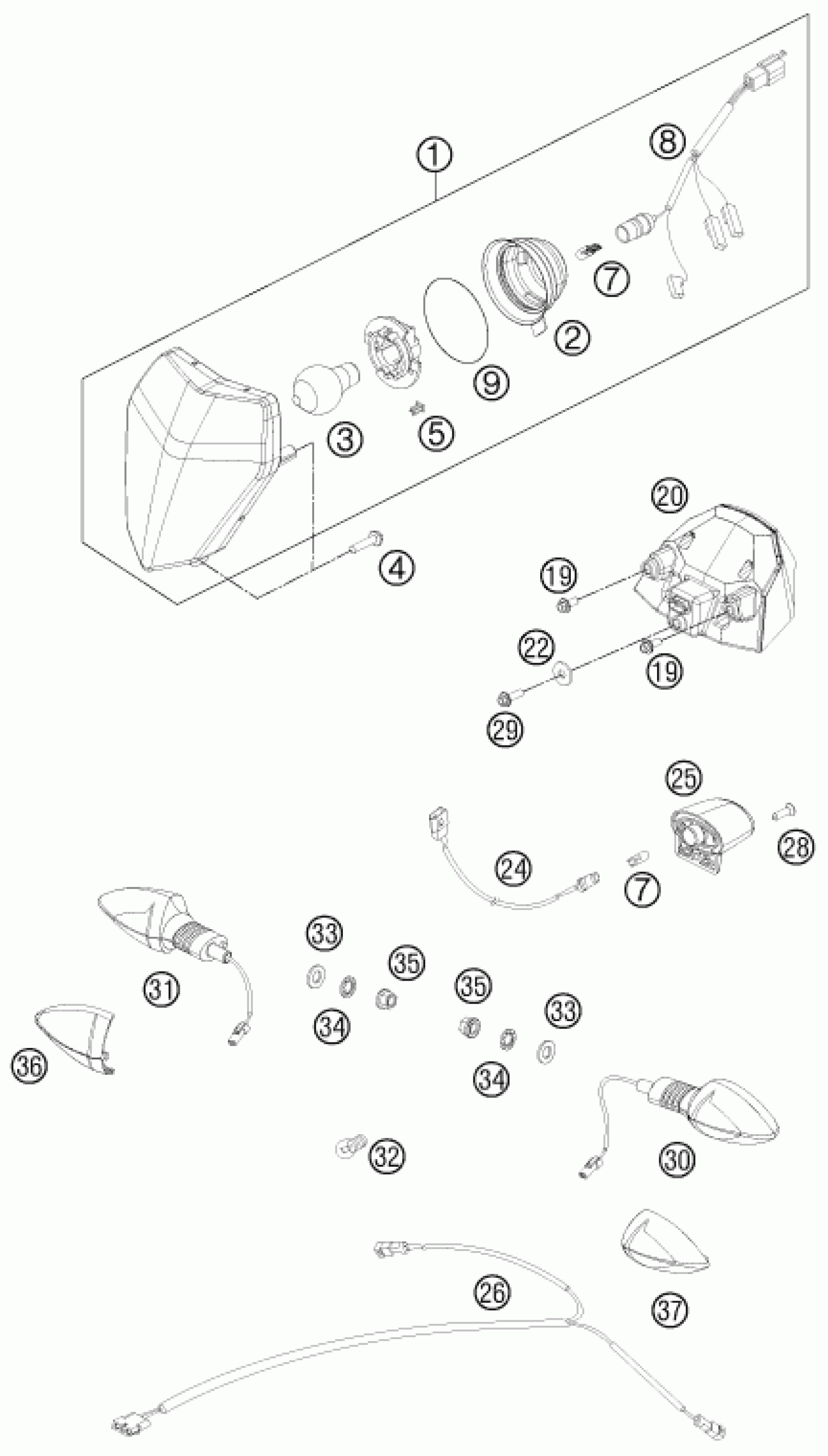

KTM 350 EXC-F 2012 LIGHTING SYSTEM Diagram

#

Description
Price

1

HEAD LIGHT CPL. EXC-EU 08

78014001000

Unavailable

2

RUBBER CAP FOR HEAD LIGHT 05

54814001050

Unavailable

3

BILUX-BULB 12V 35/35W BA20D

44111038000

Unavailable

4

SCREW FOR PLASTIC K50X18 T20

0081050181

Unavailable

5

DRAIN HOLE COVER

78014009000

Unavailable

7

BULB 12V 5W (W2,1X9,5D) PHIL.

49011435100

Unavailable

8

CABLE FOR HEAD LIGHT 2005

54811001050

Unavailable

9

O-RING 35,00X32,00 NBR

0770350032

Unavailable

20

REAR LIGHT

83014140000

Unavailable

24

WIRING HARN. LIC. PLATE ILLUM.

76511078000

Unavailable

25

LICENSE PLATE ILLUMINATION 07

75014047000

Unavailable

26

REAR FLASHER WIR. HARNESS 12

77411081000

Unavailable

28

SCREW FOR PLASTIC 50X18 T20

0081250181

Unavailable

29

HH COLLAR SCREW M 5X16 WS=6

0014050163

Unavailable

30

FLASHER CPL.FRONT L/S REAR R/S

78114025000

Unavailable

31

FLASHER CPL.FRONT R/S REAR L/S

78114026000

Unavailable

32

BULB 12V ORANGE (RY10W)

60114027000

Unavailable

33

washer DIN 125 A 10.5

0125100003

Unavailable

34

LOCK WASHER DIN6797-J10,5 ZI

0797100003

Unavailable

35

HH COLLAR NUT M10X1,25 WS=13

58414030000

Unavailable

22

washer DIN 9021 A - 5.3

0021050003

Unavailable

19

HH COLLAR SCREW M 5X12 WS=6

0014050123

Unavailable

36

FLASHER LENS L/S R/S TRANSP.

78114028000

Unavailable

37

FLASHER LENS FRO.L/S-REAR R/S

78114027000

Unavailable
