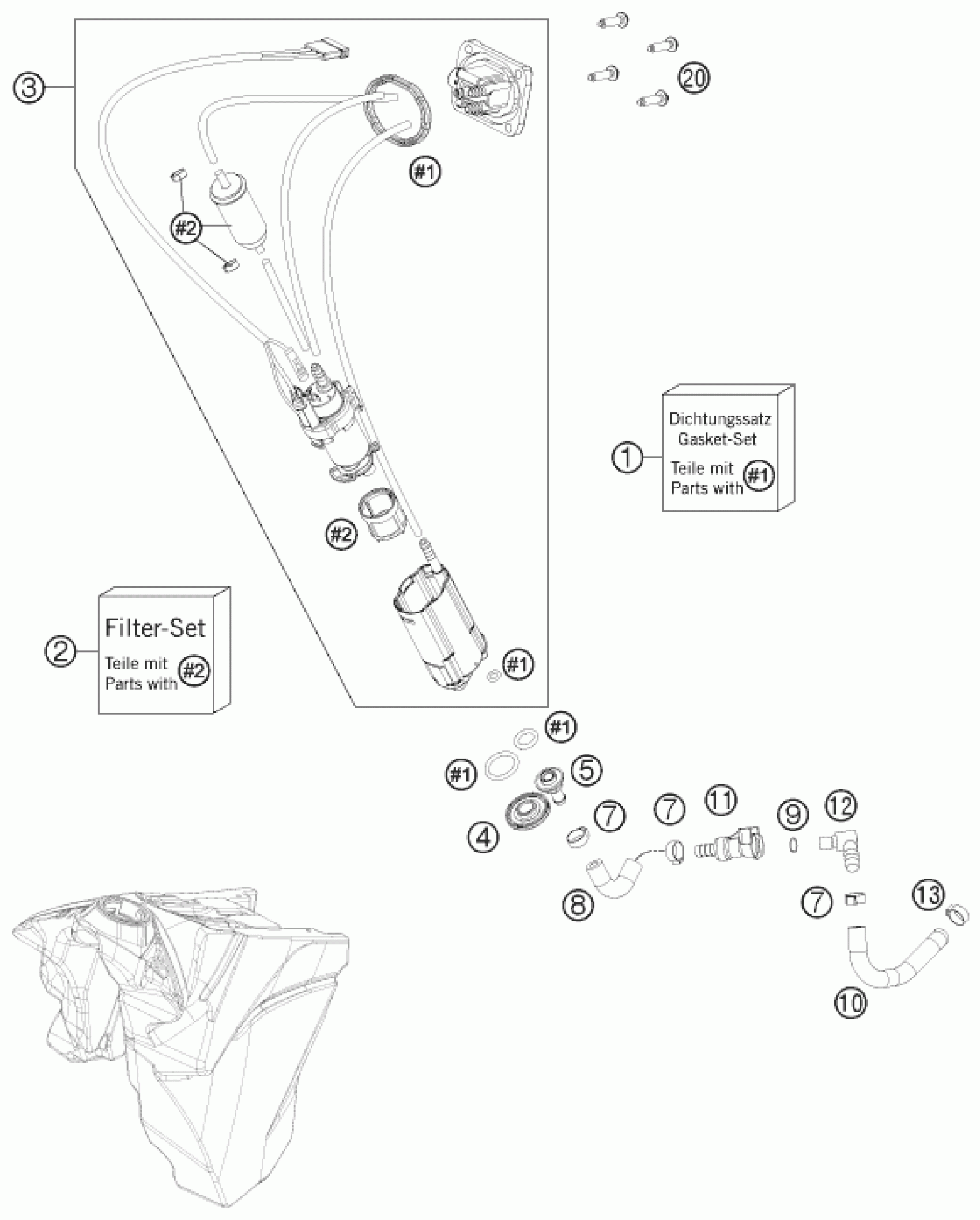

KTM 350 EXC-F 2012 FUEL PUMP Diagram

#

Description

Price

1

GASKET KIT

78107089000

Unavailable

2

FILTER KIT

81207090000

Unavailable

3

FUEL PUMP CPL. EXC

78107088000

Unavailable

4

NUT F. FUEL PUMP M12

78107088014

Unavailable

5

FUEL CONNECTOR M8

78107088017

Unavailable

7

Variable one-ear clamp 15.7mm

00050157706

Unavailable

8

FUEL HOSE TANK

77407116000

Unavailable

9

O-ring VITON f. plug CPC 0

58507012000

Unavailable

10

FUEL HOSE PREFORMED THR.BODY

77407016000

Unavailable

11

Clutch CPC PLCD17005, black

5850701050030

Unavailable

12

PLUG CPC

7720701000030

Unavailable

20

EJOT PT SCREW K60X25-Z SW6

0017060253

Unavailable

13

CLAMP ABA 14MM

77507017000

Unavailable
