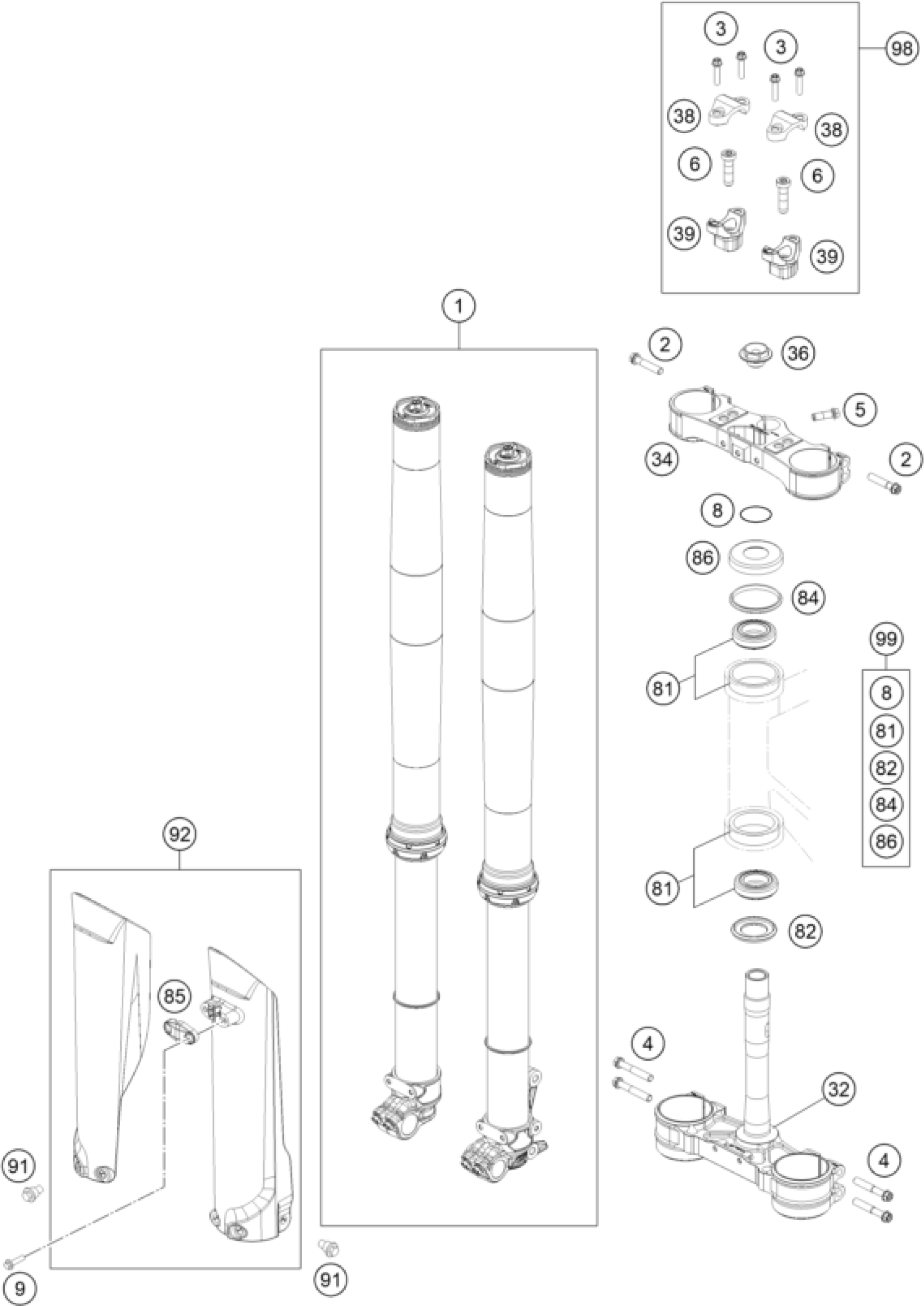

KTM 300 XC-W TPI ERZBERGRODEO 2020 FRONT FORK, TRIPLE CLAMP Diagram

#

Description
Price

1

Fork Enduro 250/300

14188T6301

Unavailable

2

HH COLLAR SCREW M8X40 TX40

0025080406

Unavailable

3

HH collar screw M8x25

0025080256

Unavailable

5

SK.COLLAR WASHER M 8X25 SW=10

0015080256

Unavailable

6

AH-COLLAR SCREW M10X35 ISA45

0032100356S

Unavailable

8

O-RING 25X3,55 NBR70 05

0770025035

Unavailable

9

SCREW F. PLASTIC K60X20AL SW6

0017060206

Unavailable

32

BOTTOM TRIPLE CLAMP CPL ORANGE

7770113202204

Unavailable

34

TOP TRIPLE CLAMP X=22MM OR

7720103402204

Unavailable

36

AXLESCREW M20X1.5 SW17

70009082000

Unavailable

38

HANDLEBAR CLAMP 28MM

77201038000

Unavailable

39

Handlebar mount D28mm-H32mm

59401039032

Unavailable

39

Handlebar mount D28mm-H37mm

59401039037

Unavailable

39

Handlebar mount D28mm-H42mm

59401039042

Unavailable

81

TAPERED ROLLER BEARING CPL. 06

54201081100

Unavailable

82

O-RING SUPPORT W. SEALING LIP

77701084000

Unavailable

84

STEARING HEAD GASKET TOP

54601184000

Unavailable

85

Clamp for brake hose, black

7770108510030

Unavailable

86

STEERING HEAD COVER

78101086000

Unavailable

91

SPECIAL SCREW M6X12,5 WS=8

59001092050

Unavailable

92

Fork protection kit Erzberg Ed

77701094100C1C

Unavailable

98

HANDLEBAR SUPPORT KIT D28/H37

00050000921

Unavailable

99

STEARING HEAD REP. KIT 06-15

00050000930

Unavailable

4

HH collar screw M8x50 TX40

0025080506

Unavailable
