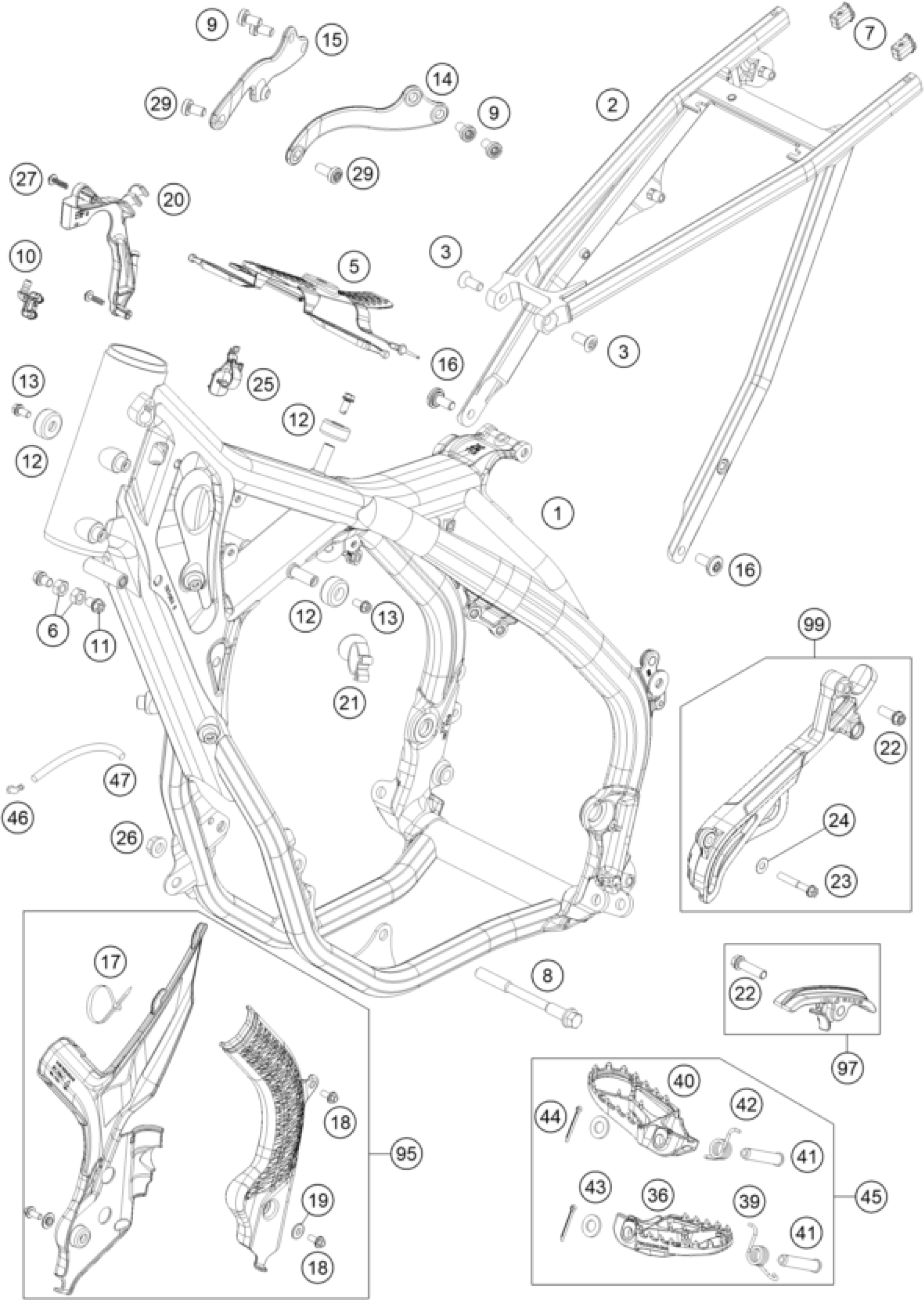

KTM 300 XC-W TPI ERZBERGRODEO 2020 FRAME Diagram

#

Description
Price

1

Frame 557T2

55703101000EB

Unavailable

2

Subframe

79103002100

Unavailable

3

FLAT HEAD SCREW M. ISA45 M8X20

0019080206S

Unavailable

5

TANK REST RUBBER

79607012000

Unavailable

6

Hexagon nut DIN934 M8

0934080003

Unavailable

7

Rear frame bit

79103002010

Unavailable

8

engine brac.scr. M10x115

77203014000

Unavailable

9

AH-COLLAR SCREW M8X15 TORX45

0035080156S

Unavailable

10

wire holder / fuel ventilation

79107013010

Unavailable

11

SPECIAL SCREW M8X26 WS=10

59001037000

Unavailable

12

TANK ROLLER 12X26X12 '98

50307014000

Unavailable

13

COLLAR SCREW M6X13 ISA30

0026060136

Unavailable

14

Engine brace, left 250/300 TPI

5570301300001S

Unavailable

15

Engine brace, right 250/300 TP

5570301400001S

Unavailable

16

Special screw M8X18 TORX45 SL

79003003000

Unavailable

17

CABLE TIE 300/4,8MM BLACK

44011076305

Unavailable

17

cable tie 140/ 3,5 mm Schwarz

44011176140

Unavailable

18

HH COLLAR SCREW M 5X12 WS=6

0014050123

Unavailable

19

Bush f. frame protection 03

54803092060

Unavailable

20

Cable holder throttle cable gu

79711013000

Unavailable

21

CABLE SUPPORT 07

61111041000

Unavailable

22

HH collar screw M8x30

0025080306

Unavailable

23

HH collar screw M6x40 TX30

0025060406

Unavailable

24

WASHER DIN0125-A 6,4

0125060003

Unavailable

25

wire holder le 19

79111093000

Unavailable

26

SELF LOCKING NUT M10 CU WS=14

54310086100

Unavailable

27

SCREW FOR PLASTIC K50X18 T20

0081050181

Unavailable

29

SHCS M8x20 TX45

0035080206S

Unavailable

36

FOOTREST L/S EXC 2017

79603040000

Unavailable

39

FOOTREST SPRING L/S 2016

79003045000

Unavailable

40

FOOTREST R/S EXC 2017

79603041000

Unavailable

41

PIN FOR FOOT PED 51.5X9.8 MM

54803044000

Unavailable

42

FOOTREST SPRING R/S 2016

79003044000

Unavailable

43

washer DIN 125 A 10.5

0125100003

Unavailable

44

PIN DIN0094-3,2X25 STEEL

0094032253

Unavailable

45

FOOTREST-SET

79603040033

Unavailable

46

ANGLE PIECE '97

50303089000

Unavailable

47

preformed hose 6x10 ECO

50430087000

Unavailable

95

Frame protection set

7910309400030

Unavailable

97

CHAIN SLIDING KIT BELOW CPL.16

79003053010

Unavailable

99

SPROCKET COVER KIT

55403096010

Unavailable
