LUBRICATING SYSTEM

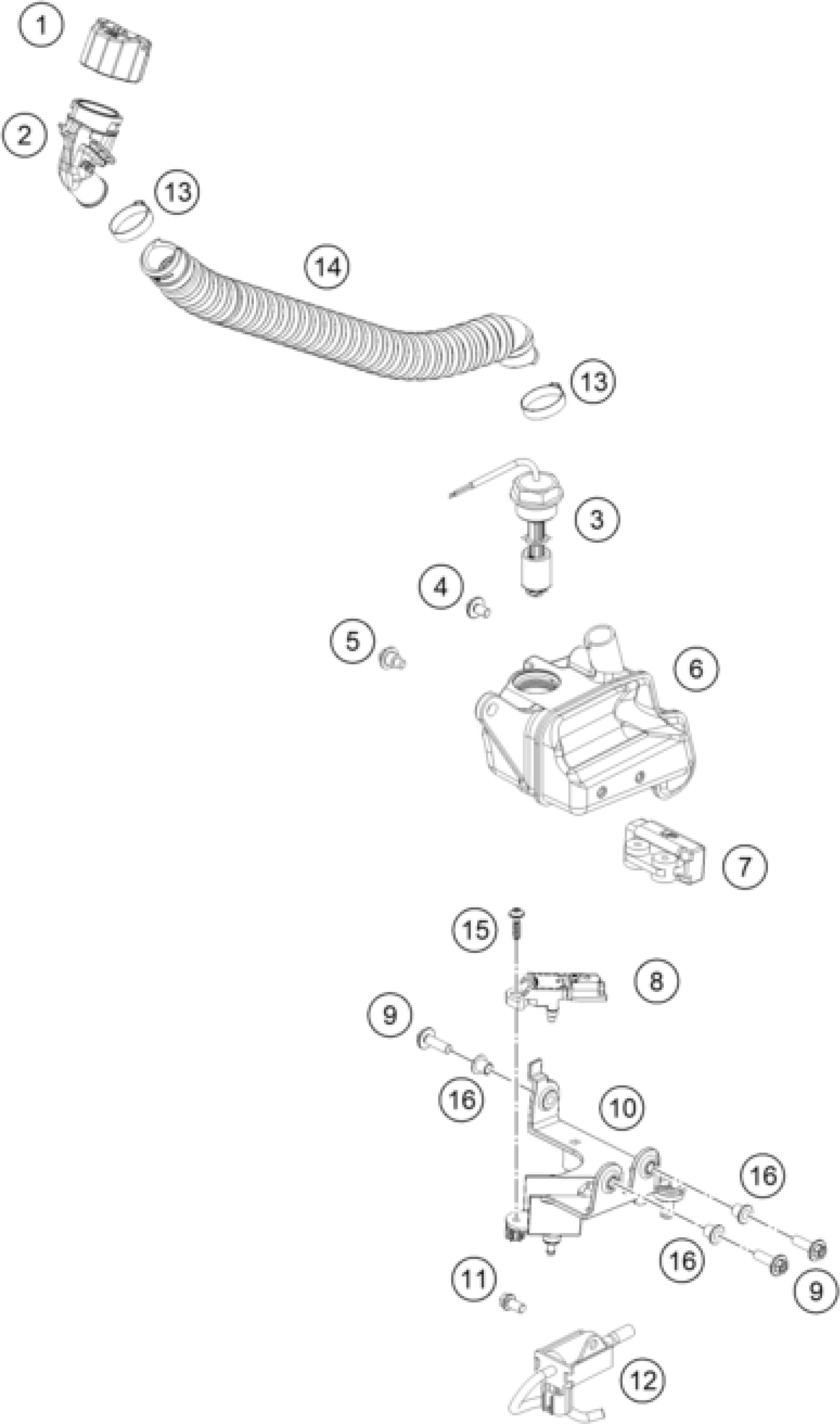

KTM 300 XC-W TPI 2019 LUBRICATING SYSTEM Diagram
#
Description
Price
1
Oilfillercap cpl.
55638070033
Unavailable
2
Filler plug oil tank
55638061020
Unavailable
3
Oil level sensor
55638062000
Unavailable
4
HH COLLAR SCREW M6X10 TX30
0024060106
Unavailable
5
SPECIAL SCREW M6X12,5 WS=8
59001092050
Unavailable
6
Oil tank
55638061200
Unavailable
7
ROLLOVER SENSOR 05
61041088000
Unavailable
8
Crankcase Presure Sensor CCP
55641075000
Unavailable
9
HH collar screw M6x15 TX30
0024060156
Unavailable
10
Oil pump support
55638061040
Unavailable
11
HH collar screw M6x12 TX30
0025060126
Unavailable
12
Oil pump
55638064000
Unavailable
13
VARIABLE ONE-EAR CLAMP 27,1MM
00050271708
Unavailable
14
Tube
55638065200
Unavailable
15
SCREW FOR PLASTIC K50X18 T20
0081050181
Unavailable
16
spacer bushing for speedometer
58314060050
Unavailable
17
Clamp 2
55538087000
Unavailable
18
Clamp 1
55538086000
Unavailable
19
Tube set, oil tank
55538083044
Unavailable
