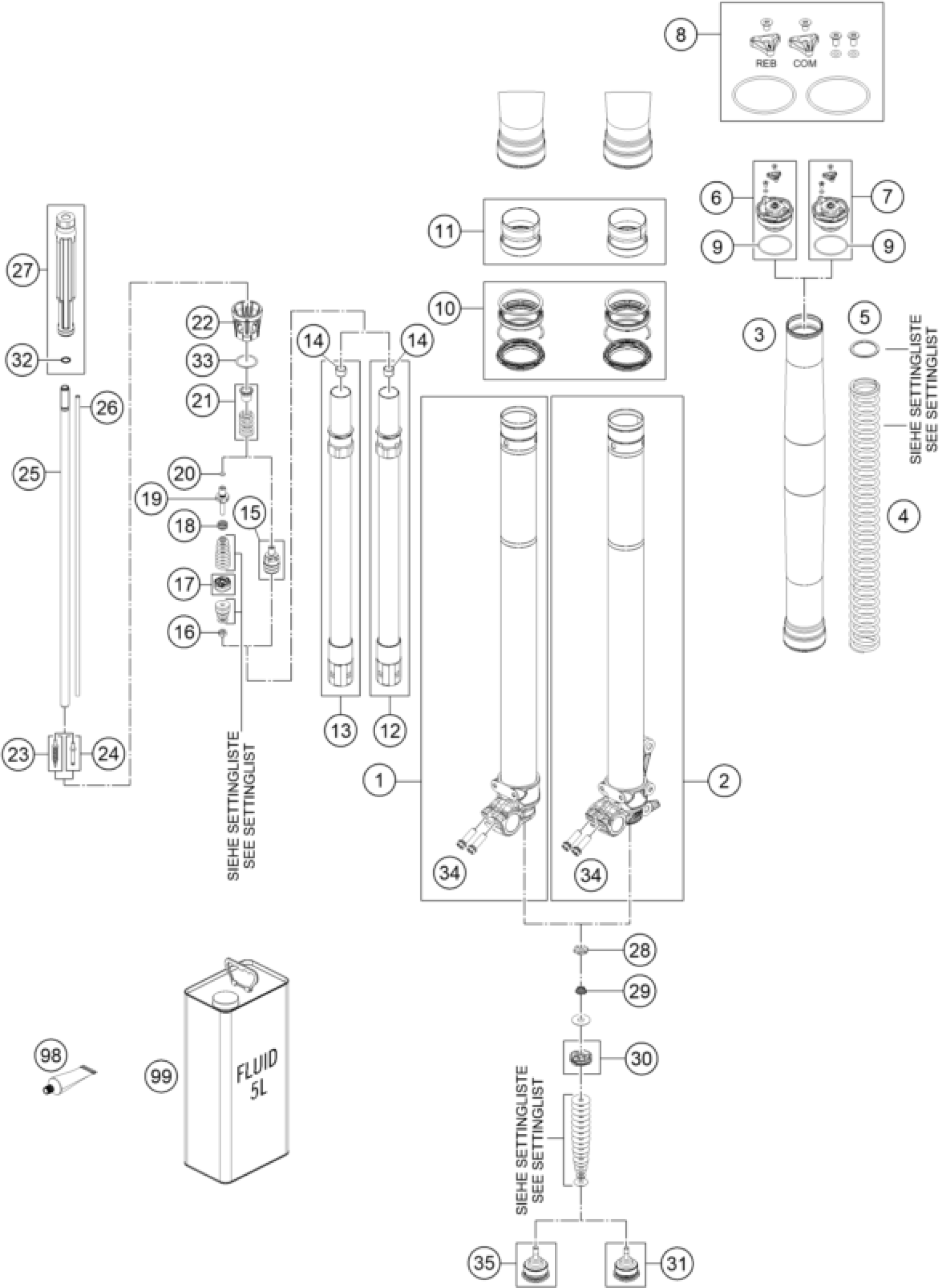

KTM 300 XC-W Six Days TPI 2019 FRONT FORK DISASSEMBLED Diagram

#

Description
Price

1

Axleclamp OC right cpl. with t

48601933S1

Unavailable

2

Axleclamp OC left cpl. with tu

48601932S1

Unavailable

3

Fork outer tube 49,13x577 dt54

48601671

Unavailable

4

SPRING 3,8N/MM SET D=4,9MM

91410099S

Unavailable

4

SPRING 4,0N/MM SET D=4,9MM

91410100S

Unavailable

4

SPRING 4,2N/MM SET D=4,9MM

91410101S

Unavailable

4

SPRING 4,4N/MM SET D=4,9MM

91410102S

Unavailable

4

FORK SPRING L= 470 4,6 N/MM SE

91410103S

Unavailable

4

SPRING 4,8N/MM SET D=4,9MM

91410104S

Unavailable

5

Washer 35x43x2,5 plastic

48600456

Unavailable

6

Screw cap M51x1,5 PA right cpl

48601680S2

Unavailable

7

Screw cap M51x1,5 PA left cpl.

48601680S3

Unavailable

8

SCREW CAP SMALL PART KIT

R14033

Unavailable

9

O-ring 46x2 NBR70 siliconized

48600048

Unavailable

10

Repair kit fork 48mm

R14046

Unavailable

11

Guide bushing set fork 48mm

R14047

Unavailable

12

Tube, including screw sleeve w

48600763S5

Unavailable

13

tube incl. screw sleeve

48600763S6

Unavailable

14

Guide bushing 12x14x10

48600430

Unavailable

15

Tap compression cpl.

48601843S3

Unavailable

16

Nut M6x0,5 h6,5 WAF10 rebound

40540486

Unavailable

17

Piston 6x23x13 cpl.

48601817S

Unavailable

18

Spring (11,4) 0,4-8 valve

48600382

Unavailable

19

Tap 6x46 rebound

48600576

Unavailable

20

O-ring 6x1,2 NBR70

48600299

Unavailable

21

Spring (13,9) 37-32 rebound cp

48600578S

Unavailable

22

Spring retainer 27,08x43x45

48601298

Unavailable

23

Needle 4,5x43,6 cpl.

48600277S

Unavailable

24

Needle 4,5x38,2 cpl.

48601558S

Unavailable

25

Piston rod 12x554

48600568

Unavailable

26

Adjustment tube 6x521,7

48601786

Unavailable

27

Stop 12,4x31,9x200,3 cpl.

48601556S

Unavailable

28

Nut valve M6x0,5 h6,5 WAF17

48600163

Unavailable

29

Spring (8,5) l6,5 valve

48600202

Unavailable

30

Piston 6x27,3x9 compression cp

48601934S

Unavailable

31

Screw cap M29,3x1 OC split cpl

48601553S

Unavailable

32

O-ring 11x2,5 NBR70 PTFE yello

04500003

Unavailable

33

Shim 27,5x33x0,3

48601702

Unavailable

34

HH collar screw M8x25

0025080256

Unavailable

98

Fuchs grease IPR (250g)

T14034

Unavailable

99

Fork Fluid Viscosity 4.0 5L

48601166S1

Unavailable

35

Screw cap M29,3x1

48601980S

Unavailable

5

Preload bush 35x43x3,5

48600457

Unavailable

5

Washer 35x43x1,5 plastic

48600458

Unavailable
