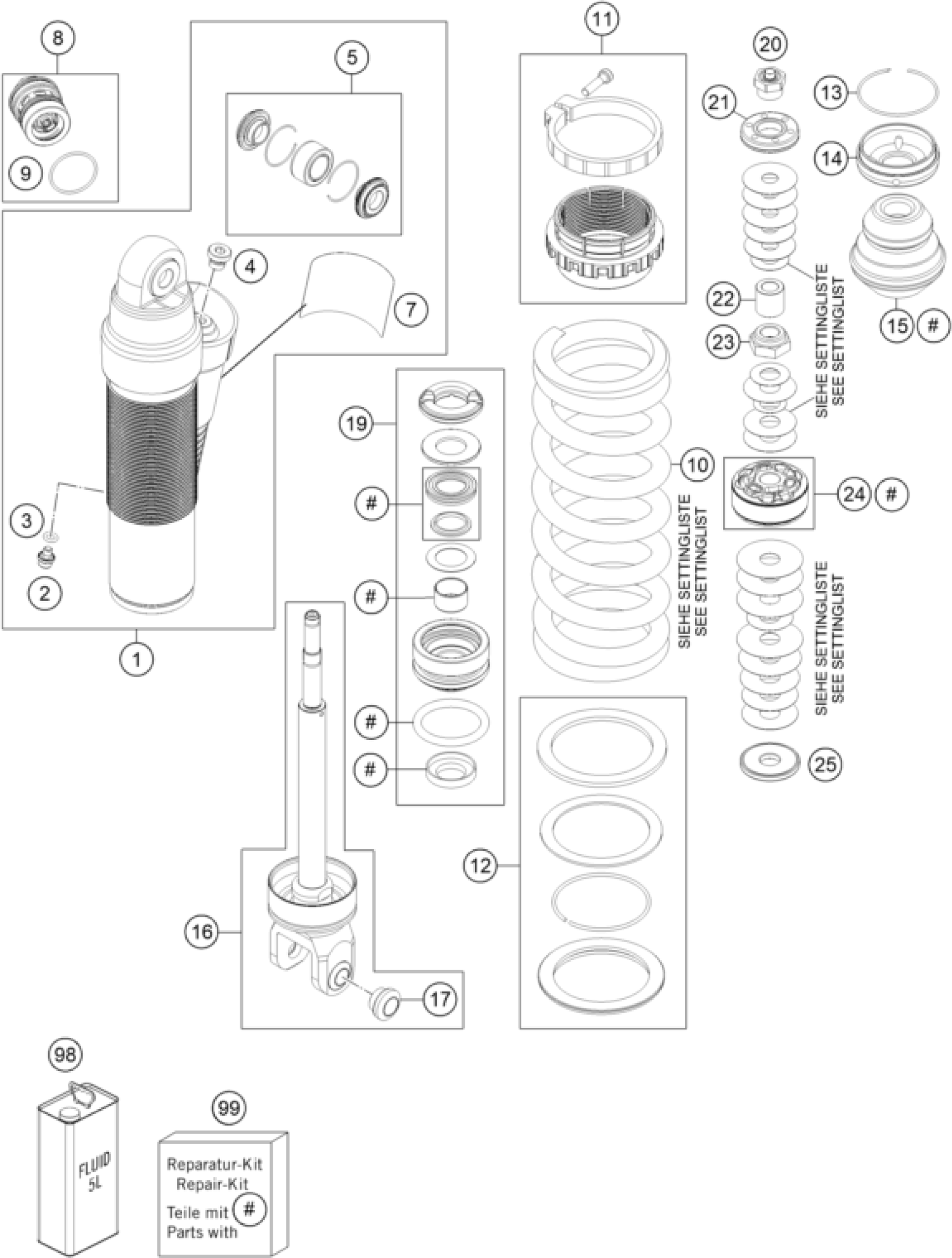

KTM 300 XC-W SIX DAYS 2017 SHOCK ABSORBER DISASSEMBLED Diagram

#

Description
Price

1

MONOSHOCK CASE M53X1 INC PIPE

46181242S1

Unavailable

2

HS lock screw M5x6

36120151

Unavailable

3

O-ring 5,28x1,78 NBR70 black

46810893

Unavailable

4

HS cylinder-head screw R1/8 l8

50180095

Unavailable

5

Ball joint bearing kit 12mm

RP10011

Unavailable

7

STICKER WP WARNING 65X40

52000143

Unavailable

8

Compression cpl.

50181101S5

Unavailable

9

O-ring 27x1,5 Viton70 green IS

50180217

Unavailable

10

Mainspring (59/61) 57-60-63-22

91010348

Unavailable

10

Mainspring (59/61) 60-63-66-22

91010349

Unavailable

10

Mainspring (59/61) 63-66-69-22

91010350

Unavailable

10

Mainspring (59/61) 66-69-72-22

91010351

Unavailable

10

Mainspring (59/61) 54-57-60-22

91010353

Unavailable

11

Spring retainer M55x2x75x40 pl

46181228S

Unavailable

12

SPRING CUP SET PDS 17

RP10005

Unavailable

13

Round-wire snap ring 49x1,5

46810010

Unavailable

14

Cover 46,12x6,2 h15,7

46180338

Unavailable

15

Rubber pad 17x48x55

46181237

Unavailable

16

MONOSHOCK LOWER PART CPL.

46181236S1

Unavailable

17

Threaded bush M12 d20

50180105

Unavailable

19

Sealholder 46x28 cpl.

46180669S

Unavailable

20

Piston rod nut M10x1 PDS cpl.

46181183S

Unavailable

21

Piston 15x35,4x6 4

46181184

Unavailable

22

Bush 10x17x17

46181025

Unavailable

23

Piston rod nut M12x1

46810474

Unavailable

24

Piston 12x46x20 cpl.

46181153ES

Unavailable

25

Rebound disc 12x36x4 h0

46181194

Unavailable

98

SHOCK ABSORBER FLUID 5 LT

50180751S1

Unavailable

99

REVISION KIT MONOSHOCK MINI 17

RP10004

Unavailable
