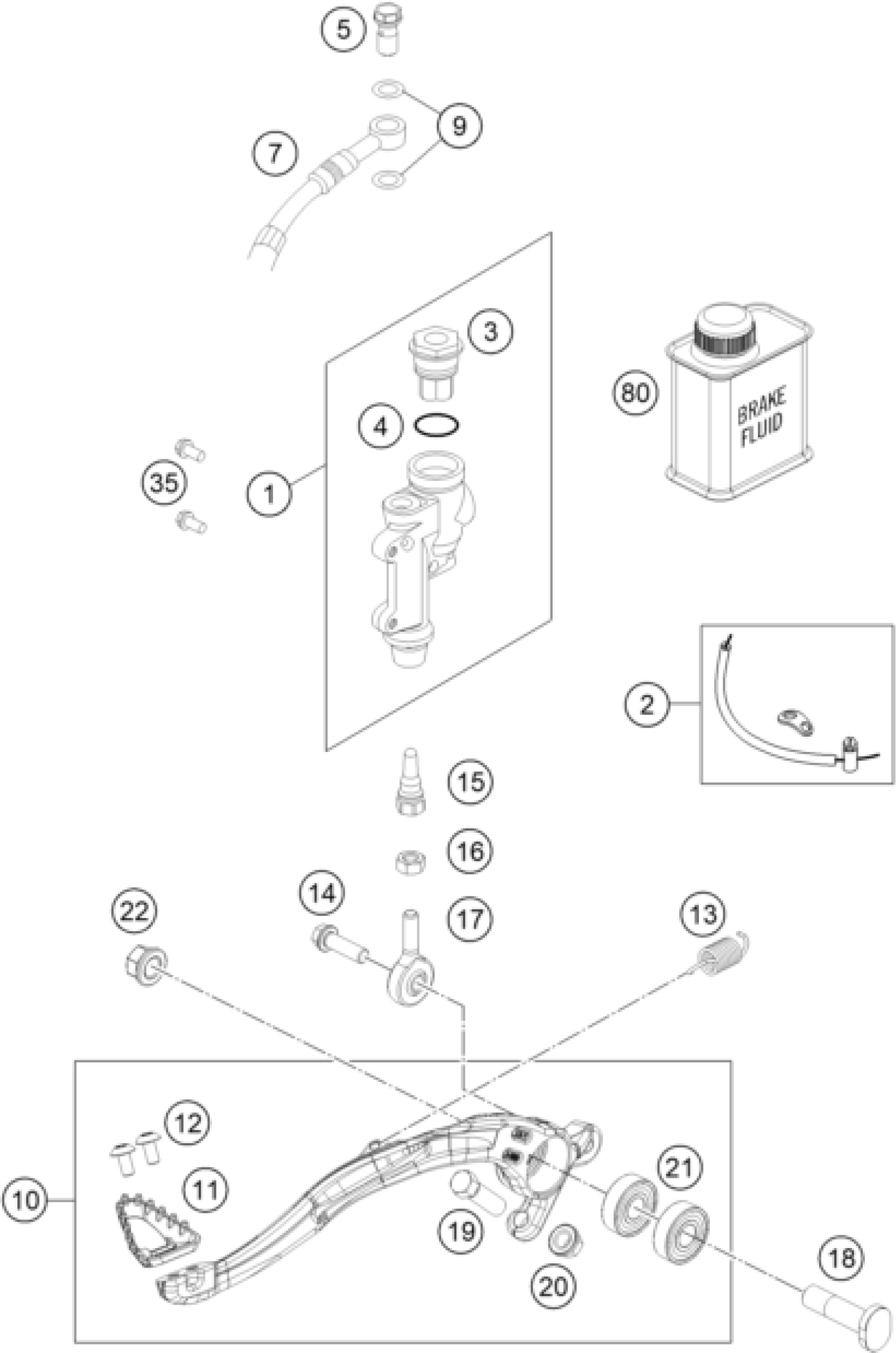

KTM 300 XC-W HARDENDURO 2026 REAR BRAKE CONTROL Diagram

#

Description
Price

1

REAR BRAKE CYLINDER CPL.SX 09

77013060044

Unavailable

2

Rear brake safety wire

54812063144

Unavailable

3

REAR BRAKE CYL. COVER CPL. 04

54813062100

Unavailable

4

FOOT-BRAKE CYL. GASKET SX 03

54813063000

Unavailable

5

banjo bolt M10x1x19 black

54813020100

Unavailable

7

Rear Brakehose

77213070300

Unavailable

9

sealing ring DIN 7603 10x14x1

0603100141

Unavailable

10

foot brake lever cpl

A46013050044

Unavailable

11

Step brake lever 16

79413051000

Unavailable

12

SCREW TORX M5X10 05

58605083010

Unavailable

13

Retracting spring

A46003062000

Unavailable

14

HH collar screw M6x20 TX30

0025060206S

Unavailable

15

PUSH ROD L=28MM 03

54813056000

Unavailable

16

Hex. nut DIN 934 M6

0934060003

Unavailable

17

Joint head CMP6

54813055100

Unavailable

18

Screw foot brake lever

47213054000

Unavailable

19

SPECIAL SCREW M8X26 WS=10

59001037000

Unavailable

20

flanged nut M8 WS10

46030045000

Unavailable

21

deep groove ball bearing SKF 6

0625060002

Unavailable

22

COLLAR NUT M10 WS=13

54630044000

Unavailable

35

HH collar screw M6x12 TX30

0025060126

Unavailable

80

Brake fluid DOT5.1 0,25L

00062030000

Unavailable
