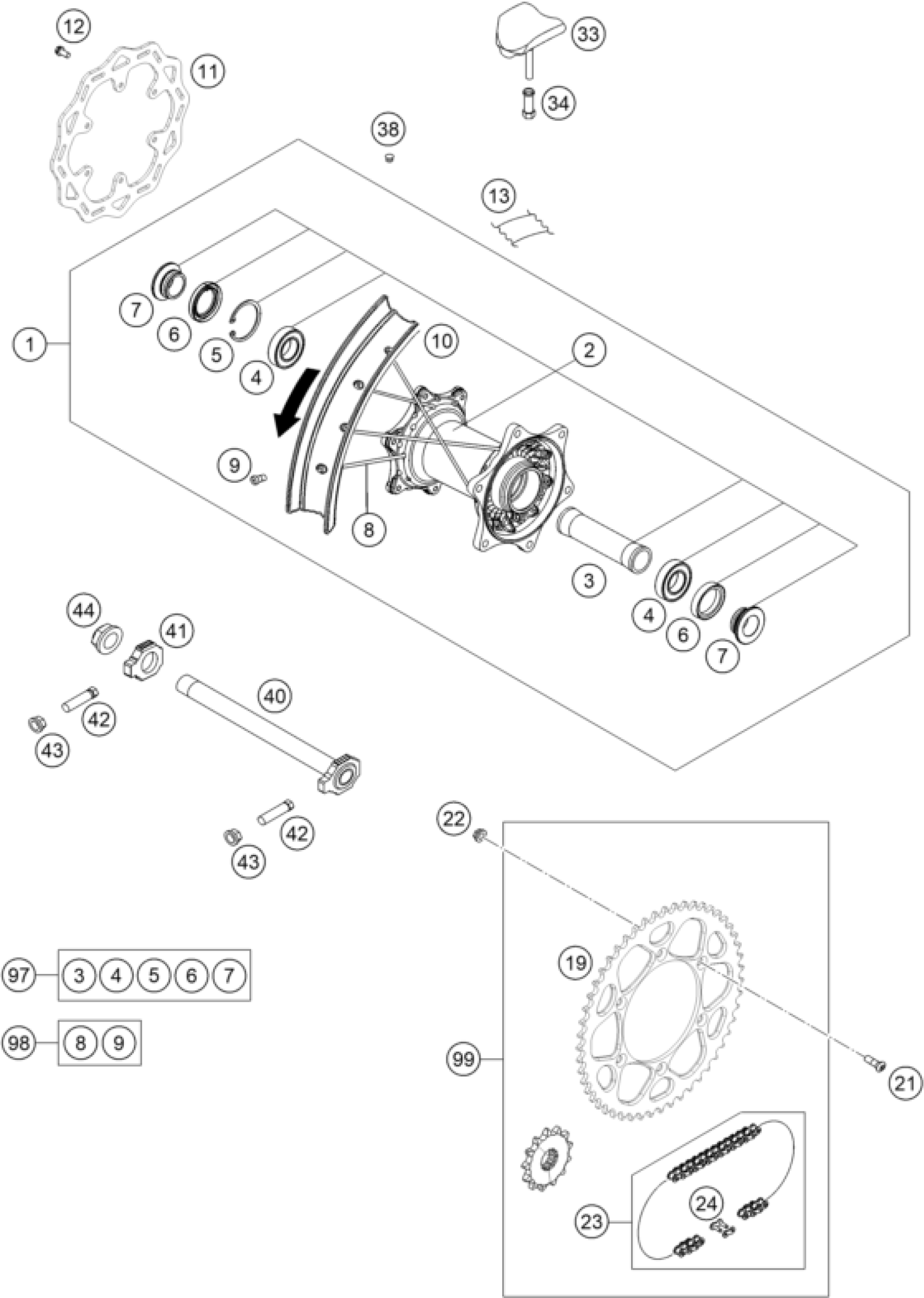

KTM 300 XC-W FACTORY EDITION 2025 REAR WHEEL Diagram

#

Description
Price

1

Factory rear wheel 2.15x18"

A4901090104404

Unavailable

2

Rear wheel hub

A4601091004404

Unavailable

3

Bearing spacer tube 121.5mm

A46010011000

Unavailable

4

Grooved ball bear.6005 DDU2CG2

0625060058

Unavailable

5

CIRCLIP DIN0472-47X1,75

0472047175

Unavailable

6

Radial shaft seal 35X47X7 TC

0760354771

Unavailable

7

Spacing tube rear wheel

A46010016000

Unavailable

8

SPOKE M4,5X193-18'' BLACK 1

7901007119330

Unavailable

9

Spoke niple

7710907200004S

Unavailable

10

Rear rim 2.15x18" DID

8121007010030A

Unavailable

11

BRAKE DISC REAR D=220MM

25010960000

Unavailable

12

SPECIAL SCREW M6X13 WS=8 10.9

59009062013

Unavailable

13

Tube protector 18" and 19"

50310073200

Unavailable

19

Supersprox-Stealth rear sprock

5841005104504

Unavailable

19

Rear sprocket 47 teeth

5841005104704

Unavailable

19

REAR SPROCKET ORANGE 46 T.

5841005104604

Unavailable

19

Rear sprocket 47 teeth

5841005104704

Unavailable

19

REAR SPROCKET ORANGE 48-T

5841005104804

Unavailable

21

COUNTER-SUNK SCREW ISA45 M8X26

0019080266S

Unavailable

22

Hex. nut DIN EN 1661 M8 WS13

06923080003

Unavailable

23

CHAIN DID 118 LINKS

78010267118

Unavailable

24

CONNECTING LINK F. 78010267118

78010266000

Unavailable

24

RIVETING LINK FOR 78010267118

78010266100

Unavailable

33

Tyre locker 2,15"

78110090200

Unavailable

34

NUT FOR WHEEL HOLDER

77110090050

Unavailable

38

PLUG FOR RIM

55003135000

Unavailable

40

Wheel spindle rear wheel cmpl.

A46010085044

Unavailable

41

Chain tension adjuster right

A46010084000

Unavailable

42

screw M10x1.25x50 WS10

50304040100

Unavailable

43

HH COLLAR NUT M10X1,25 WS=13

58414030000

Unavailable

44

Collar nut M22x1.5 WS=30

A46010086000

Unavailable

97

wheel bearing repair kit

A46010015010

Unavailable

19

REAR SPROCKET ORANGE 49-T

5841005104904

Unavailable

19

REAR SPROCKET ORANGE 50-T

5841005105004

Unavailable

19

REAR SPROCKET ORANGE 51-T

5841005105104

Unavailable

98

Spoke kit rear 18"

00050000994

Unavailable

99

Drivetrain kit 13Z/45Z

SPA113U45KM118A

Unavailable
