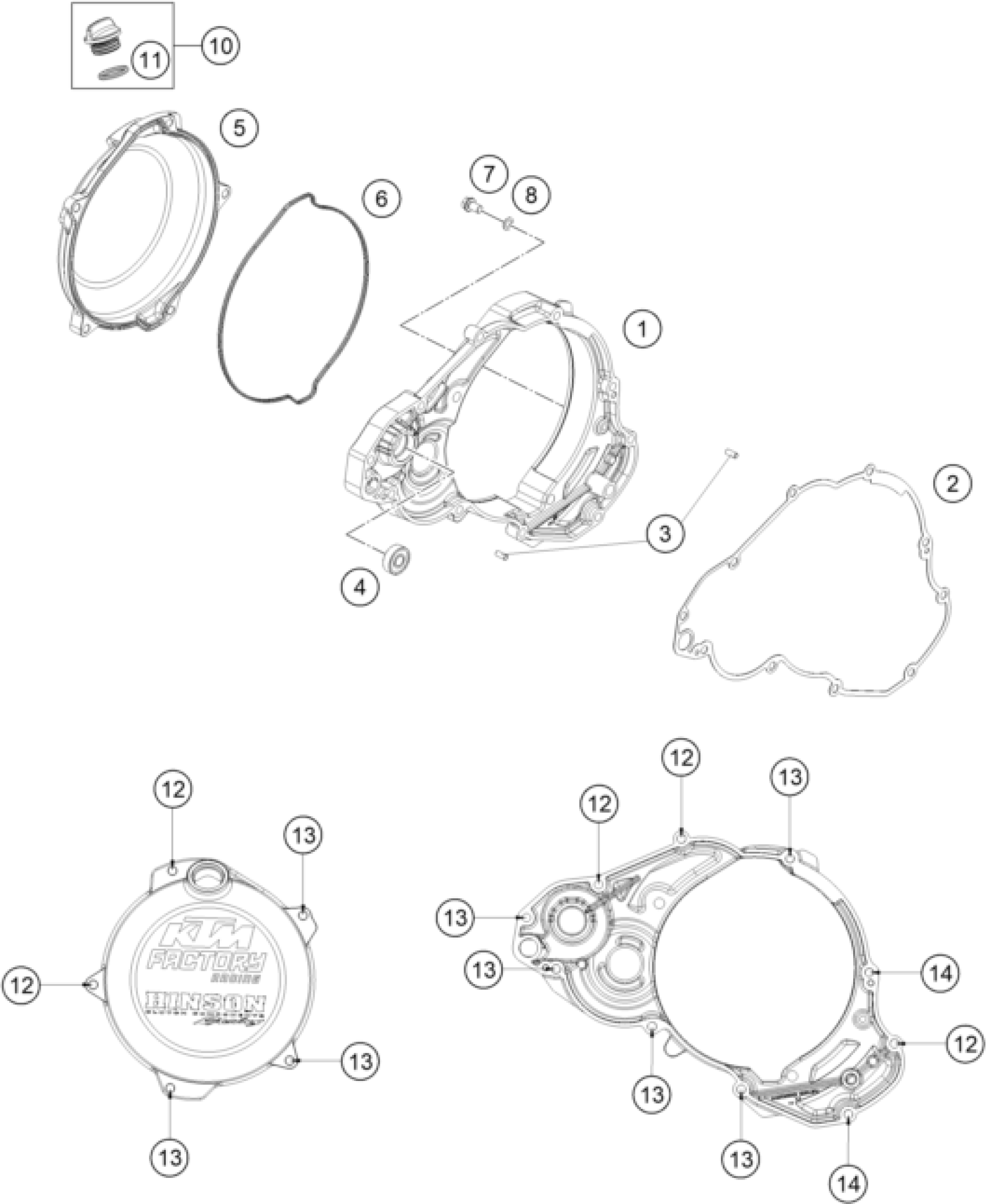

KTM 300 XC-W FACTORY EDITION 2025 CLUTCH COVER Diagram

#

Description

Price

1

Clutch cover, inner, cmpl.

A44030001044

Unavailable

2

Clutch cover gasket, inner

A44030025000

Unavailable

3

Needle roll.DIN5402 NRB 4X9.8

0402040980

Unavailable

4

Grooved ball bearing 608 2RS C

0625006087

Unavailable

5

Outer clutch hub loose

A48030926000

Unavailable

6

Clutch cover gasket external

A48030027000

Unavailable

7

HH collar screw M6x10 TX30

0025060106

Unavailable

8

CU-SEAL RING DIN7603-6X10X1

0603061001

Unavailable

10

Oil filler cap cmpl. M24x3

79430020033

Unavailable

11

O-RING 19,00X3,00 NBR

0770191015

Unavailable

12

HH collar screw M6x60 TX30

0025060606

Unavailable

13

HH collar screw M6x25 TX30

0025060256

Unavailable

14

HH collar screw M6x40 TX30

0025060406

Unavailable
