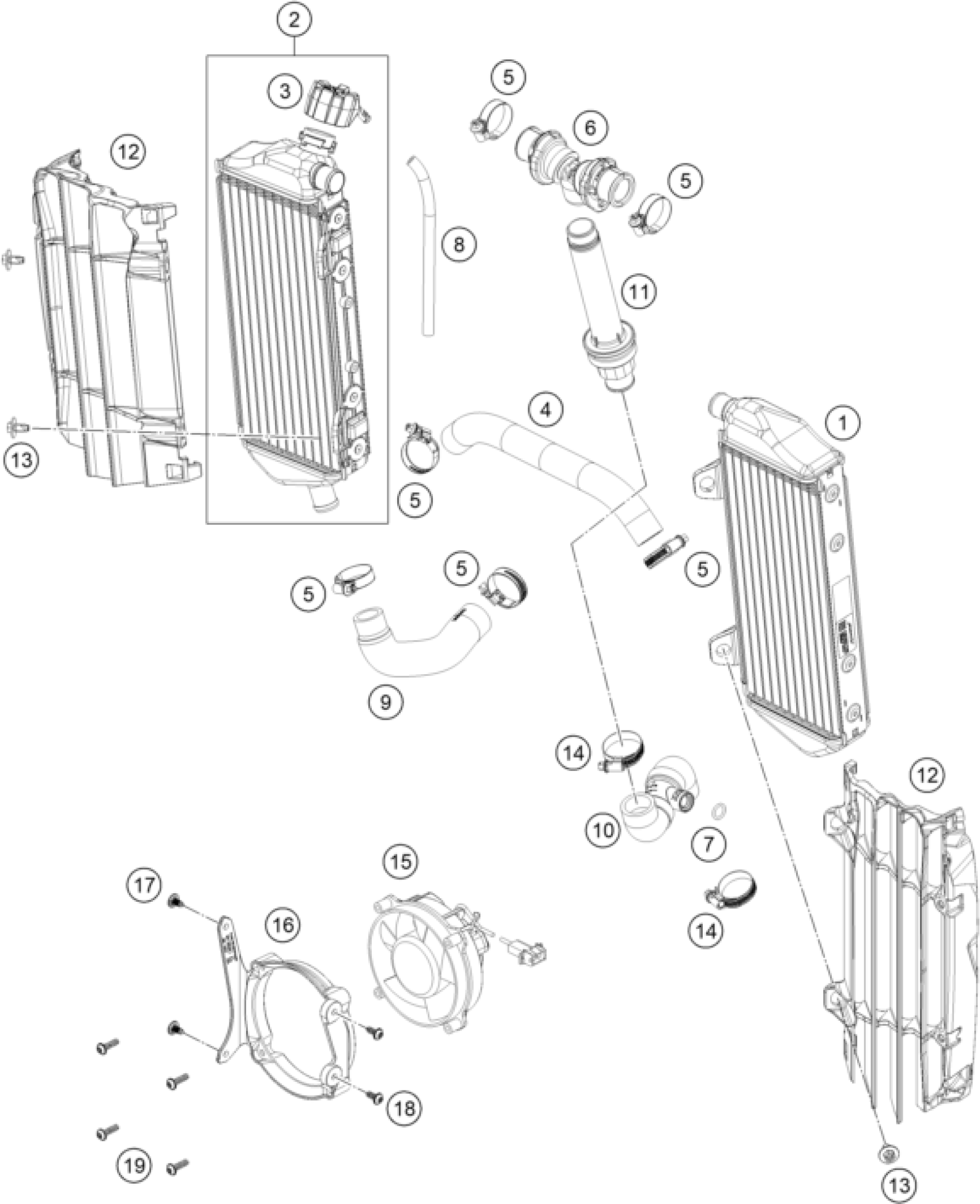

KTM 300 XC-W 2024 COOLING SYSTEM Diagram

#

Description
Price

1

Radiator left

A46035007000

Unavailable

2

Radiator right

A46035008000

Unavailable

3

Radiator cap

A46035009000

Unavailable

4

Pre-formed hose radiator left/

A46035025000

Unavailable

5

Hose clip 18-29

0310000902900

Unavailable

6

Y-piece cmpl.

A46035071044

Unavailable

7

o-ring 10.00x2.00 silicone

0770100020

Unavailable

8

PVC-HOSE 6X9

50335030001

Unavailable

9

Pre-formed hose engine/radiato

A44035024000

Unavailable

10

Hose system, temperature senso

A44035020044

Unavailable

11

Screw-in nozzle with thermo.re

A49035073033

Unavailable

12

Radiator protection set, black

A46035036044C1

Unavailable

13

HH ISR collar screw M6x12-10.9

0900000601203

Unavailable

14

Hose clip 20-32

0310000903200

Unavailable

15

FAN CPL. 12V LC4 2000

58435041000

Unavailable

16

Radiator fan support

79735943000

Unavailable

19

SCREW FOR PLASTIC K50X18 T20

0081050181

Unavailable

17

EJOT PT screw K50x12

0081050121

Unavailable

18

EJOT SHEETTRACS SCREW 50X10

0080150100

Unavailable
