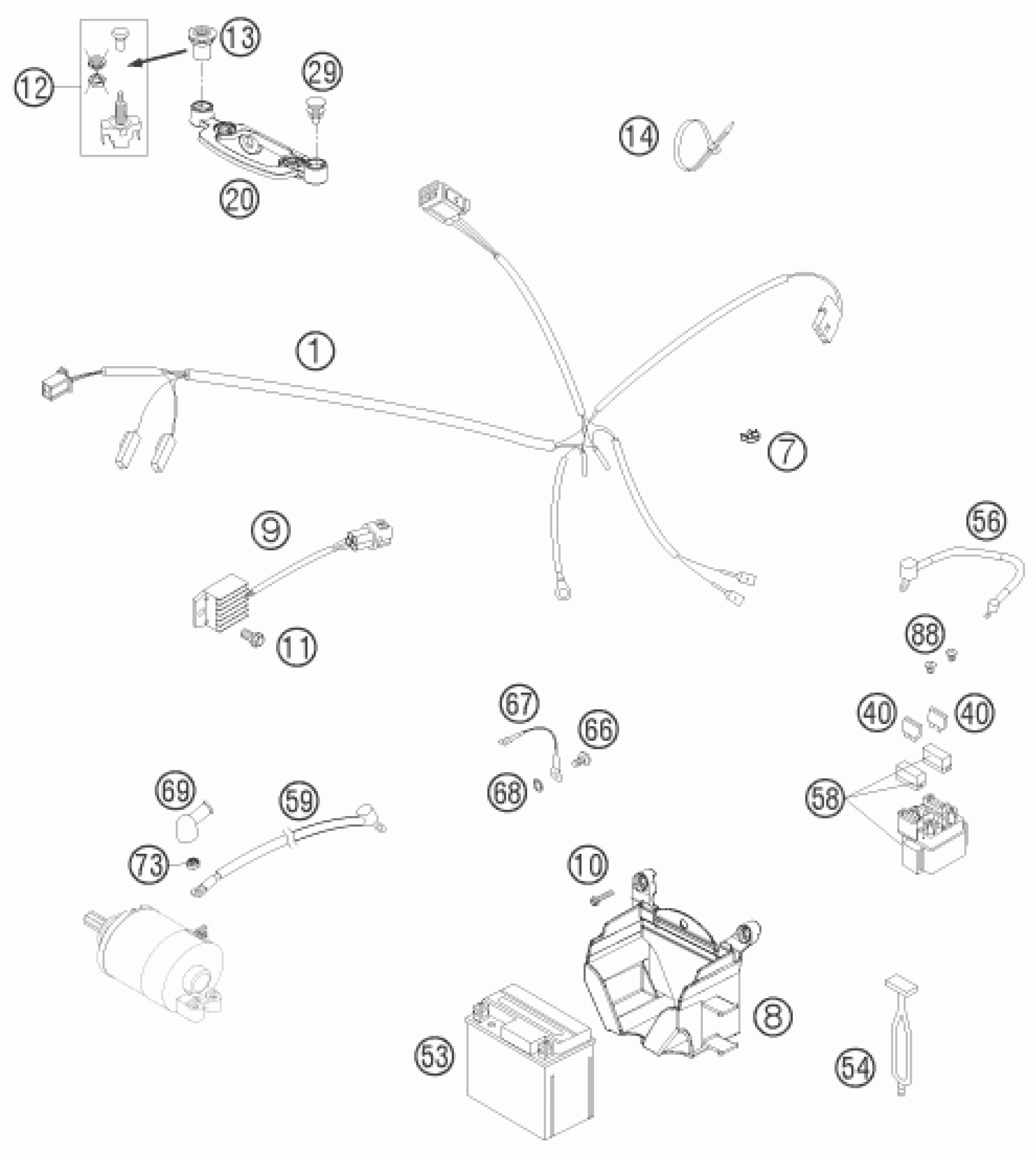

KTM 300 XC-W 2008 WIRING HARNESS Diagram

#

Description
Price

13

SPEC. NUT F. PULL SWITCH WS=17

54814060050

Unavailable

14

Cable tie 200/4.6mm black

44011076200

Unavailable

14

CABLE TIE 300/4,8MM BLACK

44011076305

Unavailable

8

BATTERY CASING

77311055000

Unavailable

1

WIRING HARNESS RACING USA 05

59411075100

Unavailable

10

EJOT PT SCREW K60X20 WS=6

0017060203

Unavailable

40

Plug-in fuse, big 10A

58011109110

Unavailable

53

BATTERY 12V 3AH YTX4L-BS

77311053000

Unavailable

54

RUBBER L=145MM

50303018000

Unavailable

56

WIRING HARNESS BATTERY DUKE'99

58711086000

Unavailable

58

Starter reley 12V 99

58211058000

Unavailable

59

STARTERCABLE 1100MM 07

55111059000

Unavailable

66

HH collar screw M6x10 TX30

0025060106

Unavailable

67

GROUND CABLE D=6MM L=140MM '97

58411097100

Unavailable

68

CONTACT WASHER M6 VSV-K6

58411098100

Unavailable

69

PROTECTION CAP F. STARTER ENG.

58440099000

Unavailable

73

Self lock. nut DIN985-M6-A2

0985060003

Unavailable

88

Oval head screw ISO 7380 M 6X8

0902060083

Unavailable

20

SPEEDOMETER BRACKET 05

54814060000

Unavailable

29

Plug SFL16

50210086000

Unavailable

7

WIRING HOLDER 16MM

57013072100

Unavailable

9

VOLTAGE REGULATOR 04

80011034000

Unavailable

11

HH collar screw M6x10 TX30

0025060106

Unavailable

12

PULL SWITCH LOOSE

55011599000

Unavailable
