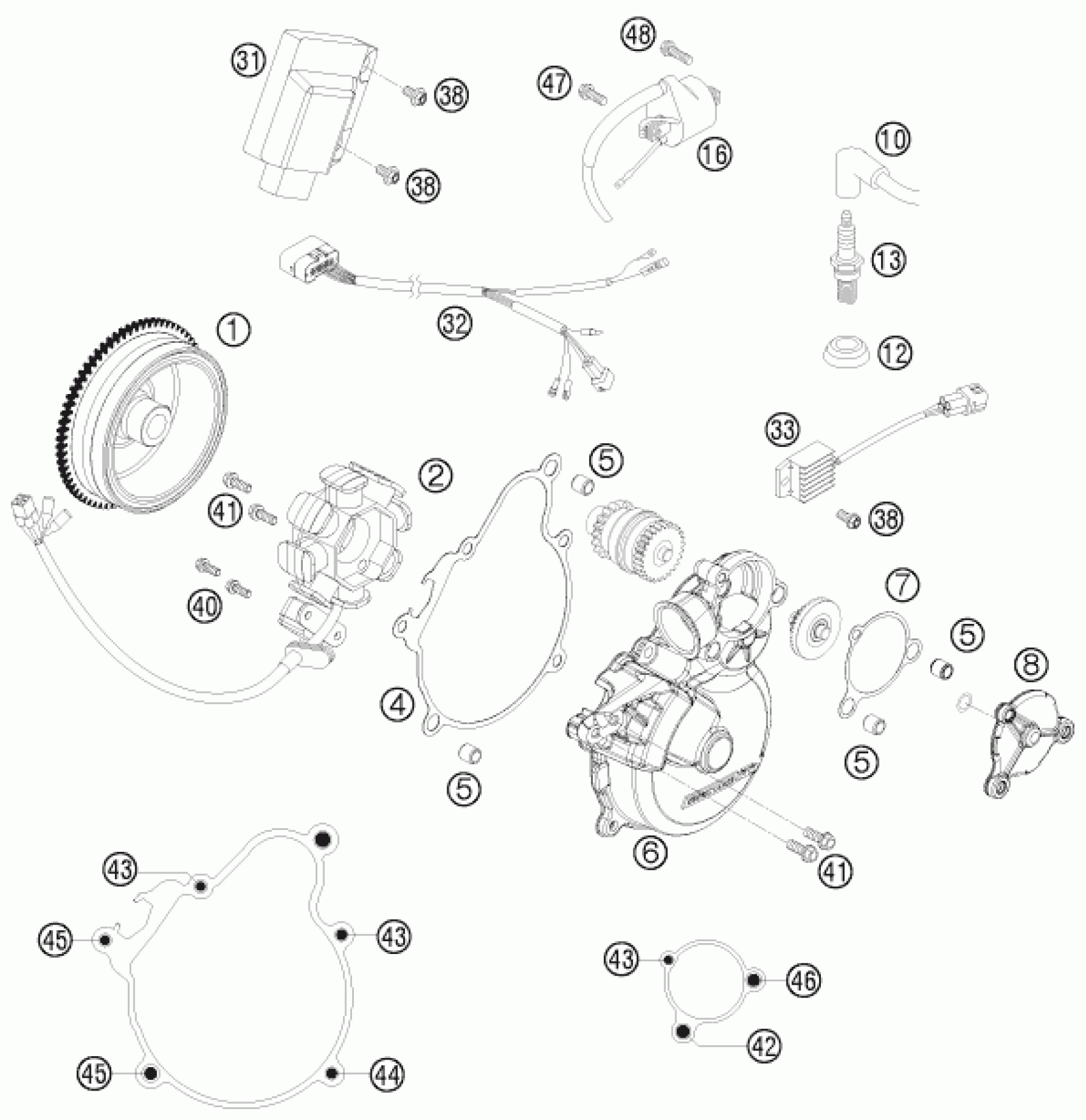

KTM 300 XC-W 2008 IGNITION SYSTEM Diagram

#

Description
Price

48

HH collar screw M6x20 TX30

0025060206

Unavailable

1

FLYWHEEL KOKUSAN

55139005000

Unavailable

2

STATOR KOKUSAN

55139004000

Unavailable

4

IGNITI.COVER GASKET 07

55130040000

Unavailable

5

DOWEL 9,8 X 7 X 10

49030090000

Unavailable

6

IGNITION COVER 250 E-START 08

5513000210033

Unavailable

7

IGN. OUT SIDE COV. GASKET 07

55130041100

Unavailable

8

OUTER IGNITION COVER CPL.

5513004514433

Unavailable

10

SPARK PLUG CAP NGK REINFORC.04

47039090000

Unavailable

12

SEALING CUP FOR SPARK PLUG

50231012000

Unavailable

13

SPARK PLUG

54739093000

Unavailable

16

IGNITIONCOIL ''IG5128''

59039006000

Unavailable

31

CDI UNIT 300 EXC/XC 07

54839331200

Unavailable

32

WIRING HARNESS F.CDI 2-ST.SX07

54839032300

Unavailable

33

VOLTAGE REGULATOR 04

80011034000

Unavailable

38

HH collar screw M6x12 TX30

0025060126

Unavailable

40

HH COLLAR SCREW M 5X12 WS=6

0014050123

Unavailable

41

HH COLLAR SCREW M 6X20 WS=8

0015060203

Unavailable

42

HH COLLAR SCREW M 6X25 WS=8

0015060253

Unavailable

43

HH COLLAR SCREW M 6X16 WS=8

0015060163

Unavailable

44

HH COLLAR SCREW M 6X30 SW=8

0015060303

Unavailable

45

HH COLLAR SCREW M 6X35 WS=8

0015060353

Unavailable

46

HH COLLAR SCREW M 6X70 WS=8

0015060703

Unavailable

47

HH collar screw M6x16 TX30

0025060166

Unavailable
