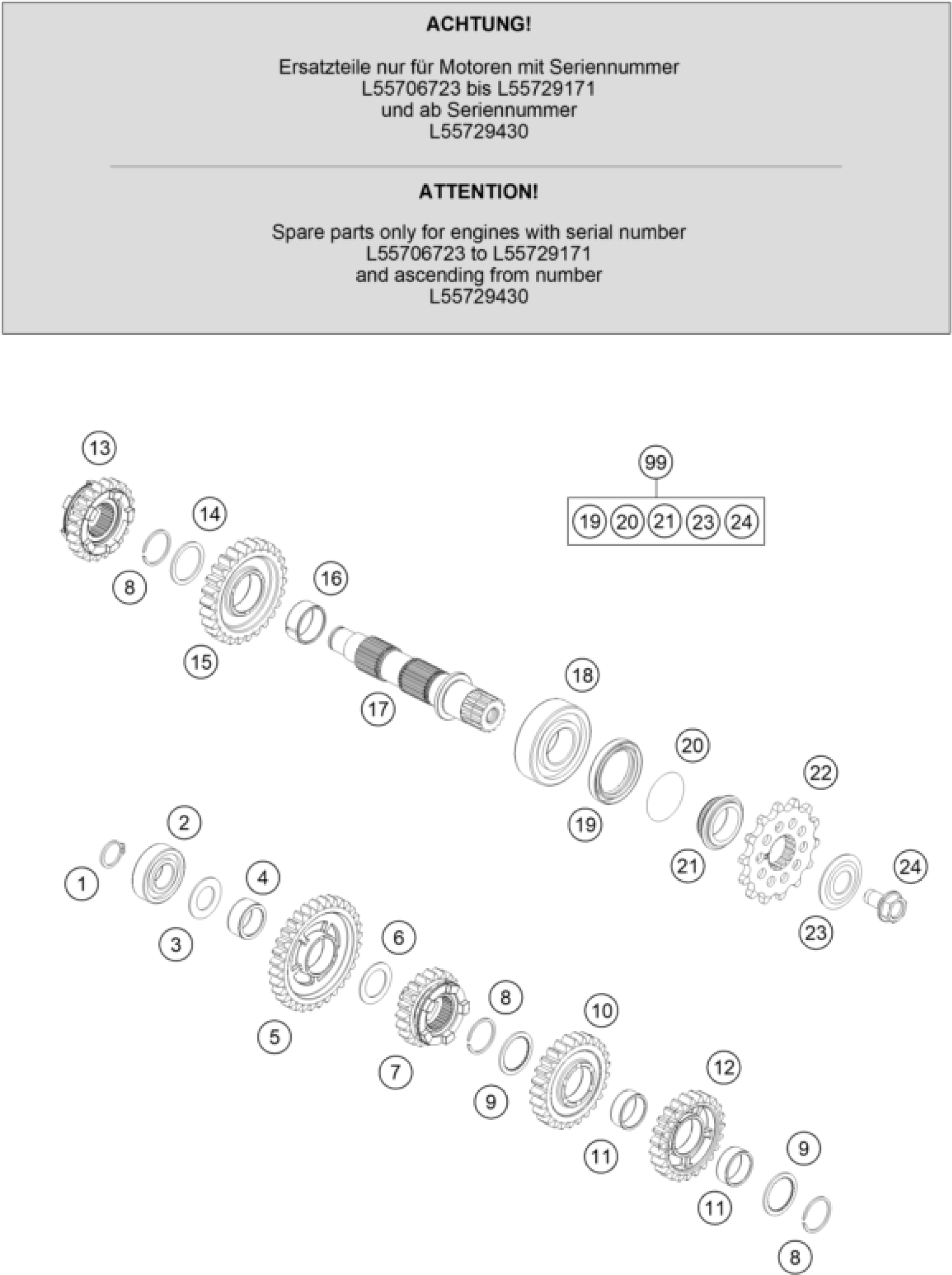

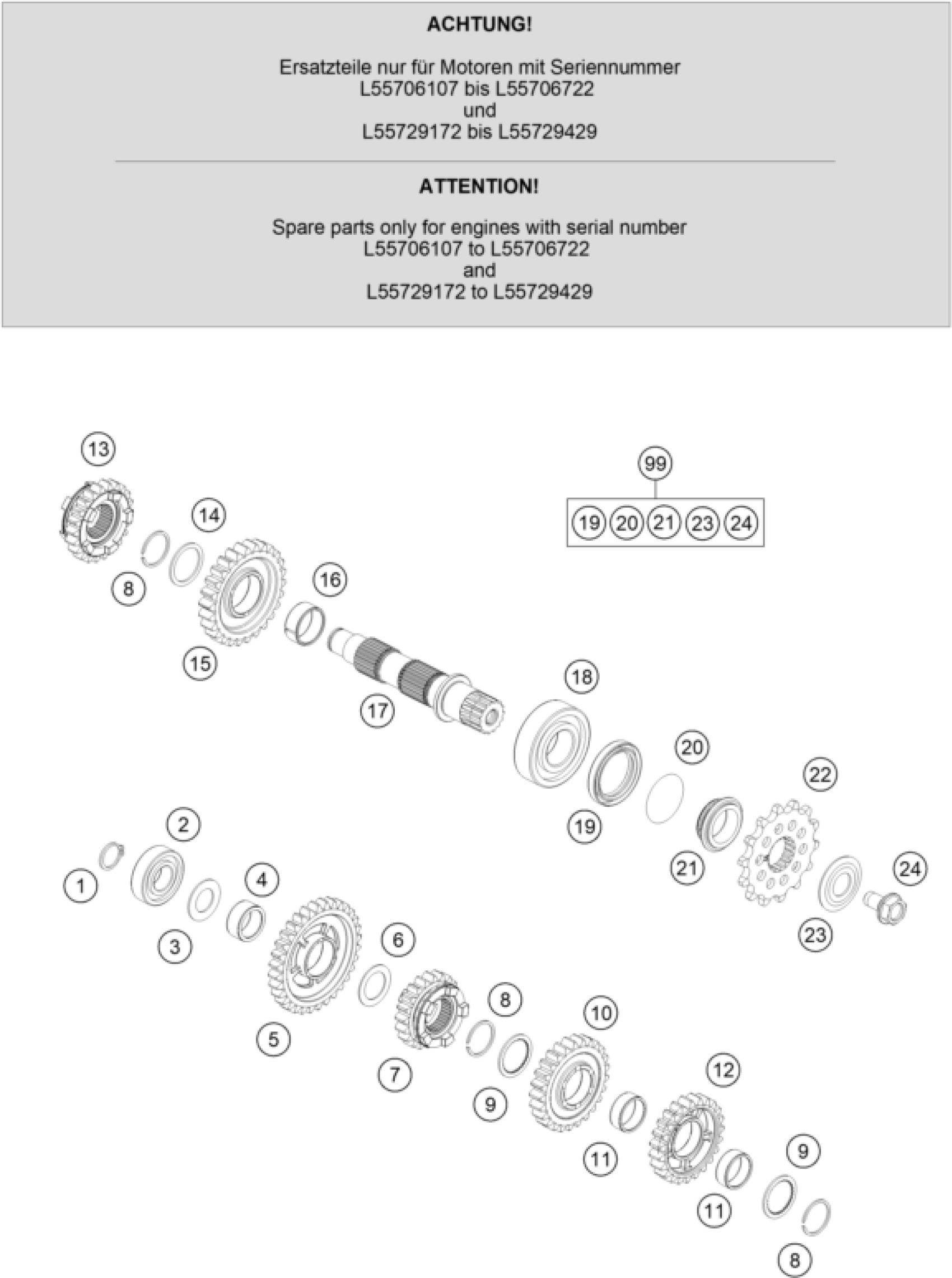

KTM 300 XC TPI 2020 TRANSMISSION II - COUNTERSHAFT Diagram

#

Description
Price

1

CIRCLIP DIN 0471-17X1, 5

0471170015

Unavailable

2

BALL BEARING 6203 JR2 C3

0625062035

Unavailable

3

STOP DISK 17,2X30X1,3

77233020000

Unavailable

4

NEEDLE BEARING K 20X26X12

0405202612

Unavailable

5

Idler gear, 1st gear, teeth=31

79333211000

Unavailable

6

STOP DISC 20,2X30X1

54833080000

Unavailable

7

Sliding gear, 6th gear, teeth=

79333116000

Unavailable

8

CIRCLIP WS24

0417024000

Unavailable

9

STOP DISC 25X0,8X30X30X7H

54833043000

Unavailable

10

Idler gear, 3rd gear, teeth=25

79333113000

Unavailable

11

NEEDLE BEAR.K 22X26X10 DIVIDED

0405222611

Unavailable

12

Idler gear, 4th gear, teeth=23

79333114000

Unavailable

13

Sliding gear, 5th gear, teeth=

79333115000

Unavailable

14

STOP DISC 25X31X1,5

54833044000

Unavailable

15

Idler gear, 2nd gear, teeth=25

79333212000

Unavailable

16

NEDDLE BEAR. K24X28X11,9 DIV.

0405242812

Unavailable

17

Output shaft

79333110000

Unavailable

18

cylindrical roller bearing NJ2

49030023000

Unavailable

19

SHAFT SEAL RING 32X45X7 BSLNBR

0760324571

Unavailable

20

O-RING 25,12X1,78 NBR70

0770020220

Unavailable

21

SPACER SLEEVE COUNTER

78133014000

Unavailable

22

Sprocket 13-t

79233029013

Unavailable

23

Spring washer 17.2X40X1.5

59033034000

Unavailable

24

HH COLLAR SCREW M10X18 10.9

59033029000

Unavailable

99

COUNTER SHAFT REP.KIT 2 STROKE

00050000983

Unavailable
