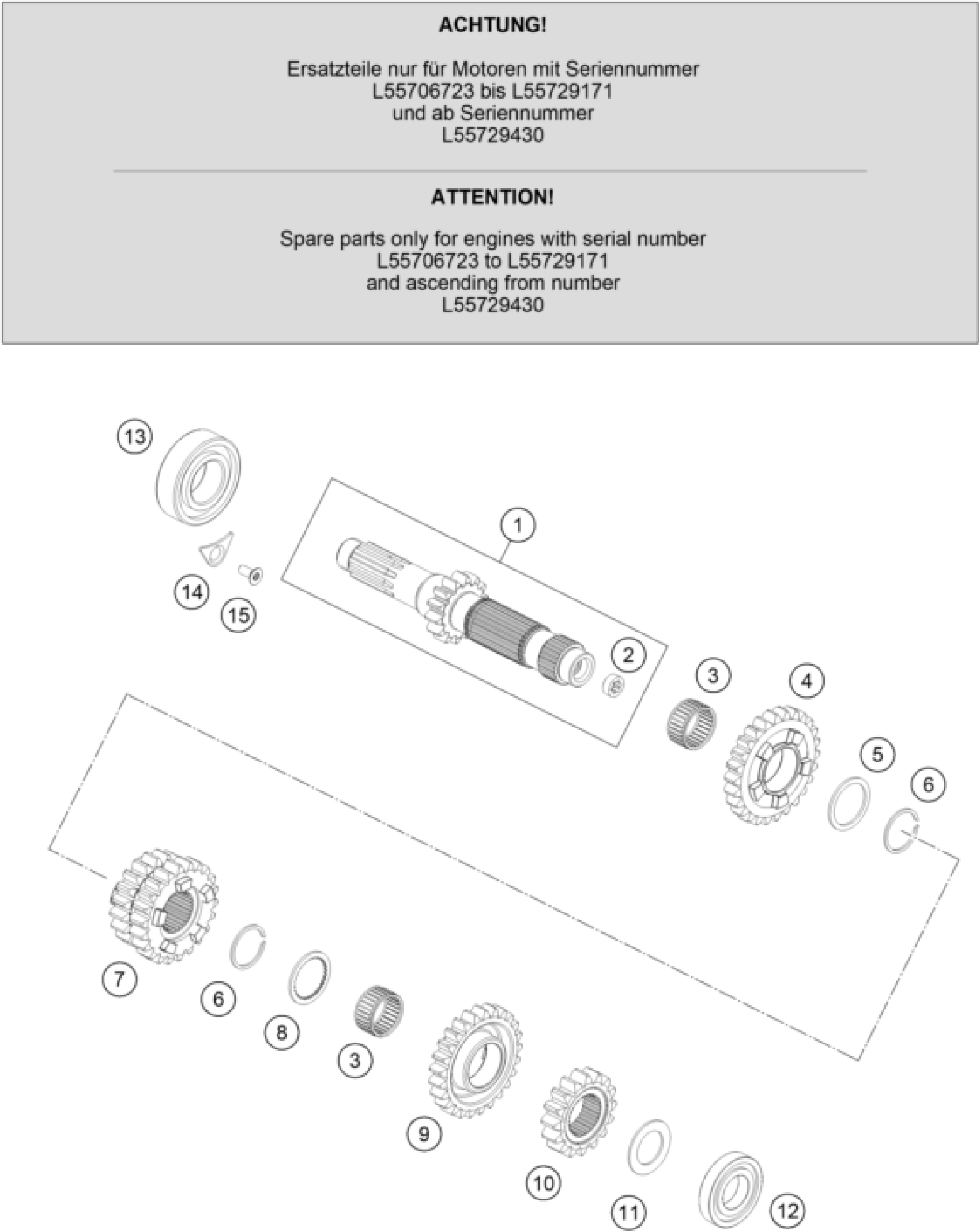

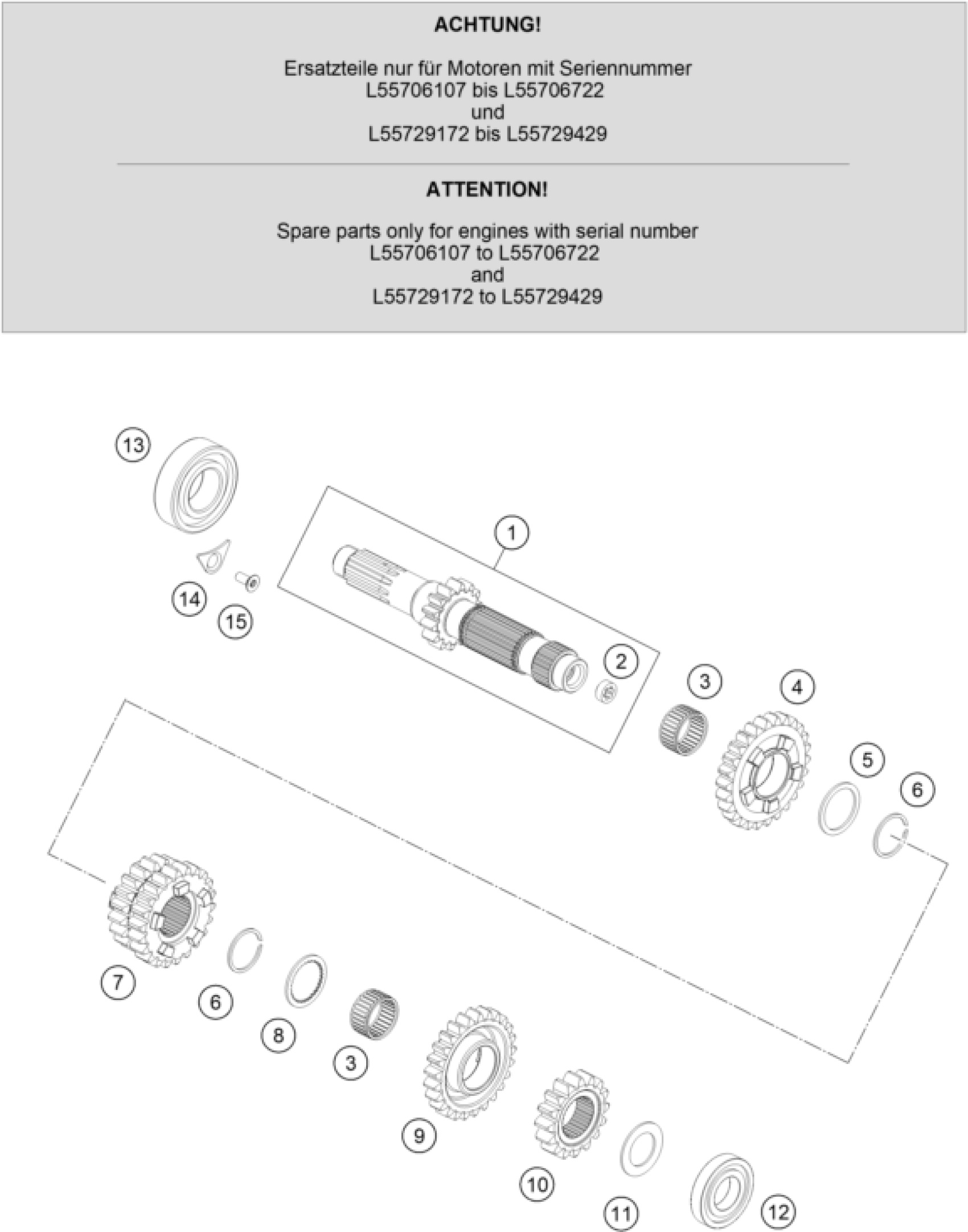

KTM 300 XC TPI 2020 TRANSMISSION I - MAIN SHAFT Diagram

#

Description
Price

1

INPUT SHAFT CMPL. 15 teeth

79333201000

Unavailable

2

BUSHING

78033001110

Unavailable

3

NEEDLE BEAR. K 22X26X13 TN

0405222613

Unavailable

4

Idler gear, 6th

79333106000

Unavailable

5

STOP DISC 25X31X1,5

54833044000

Unavailable

6

CIRCLIP WS24

0417024000

Unavailable

7

Sliding gear 3rd/4th., t=20/22

79233103100

Unavailable

8

STOP DISC 25X0,8X30X30X7H

54833043000

Unavailable

9

Idler gear, 5th gear, teeth=25

79333105000

Unavailable

10

Fixed gear, 2nd gear, teeth=16

79333102000

Unavailable

11

DISK 20,2X32X1,3

77233015000

Unavailable

12

GROOVED BALL BEAR. TM 16004 C3

0625160040

Unavailable

13

BALL BEARING 6205 C3 NTN

0625062054

Unavailable

14

RETAINING PLATE F. CS BEARING

75030085000

Unavailable

15

INT. TORX FLAT HEAD M5X12 T25

0019050121S

Unavailable
