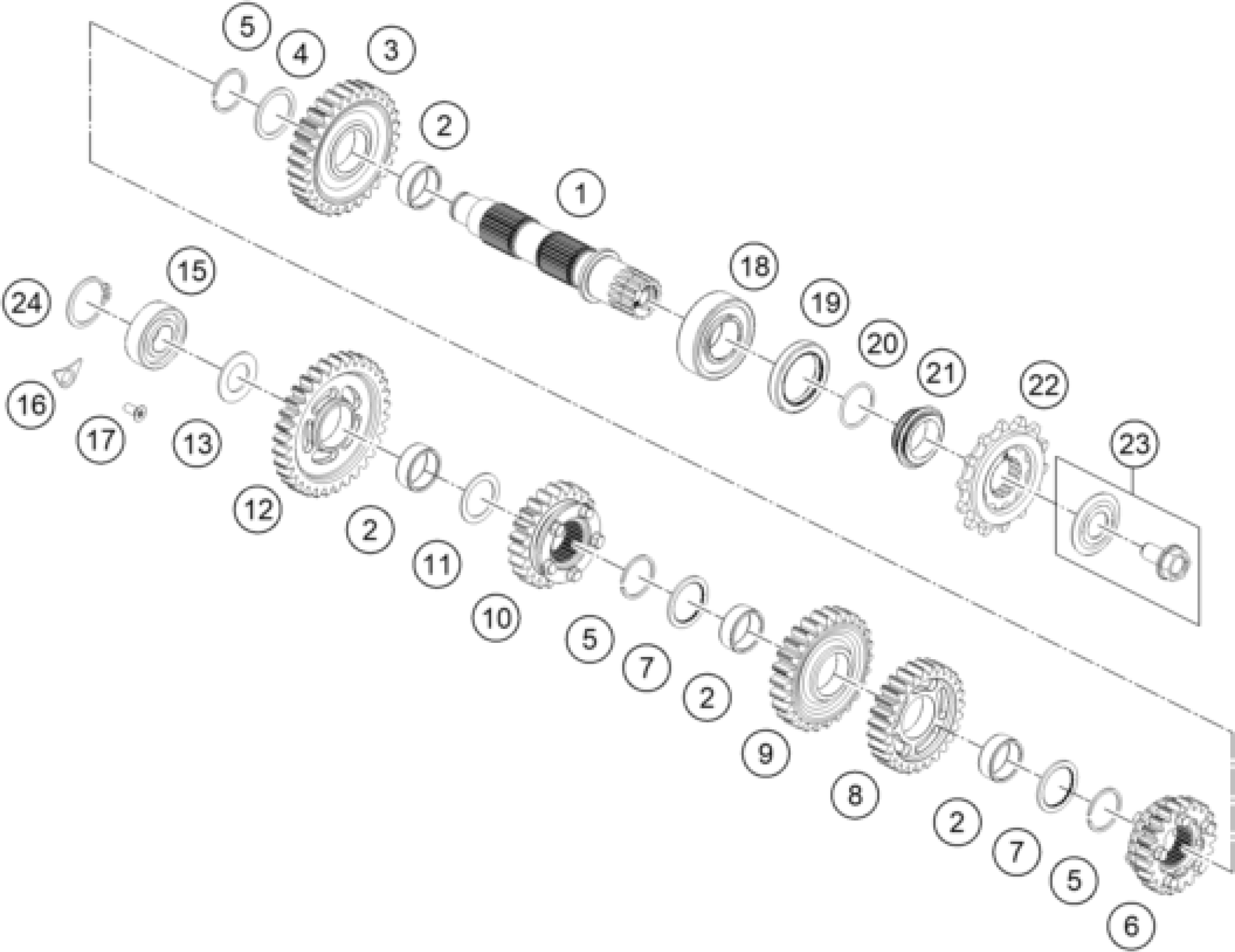

KTM 300 XC 2025 TRANSMISSION II - COUNTERSHAFT Diagram

#

Description
Price

1

Countershaft

A46033510000

Unavailable

2

NEEDLE BEAR.K 22X26X10 DIVIDED

0405222611

Unavailable

3

Idler gear 2nd gear, teeth=30

A46033512000

Unavailable

4

STOP DISC 25X31X1,5

54833044000

Unavailable

5

CIRCLIP WS24

0417024000

Unavailable

6

Sliding gear 6th gear, teeth=2

A46033516000

Unavailable

7

STOP DISC 25X0,8X30X30X7H

54833043000

Unavailable

8

Idler gear fourth-gear, teeth=

A46033514000

Unavailable

9

Idler gear third-gear, teeth=2

A46033513000

Unavailable

10

Sliding gear fifth-gear, teeth

A46033515000

Unavailable

11

STOP DISK 22,2X28X1 C

50333042000

Unavailable

12

idler gear 1 st.

A46033511000

Unavailable

13

STOP DISK 17,2X30X1,3

77233020000

Unavailable

15

Ballbearing NTN 6203JR2CM21

0625062038

Unavailable

16

Retaining bracket crankshaft b

75030085100

Unavailable

17

INT. TORX FLAT HEAD M5X12 T25

0019050121S

Unavailable

18

cylindrical roller bearing NJ2

49030023000

Unavailable

19

SHAFT SEAL RING 32X45X7 BSLNBR

0760324571

Unavailable

20

O-RING 25,12X1,78 NBR70

0770020220

Unavailable

21

SPACER SLEEVE COUNTER

78133014000

Unavailable

22

Front sprocket 14 teeth

A46033029014

Unavailable

23

SCREW 10.9+SPRING WASHER

59033034044

Unavailable

24

CIRCLIP DIN 0471-17X1, 5

0471170015

Unavailable

22

Front sprocket 13 teeth

A46033029013

Unavailable
