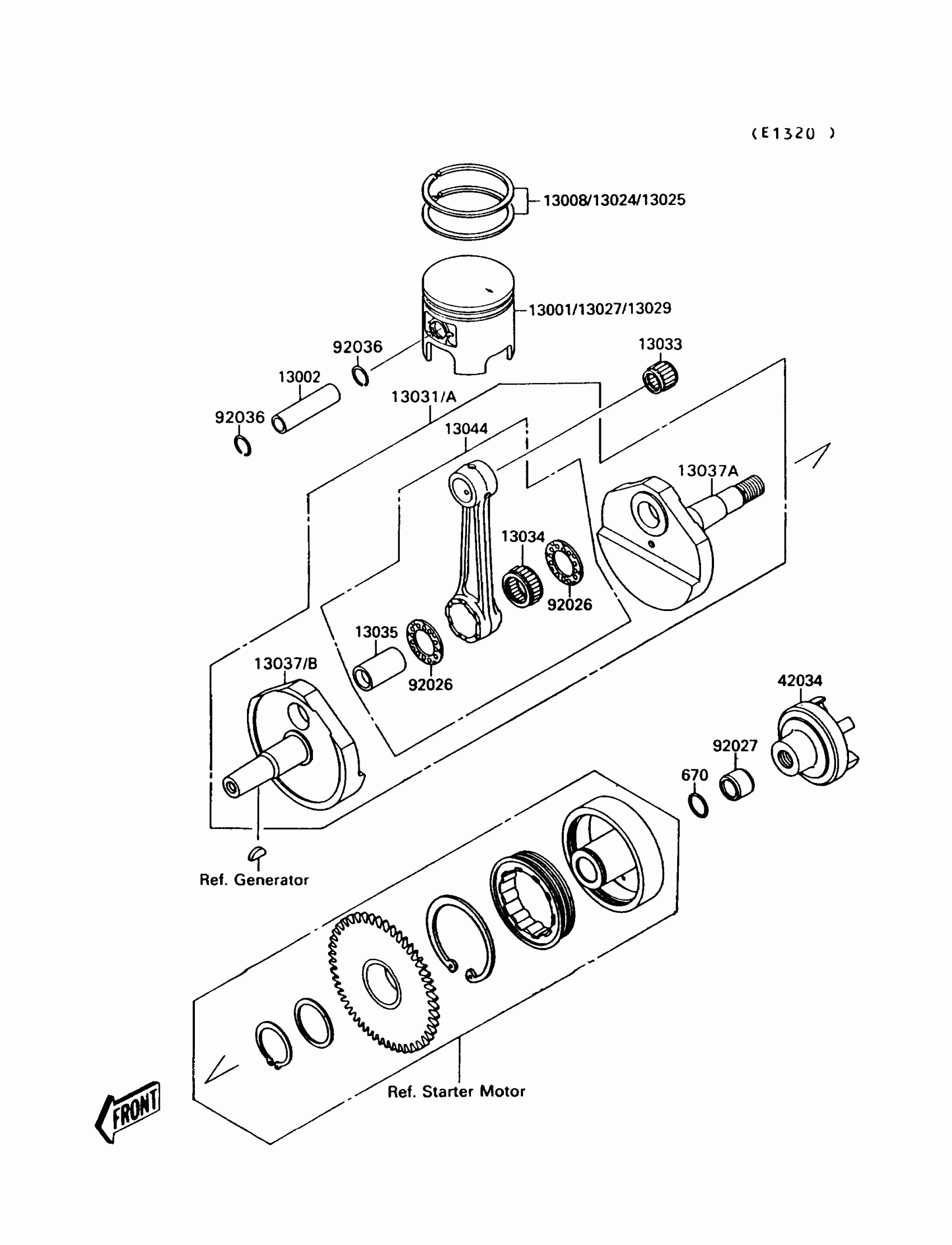

Find the part on the Crankshaft/piston diagram for your 1991 Kawasaki 300 SX, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1991 Kawasaki 300 SX Crankshaft/piston Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13001

PISTON-ENGINE

13001-3714

1
Out of stock

13002

PIN-PISTON

13002-017

1
Out of stock

13008

RING-SET-PISTON,STD

13008-3701

1
Out of stock

13024

RING-SET-PISTON LL,O/S 1.00

13024-5029

1
Out of stock

13025

RING-SET-PISTON L,O/S 0.50

13025-5030

1
Out of stock

13027

PISTON-ENGINE LL,O/S 1.00

13027-3703

1
Out of stock

13029

PISTON-ENGINE L,O/S 0.50

13029-3703

1
Out of stock

13031A

CRANKSHAFT-COMP

13031-3706

1
Out of stock

13033

BEARING-SMALL END

13033-1010

1

$23.08

In stock

13034

BEARING,BIG END NEEDL

13034-049

1
Out of stock

13035

PIN-CRANK

13035-3701

1
Out of stock

13037A

CRANKSHAFT,RR

13037-3706

1
Out of stock

13037B

CRANKSHAFT,FR

13037-3707

1
Out of stock

13044

SET-CONNECTING ROD

13044-5055

1
Out of stock

42034

COUPLING

42034-3705

1

$65.75

In stock

92026

SPACER

92026-3701

1
Out of stock

92027

COLLAR,19X25X24

92027-3701

1

$37.11

In stock

92036

CIRCLIP-PISTON PIN

92036-015

1

$3.93

In stock

670

O RING,14MM

670B2014

1

$1.08

In stock
