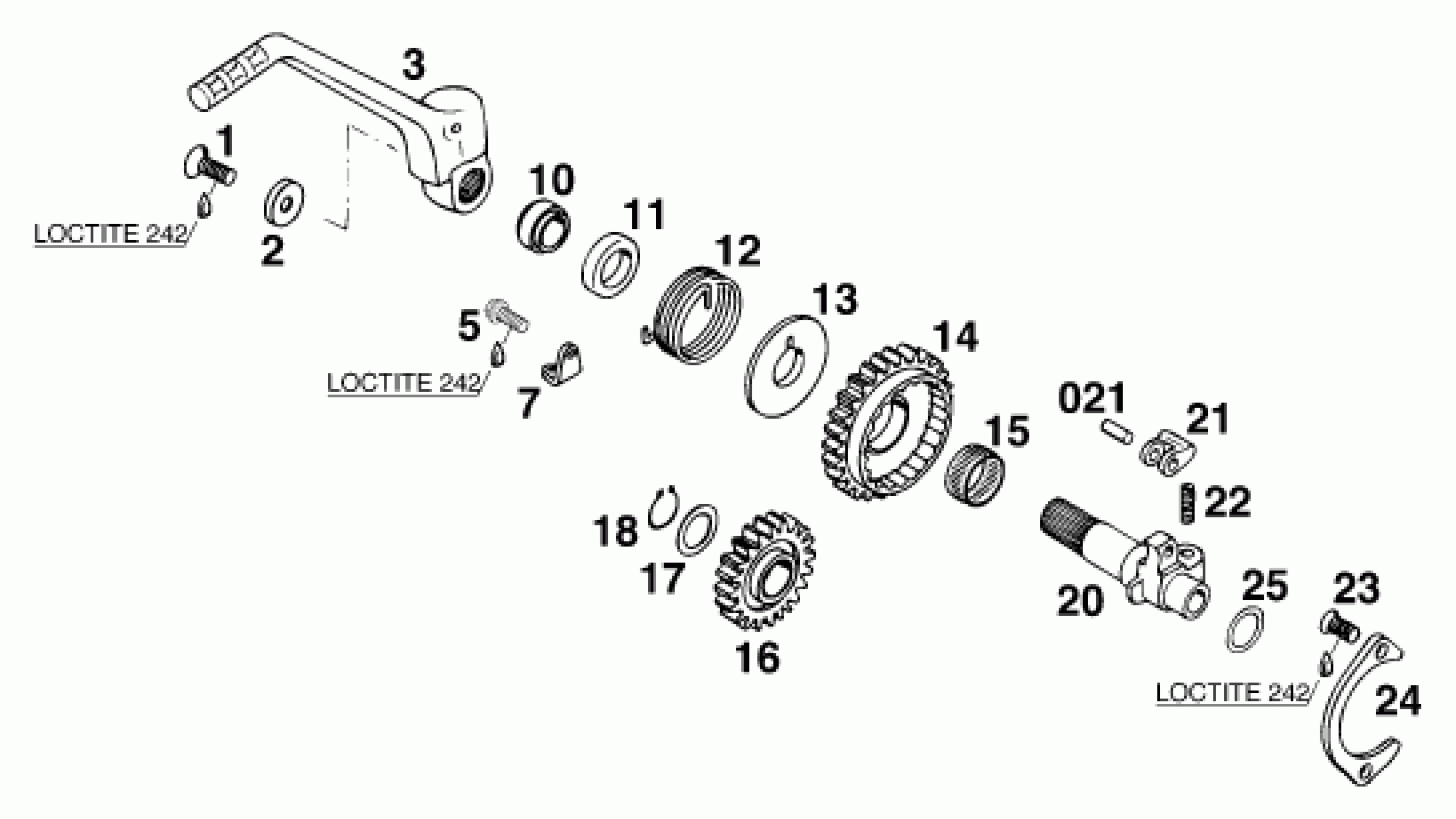

KTM 300 MXC M/Ö 13lt <1997> KICK STARTER Diagram

#

Description
Price

1

SPROCKET SCREW-AH M8X20 WS=6

54610052000

Unavailable

2

WASHER 8MM GALVANIZED

54633037000

Unavailable

3

KICKSTARTER CPL. 250/VI '92

54633036344

Unavailable

5

HH COLLAR SCREW M 6X16 WS=8

0015060163

Unavailable

7

SPRING HANGER

54633074000

Unavailable

10

SPACER BUSHING ZINC PLATED

54633038000

Unavailable

11

SHAFT SEAL RING 19X30X7 B

0760193070

Unavailable

12

KICKSTARTER SPRING

54633025000

Unavailable

13

DRIVING HUB

54633026000

Unavailable

14

KICKSTARTER GEAR 34 T MODUL

54633022000

Unavailable

15

NEEDLE BEARING K22X26X13H

56533098000

Unavailable

16

KICKST.INTERMEDIATE GEAR 24 T

54633024200

Unavailable

17

STOP DISK 17,2X25X1

54633090000

Unavailable

18

CIRCLIP DIN0471-17X1

0471170010

Unavailable

20

KICKSTARTER SHAFT

54633021200

Unavailable

21

NEEDLE ROLLER DIN5402 6X14,8

0402061480

Unavailable

21

LOCKING PAWL

54633023200

Unavailable

22

RATCHET SPRING

54633028200

Unavailable

23

FLAT HEAD SCREW DIN7991 M6x12

0991060123

Unavailable

24

RELEASE PLATE

54633027000

Unavailable

25

SHIM WASHER DIN0988-17X24X0,5

0988172405

Unavailable
