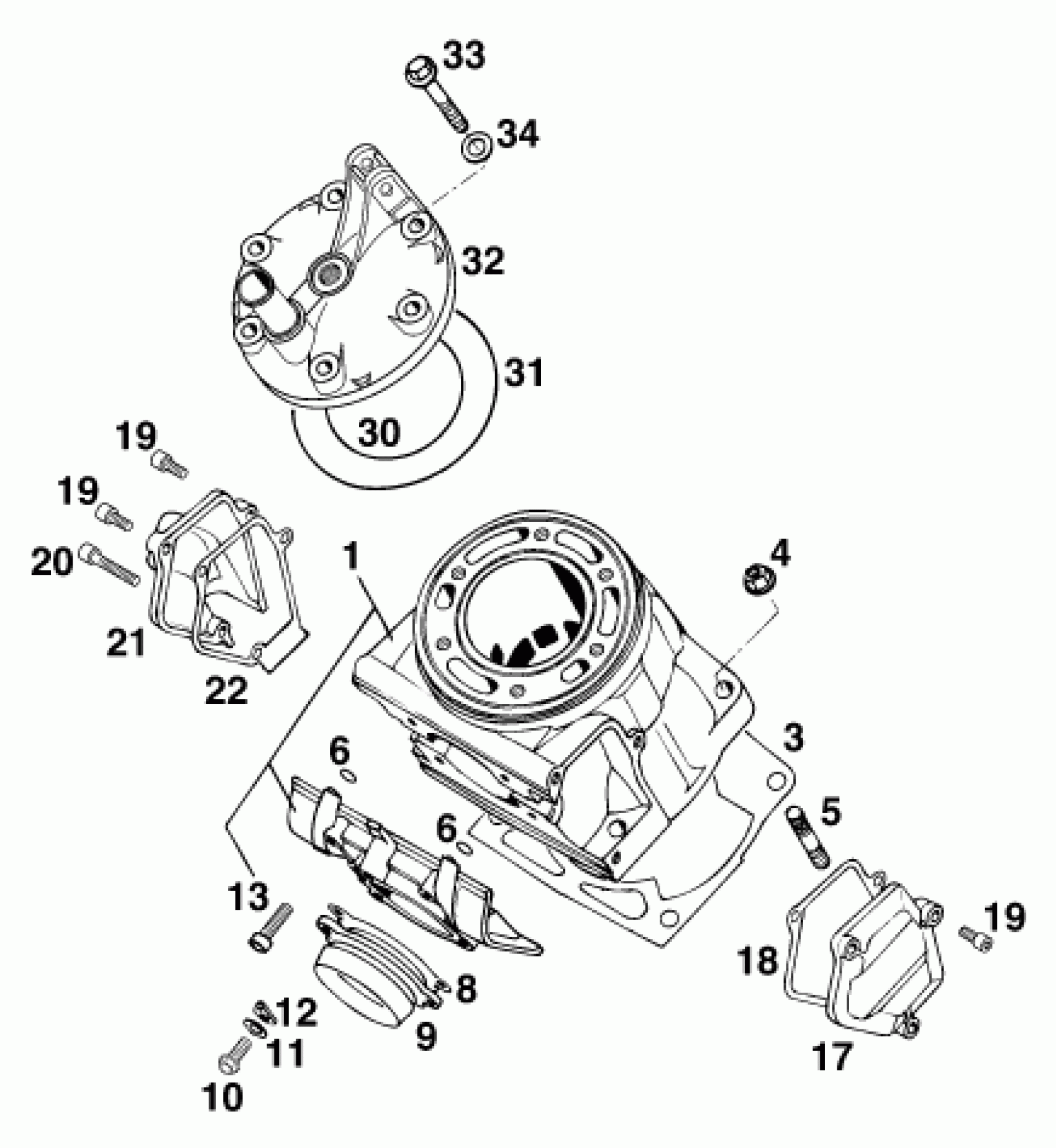

KTM 300 MXC M/Ö 13lt <1997> CYLINDER Diagram

#

Description
Price

1

% CYLINDER CPL.WITH FLANGE '96

54630105044

Unavailable

1

CYLINDER CPL.W.FLANGE 300CC'

54630405044

Unavailable

1

CYLINDER CPL.WI.FLANGE 360 '97

54730005144

Unavailable

3

CYLINDER BASE GASKET 0,15MM'96

54630030101

Unavailable

3

CYLINDER BASE GASKET 0,20MM'96

54630030102

Unavailable

3

CYLINDER BASE GASKET 0,50MM'96

54630030105

Unavailable

3

CYLINDER BASE GASKET 0,75MM'96

54630030107

Unavailable

4

COLLAR NUT M10 WS=13

54630044000

Unavailable

5

STUD DIN0835-M10X35

0835100351

Unavailable

5

STUD DIN0835-M10X40

0835100403

Unavailable

6

O-RING 11,3 X2,4 SILICON

0770116241

Unavailable

8

EXHAUST FLANGE GASKET

54630046000

Unavailable

9

EXHAUST FLANGE

54605073000

Unavailable

10

HH COLLAR SCREW M 6X16 WS=8

0015060163

Unavailable

11

SPRING WASHER DIN0137-B 6

0137060000

Unavailable

12

RETAINING PLATE

51005074000

Unavailable

13

AH SCREW DIN0912-M 6X30

0912060303

Unavailable

17

CONTROL COVER L/S

54637105000

Unavailable

18

GASKET FOR SIDE COVER

54637106000

Unavailable

19

AH SCREW DIN0912-M 5X12

0912050123

Unavailable

20

AH SCREW DIN0912-M 5X30

0912050303

Unavailable

21

CONTROL COVER R/S

54637005000

Unavailable

22

GASKET FOR CONTROL COVER

54637006100

Unavailable

30

0-RING 74,00X2,00 SILICONE

0770740021

Unavailable

30

0-RING 78,00X2,00 SILICON

0770780021

Unavailable

30

0-RING 84,00X2,00 SILICON

0770840021

Unavailable

31

O-RING 114,00X2,00 SILICONE

0770114020

Unavailable

32

CYLINDER HEAD ''2501'' 250'96

54630006600

Unavailable

32

CYLINDER HEAD "3001" 300'96

54630306600

Unavailable

32

*CYLIND. HEAD "3602"360/380'97

54730006100

Unavailable

33

HH COLLAR SCREW M 8X44 WS13

56530079000

Unavailable

34

CU-SEAL RING 8 X 16 X 1

56530080000

Unavailable
