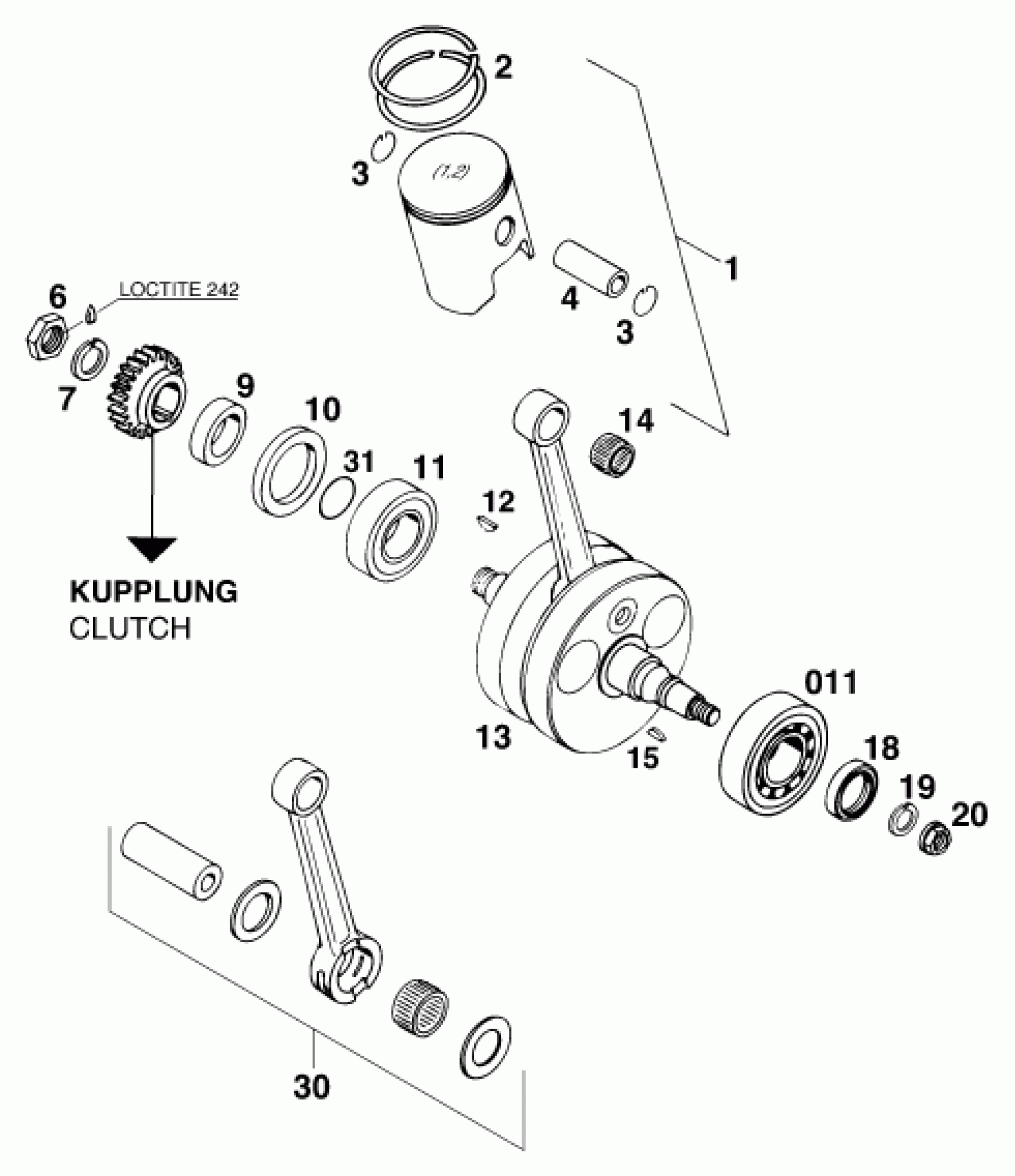

KTM 300 MXC M/Ö 13lt <1997> CRANKSHAFT, PISTON Diagram

#

Description
Price

1

PISTON CPL. 67,5MM 250 EGS SGP

54630007600

Unavailable

1

SERVICE TOOL H91

54630307400

Unavailable

1

KOLBEN 360 CC 78,O MM *

54730007000

Unavailable

2

SQUARE RING 67,5X1 250 CC

54630032000

Unavailable

2

SQUARE RING 72,0X1,25 300 CC

54630332000

Unavailable

2

SQUARE R. 78,0X1,25 360/380 CC

54730032000

Unavailable

3

WIRE LOCK RING SKA 18

54330074000

Unavailable

4

PISTON PIN 18 X 44

54630033000

Unavailable

4

PISTON PIN 18 X 48

54730033000

Unavailable

6

HEX.NUT L/SH M18X1,5

54630029000

Unavailable

7

LOCK WASHER VSK 18

58132072000

Unavailable

9

SPACER SLEEVE 28X38X11,5

54630016400

Unavailable

10

SHAFT SEAL RING 38X52X7BTSL

0760385273

Unavailable

11

BALL BEARING 62206.803107

0625622064

Unavailable

11

CYLIND.ROLL.BEARING

56530123100

Unavailable

12

WOODRUFF KEY DIN6888-5X6,5

0888050650

Unavailable

13

% CRANKSHAFT STROKE 69,5 "250"

54630018400

Unavailable

13

CRANKSHAFT STROKE 73 ''300''

54630318400

Unavailable

13

CRANKSHAFT HUB 74 "360"

54730018400

Unavailable

14

NEEDLE BEARING KBK 18X22X20

54430034000

Unavailable

15

WOODRUFF KEY DIN6888-3X5X13

0888030050

Unavailable

18

SHAFT SEAL RING 25X35X7 BTSL

0760253570

Unavailable

19

LOCKING RING VSK 12

50230029012

Unavailable

20

COLLAR NUT M12X1 R/S

49030021000

Unavailable

30

CONR.REP.KIT 250/300 132MM '96

54630015044

Unavailable

30

CONR.REP.KIT 360/380 135MM '97

54730015000

Unavailable

31

O-RING 25,00X1,50 NBR 70

0770250015

Unavailable
