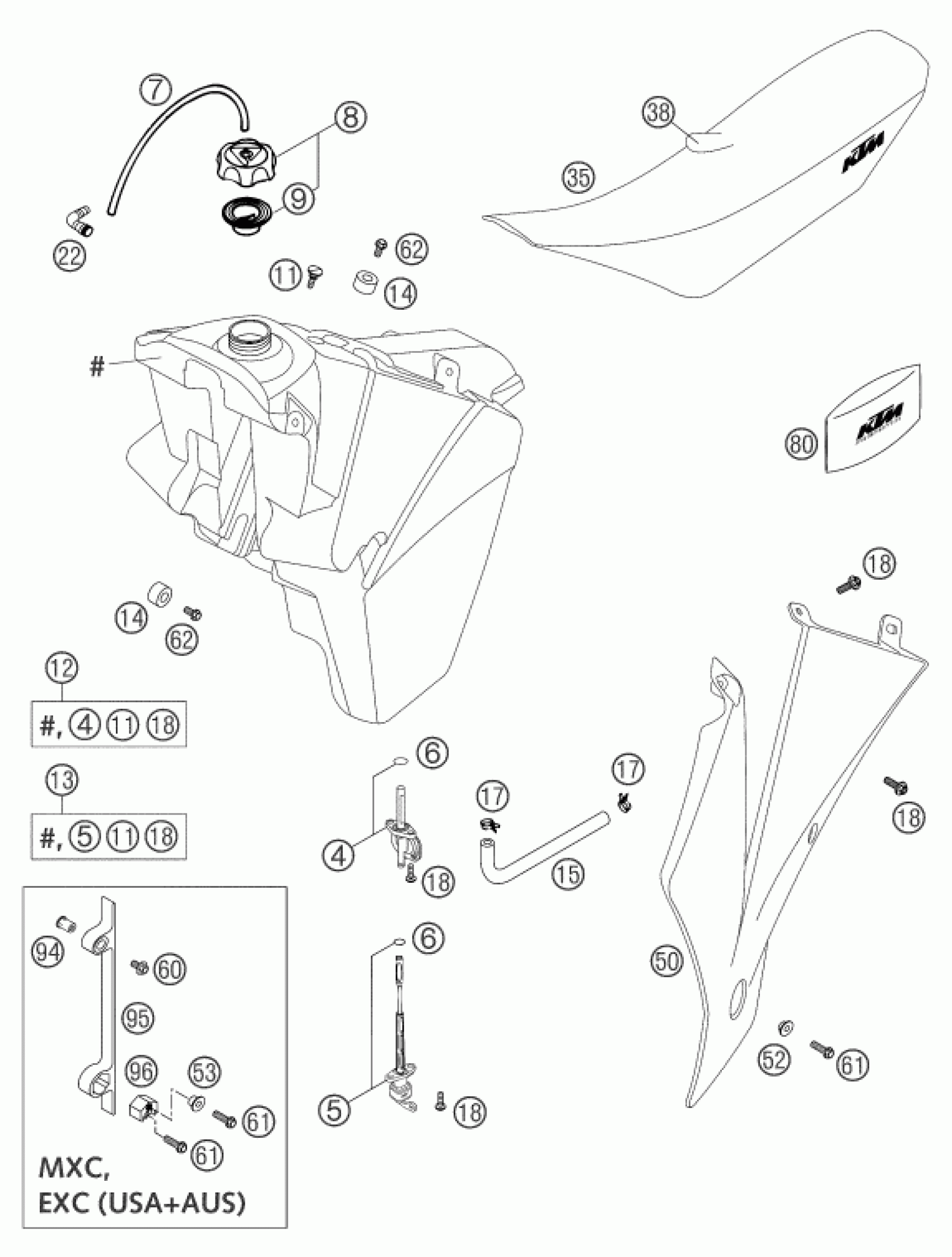

KTM 300 MXC 2004 TANK, SEAT Diagram

#

Description
Price

35

% SEAT HIGH

54807040100

Unavailable

38

SEAT COVER BLACK 03

54807040050

Unavailable

50

SPOILER L/S ORANGE SX 2001

5030815000004

Unavailable

4

GAS COCK MIKUNI ON/OFF 2001

50307005000

Unavailable

5

GAS COCK ON/OFF/RES 03

54807004000

Unavailable

6

O-RING 13,00X2,30

0770130023

Unavailable

6

O-RING 11X2 VITON

0770110021

Unavailable

7

PVC-HOSE 6X9 MM PER METER

31007107001

Unavailable

8

FILLER CAP CPL. WITH VALVE

59007008044

Unavailable

9

GASKET FOR FILLER CAP HIGH

59007009000

Unavailable

11

SCREW SEAT FASTENING D=6X23/18

50307011000

Unavailable

12

FUEL TANK CPL. 7,5L ORANGE 03

5480711300004

Unavailable

13

FUEL TANK CPL. 11L 03

5030711310044

Unavailable

13

FUEL TANK CPL. 9L 03

5030711320044

Unavailable

14

TANK ROLLER 12X26X12 '98

50307014000

Unavailable

15

FUEL PREFORMED HOSE SX 2001

50307016000

Unavailable

17

CLAMP YDNAC 10128 12MM

58031005000

Unavailable

18

EJOT PT SCREW K60X20 ALU WS=6

0017060204

Unavailable

22

ANGLE PIECE 90 DEGREE M10X1

51030022000

Unavailable

35

SEAT BLACK WITH KTM-LOGO 03

54807040000

Unavailable

18

EJOT PT SCREW K60X20 WS=6

0017060203

Unavailable

50

SPOILER R/S ORANGE SX 2001

5030815100004

Unavailable

52

BUSH FOR SPOILER 6X11X16X5 MM

50308052000

Unavailable

53

BUSH FOR SPOILER 6X11X16X7,5

50308053000

Unavailable

60

HH COLLAR SCREW M 6X10 WS=8

0014060103

Unavailable

61

HH COLLAR SCREW M 6X20 WS=8

0015060203

Unavailable

62

HH COLLAR SCREW M 6X12 WS=8

0015060123

Unavailable

80

ORIGINAL EQUIPMENT TOOL KIT

50212100100

Unavailable

94

BLIND RIVET NUT M 6X15,5 STEEL

55003139600

Unavailable

95

SPOILER ADAPTER '98

50335095000

Unavailable

96

TANK ADAPTER BUSH '98

50335096000

Unavailable
